Up-cut saw design provides fast and accurate cuts.
Fast cut rate allows up to 45 strokes per minute.
Stroke speed adjustable to fit your cutting requirements.
Large precision ground table and heavy gauge cabinet provide a stable work surface.
Precision ground arbor is supported by high quality bearings.
Conveniently positioned pneumatic foot-switch allows hands-free operation.
Easy cabinet access for adjustments and quick blade changing.
Saw blade included.
High quality blade included as an added value.
Built-in 4” dust port allows efficient dust management.
Magnetic controls for safer operation.
Powerful TEFC motor available in three-phase.
Optional in feed and out feed tables with stops and optional dual palm switch complete the high production package.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

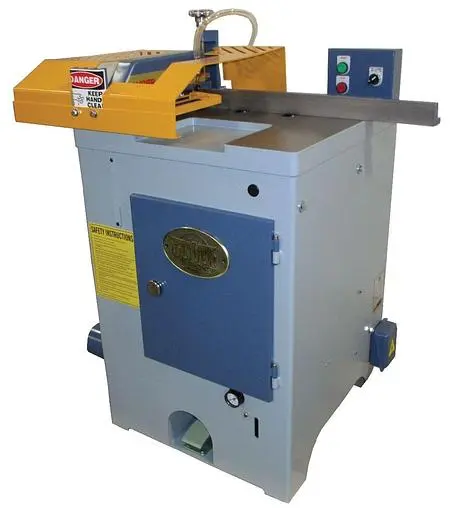

Model Number: 5018
Ph: 3Ph
Stock No. (7-1/2HP, 3Ph): 5018.002
Arbor Speed: 3600 RPM
Arbor Size: 1”
Blade Size: 18”
Cutting Capacity: 2" x 12", 3" x 11", 4" x 10"
Cycle Operation: Air
Table Size: 26” x 27 -1/2”
Table Height: 32-3/4"
Maximum Cycles Per Minute: 45
Dust Port: 4"
Minimum Dust Removal: 600 CFM
Main Motor: 18.4 amps @ 220V
Main Motor(3Ph): 7.5 HP, 3Ph 220/440V* Prewired 220V
Overall Dimensions: 31”L x 30”W x 51”H
Net Weight: 792 lbs.
Gross Weight: 903 lbs.
