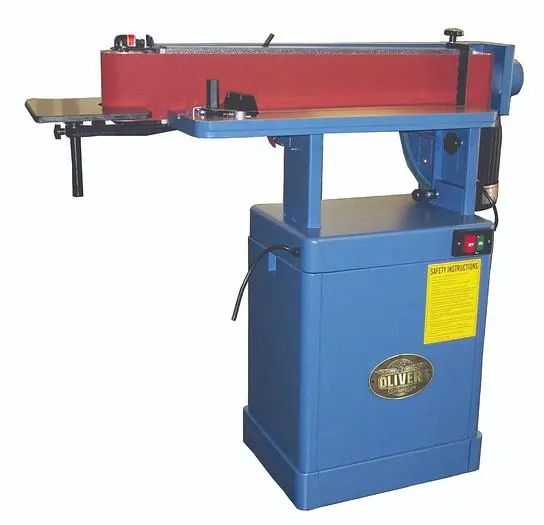

NEW OLIVER 6305

Can be used with the belt in the horizontal or vertical position or any angle in between.
Precision ground steel platen is graphite covered to reduce heat.
Cast iron table is vertically adjustable allowing full use of belt.
Belt tracking and tension are easy to adjust.
Full access to the belt allows quick replacement.
Adjustable end table is included allowing contour sanding applications.
Miter gauge is included for added value and increased versatility.
Full cabinet design provides a stable work station.
Built-in 4” dust port allows efficient dust management.
Industrial push button controls are located for easy control.
Powerful TEFC 1.5HP single phase motor.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Model Number: 6305
Table Length: 27”
Table Width: 10”
Table Material: Cast Iron
Belt Size: 6” x 89”
Belt Speed: 3,900 FPM
Front Table Size: 27” x 9.8”
Table Tilt: 90° to 180°
Table Height: 37-1/2” - 40-1/2
Dust Port Diameter: 4"
Motor: 1.5 HP, 1Ph 115/220V Prewired 115 (18/9 Amp)
Overall Dimensions: 48” x 21” x 48”
Net Weight: 247 lbs.
Gross Weight: 280 lbs
