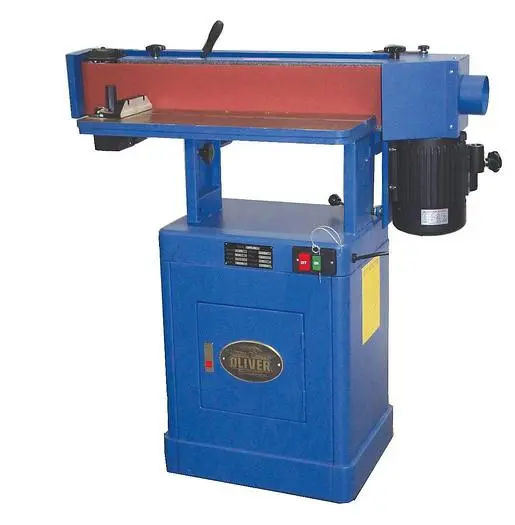

NEW OLIVER 6303

6” x 89” belt features oscillation action for a superior finish.
Belt operates at any angle between horizontal and vertical.
Easy belt changing and tracking adjustments.
Steel platen is graphite covered for reduced friction.
Contoured sanding possible with end table in place.
Tables are heavy cast iron and precision ground.
Tables adjust up and down for complete use of belt.
Main table slotted and includes a miter gauge.
Table fence included to assist in operation.
Heavy duty enclosed cabinet features a storage area.
Lockable on/off switch.
Powerful TEFC 1.5HP single phase motor.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Model Number: 6303
Table Material: Cast Iron
Main Table Size: 10” x 29-1/2”
End Table Size: 9-3/4” x 11-3/4”
Main Table Working Height: 38” - 41-1/2”
End Table Working Height: 37-1/2” - 42”
Belt Size: 6” x 89”
Belt Speed: 3,900 FPM
Oscillation Stroke: 1/2”
Fence Size: 3” x 23-1/2”
Dust Port Diameter: 4"
Minimum CFM Required: 650 CFM
Motor: 1.5HP 115/230V 1Ph Prewired 115V w/Plug (18/9 Amp)
Overall Dimensions: 50” x 24” x 49”
Net Weight: 247 lbs.
Gross Weight: 270 lbs.
