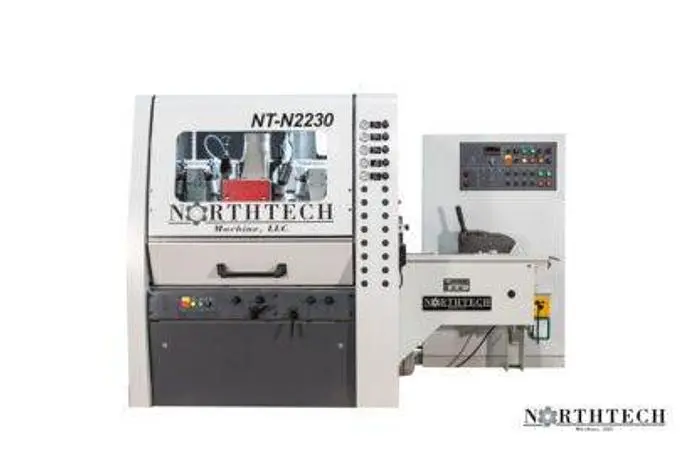

NT-N2230 MOULDER 2 HEAD

NT-N2230 MOULDER 2 HEAD
The NT N2230 is a specially designed 6″ x 9″ moulder. This 2 spindle machine is configured with a single top and bottom horizontal spindle. The elimination of vertical spindles allows for an industrial grade machine with a small footprint. Features such as chrome table, Siko mechanical readouts, automatic bed oiler and independent spindle motors powering 1-13/16″ 6000RPM Spindles are standard. There are a vast amount of optional features available making the N series is an excellent option to higher priced competitive models.
NT-N2230 MOULDER 2 HEAD
The NT N2230 is a specially designed 6″ x 9″ moulder. This 2 spindle machine is configured with a single top and bottom horizontal spindle. The elimination of vertical spindles allows for an industrial grade machine with a small footprint. Features such as chrome table, Siko mechanical readouts, automatic bed oiler and independent spindle motors powering 1-13/16″ 6000RPM Spindles are standard. There are a vast amount of optional features available making the N series is an excellent option to higher priced competitive models.

Machine hp: 33 HP
Reversible motor: Feed
Voltage, frequency: 230/460 Volt 60 Hz
Phase: 3 Phase
Amp requirement: 110-55 Amp
Configuration: B - T
1st spindle: 10 HP Bottom Horizontal
2nd spindle: 15 HP Top Horizontal
Spindle rpm: 6000 RPM
Under the nut capacity: 9-3/4''
Feed hp: 7.5 HP
Feed system: Knurled Feed Rollers / Polyurethane Rollers
Drive system: Gear Box / Carden Shaft
Feed speed range: 20-120 FPM
Variable feed speed: Inverter Controlled
