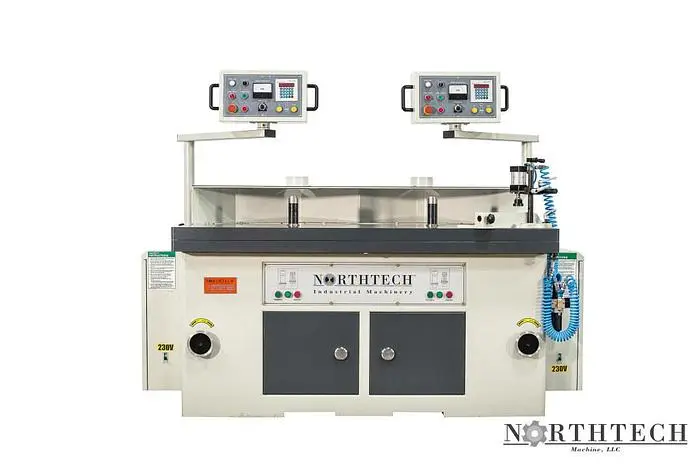

NT-2070S SHAPER

The NT-2070S is a double spindle shaper with a sliding table. The MK5 spindles can be changed to different diameters based on tooling needs. Each spindle is powered with a 10HP motor and has its own start/stop and elevation controls. This shaper is also designed with foot brakes and foot locks for each spindle. The heavy duty cast iron base and 38″x62″ table provide a solid platform for large part processing. Controls are integrated into the cabinet for a smaller footprint and convenient location.
The NT-2070S is a double spindle shaper with a sliding table. The MK5 spindles can be changed to different diameters based on tooling needs. Each spindle is powered with a 10HP motor and has its own start/stop and elevation controls. This shaper is also designed with foot brakes and foot locks for each spindle. The heavy duty cast iron base and 38″x62″ table provide a solid platform for large part processing. Controls are integrated into the cabinet for a smaller footprint and convenient location.

Machine hp: (2) 10 HP
Voltage, frequency: 230/460 Volt 60Hz
Phase: 3 Phase
Amp requirement: 50/25 Amps
Spindle length: 6''
Spindle diameter: 1-1/4''
Spindle rpm: 3000, 4500, 6000, 9500 RPM
Elevation style: Manual Wheel
Elevation system: Quill Housing / Jack Screw
Approved electrical parts: CE Approved Parts
Dual voltage motors: 230/460 Volt
Control voltage: 110 Volt
Pass-line: 35-1/2''
Vertical travel: 6'' on Spindle
Dust collection requirement: 681 CFM @ Extraction Points
