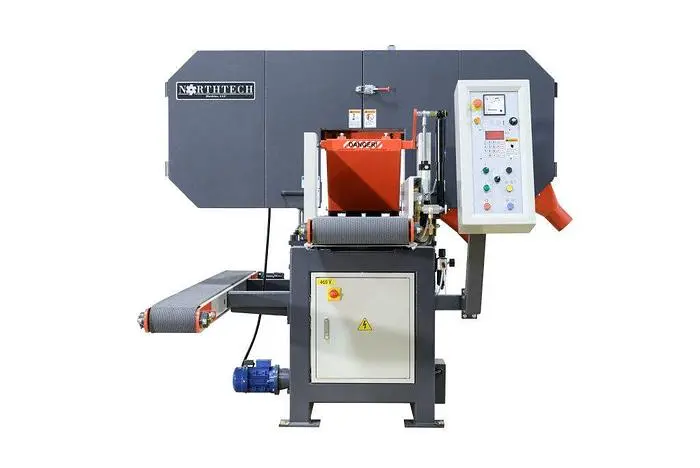

NT-HBR16PB HORIZONTAL BAND RESAW WITH POWERED RETURN

The Northtech HBR16PB is our 16″ horizontal resaw. This machine has a 16″x10″ cut capacity, digital thickness control, 2×28″ band wheels, powered return conveyor and a heavy-duty steel frame for multiple shift operation for a functional simplicity that makes it easy to operate. The variable speed feed mat has pneumatic infeed and pneumatic outfeed hold downs to provide a wide variety of capability and reliability.
The Northtech HBR16PB is our 16″ horizontal resaw. This machine has a 16″x10″ cut capacity, digital thickness control, 2×28″ band wheels, powered return conveyor and a heavy-duty steel frame for multiple shift operation for a functional simplicity that makes it easy to operate. The variable speed feed mat has pneumatic infeed and pneumatic outfeed hold downs to provide a wide variety of capability and reliability.

Main motor hp: 30 HP
Voltage, frequency: 230/460 Volt 60 Hz
Phase: 3 Phase
Amp requirement: 80 / 40 Amps
Feed hp: 3 Hp Hydraulic Pump
Feed system: Hydraulic Motor Feed Mat
Drive system: Hydraulic Pump 3 HP
Feed speed range: 0-34 FPM
Variable feed speed: Hydraulic Metering Valve
Elevation hp: 3/4 HP
Elevation style: 2 Post Jack Screw
Elevation system: Motor Gearbox Jack Screw
Total machine hp: 33-3/4 HP
Approved electrical parts: CE Approved Parts
Dual voltage motors: 230/460 Volt
