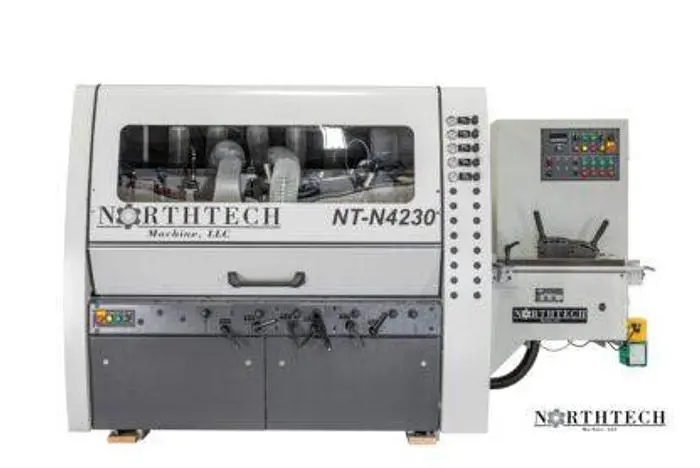

NT-N4230 MOULDER 4 HEAD

NT-N4230 MOULDER 4 HEAD
The NT N4230 is our standard 4 head N series machine. The 6″ x 9″ capacity moulder with a standard 4 head configuration provides excellent S4S and simple profiled mouldings. Features such as chrome table, Siko mechanical readouts, automatic bed oiler and independent motors powering 1-13/16″ 6000RPM spindles are standard. There are a vast amount of optional features available making the N series is an excellent option to higher priced competitive models.
NT-N4230 MOULDER 4 HEAD
The NT N4230 is our standard 4 head N series machine. The 6″ x 9″ capacity moulder with a standard 4 head configuration provides excellent S4S and simple profiled mouldings. Features such as chrome table, Siko mechanical readouts, automatic bed oiler and independent motors powering 1-13/16″ 6000RPM spindles are standard. There are a vast amount of optional features available making the N series is an excellent option to higher priced competitive models.

Machine hp: 43 HP
Voltage, frequency: 230/460 Volt 60HZ
Phase: 3 Phase
Amp requirement: 228/114 Amps
Configuration: B-R-L-T
1st spindle: Bottom Horizontal 10HP 6,000RPM
2nd spindle: Right Vertical 10HP 6,000RPM
3rd spindle: Left Vertical 10HP 6,000RPM
4th spindle: Top Horizontal 15HP 6,000RPM
Spindle diameter: 1-13/16''
Spindle rpm: 6000 RPM
Under the nut capacity: Horizontal 10'' Vertical 7"
Feed hp: 7.5 HP
Feed system: Knurled and Urethane Rollers
Drive system: Carden Shaft
