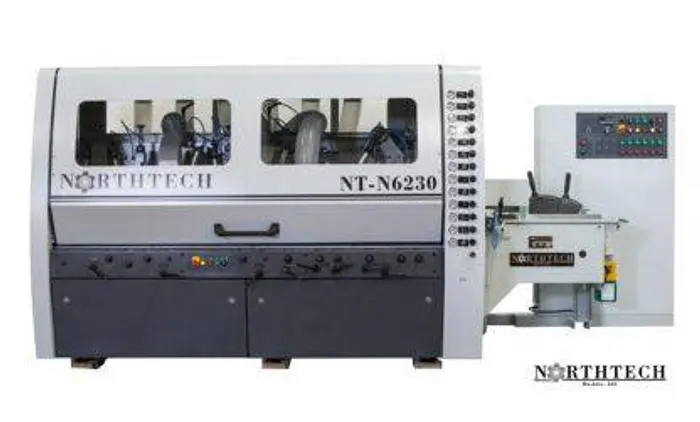

NT-N6230 MOULDER 6 HEAD

NT-N6230 MOULDER 6 HEAD
The NT N6230 is quite possibly the best valued moulder available. The 6″ x 9″ capacity moulder with a standard 6 head configuration provides limitless profiling possibilities. Features such as chrome table, Siko mechanical readouts, automatic bed oiler and independent spindle motors powering 1-13/16″ 6000RPM Spindles are standard. There are a vast amount of optional features available making the N series is an excellent option to higher priced competitive models.
NT-N6230 MOULDER 6 HEAD
The NT N6230 is quite possibly the best valued moulder available. The 6″ x 9″ capacity moulder with a standard 6 head configuration provides limitless profiling possibilities. Features such as chrome table, Siko mechanical readouts, automatic bed oiler and independent spindle motors powering 1-13/16″ 6000RPM Spindles are standard. There are a vast amount of optional features available making the N series is an excellent option to higher priced competitive models.

Machine hp: 88 HP
Voltage, frequency: 230/460 Volt 60HZ
Phase: 3 Phase
Amp requirement: 210/105 Amps
Configuration: B-R-L-T-T-B
1st spindle: Bottom Horizontal 10 HP 6000 RPM
2nd spindle: Right Vertical 10HP 6,000 RPM
3rd spindle: Left Vertical 10HP 6,000 RPM
4th spindle: Top Horizontal 15HP 6,000 RPM
5th spindle: Top Horizontal 15HP 6,000 RPM
6th spindle: Bottom Horizontal 10 HP 6,000 RPM
Spindle diameter: 1-13/16''
Spindle rpm: 6000 RPM
Under the nut capacity: 10-1/2'' Horizontal 7-1/2'' Vertical
Feed hp: 7.5 HP
