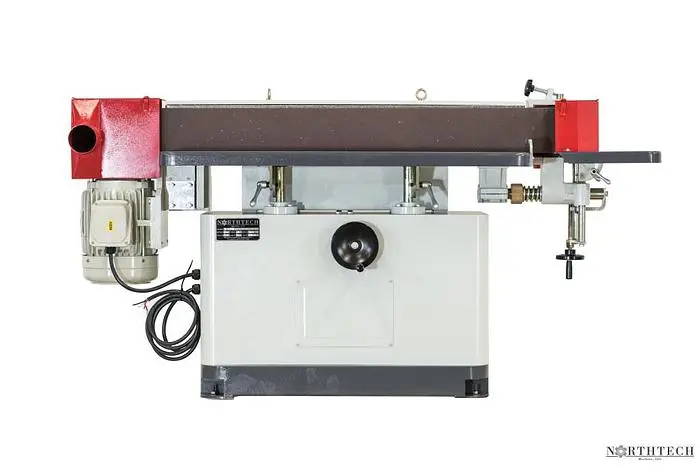

Northtech offers a large family of industrial grade edge sanders. The NT-ES648DE is a compact edge sander with that has a 6″x48″ sanding area on both sides of the machine along with an end table for smaller and contoured sanding work. Edge Sanders with double side tables can have a centrally located control station that allows for machine start/stop from both sides. Chrome side tables are tiltable to 45 degrees and are on a gear driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy duty cast iron frame provides a vibration free base and heavy stock removal capability.
Northtech offers a large family of industrial grade edge sanders. The NT-ES648DE is a compact edge sander with that has a 6″x48″ sanding area on both sides of the machine along with an end table for smaller and contoured sanding work. Edge Sanders with double side tables can have a centrally located control station that allows for machine start/stop from both sides. Chrome side tables are tiltable to 45 degrees and are on a gear driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy duty cast iron frame provides a vibration free base and heavy stock removal capability.
Machine hp: 7.5 HP
Direct drive (motor): Yes
Voltage, frequency: 230/460 Volt 60Hz
Phase: 3 Phase
Amp requirement: 20 / 10 Amps
Elevation style: Manual Wheel Adjustment
Elevation system: (2) Post Jack Screw
Total machine hp: 10 HP
Approved electrical parts: CE Approved Parts
Dual voltage motors: 230/460 Volt
Control voltage: 24 Volt
Pass-line: 31-1/2'' Down 35-3/4'' Up
Max. working length: 48''
Max. working thickness: 6''
Sandpaper size: 6'' x 141''
