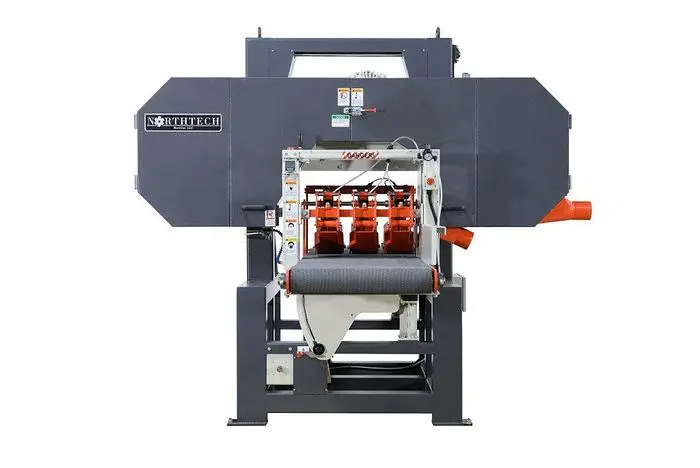

NT-HBR24PBXT HORIZONTAL BAND RESAW WITH POWERED RETURN WITH TILT
Overview
Description
The Northtech HBR24PBXT is our 24″ horizontal resaw. This machine has a 24″x8″ cut capacity, digital thickness control, 2×28″ band wheels, powered return conveyor, a heavy-duty steel frame and tilt for multiple shift operation for a functional simplicity that makes it easy to operate. The variable speed feed mat has pneumatic infeed and pneumatic outfeed hold downs to provide a wide variety of capability and reliability.
The Northtech HBR24PBXT is our 24″ horizontal resaw. This machine has a 24″x8″ cut capacity, digital thickness control, 2×28″ band wheels, powered return conveyor, a heavy-duty steel frame and tilt for multiple shift operation for a functional simplicity that makes it easy to operate. The variable speed feed mat has pneumatic infeed and pneumatic outfeed hold downs to provide a wide variety of capability and reliability.
Specifications
Main motor hp: 30 HP
Voltage, frequency: 230/460 Volt 60 Hz
Phase: 3 Phase
Amp requirement: 78 / 39 Amps
Feed hp: 2 HP
Feed system: 23'' Feed Mat
Drive system: 2 HP Motor Gearbox Feed Mat
Feed speed range: 0-105 FPM
Variable feed speed: Inverter Controlled
Elevation hp: 1/4 HP
Elevation style: CH525 Digital Controller
Elevation system: 2 Post Jack Screw
Total machine hp: 32-1/4 HP
Approved electrical parts: CE Approved Parts
Dual voltage motors: 230/460 Volt
