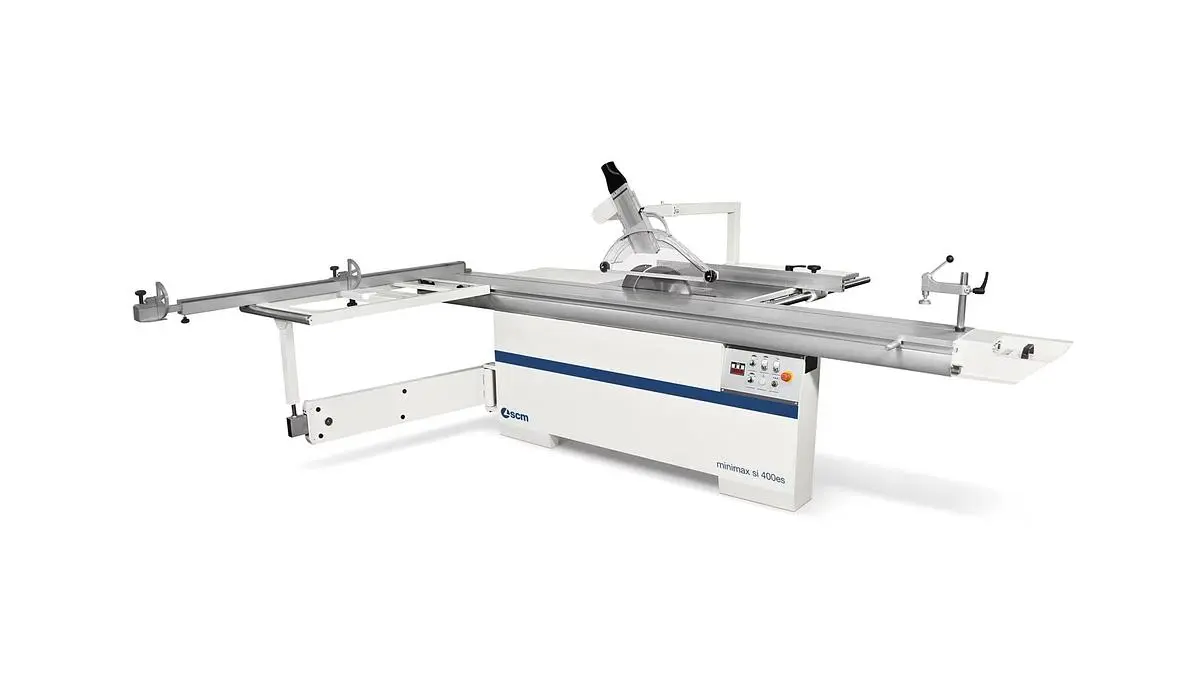

Circular saw with tilting blade with professional performances, for a quality without compromises.
Advantages

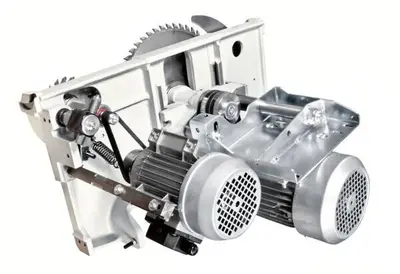

The rotation fulcrums of the saw unit have a 120 mm diameter and stand on steady crescent shaped rests that separate it from the base: a rigid reliable solution.
Optimal support also to larger pieces, with the sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence with the inclined metric scale and two reversible stops can be used to square panels measuring 3200 x 3200 mm and for miter cuts at up to 45° on both sides of the frame.
Wide range of high-tech devices to make your Elite S even more powerful and personalized, like the start/stop pushbuttons for the main blade and scoring blade integrated in the sliding carriage; very useful when machining large dimensioned work pieces that prevent an easy and safe access tothe main machine control panel.
Technical dataTechnical data minimax si 400es
si 400es Max. sawblade diametermm400Max. sawblade projection from table at 90°/45°mm138/98Cutting widh on parallel fencemm1270Squaring strokemm2600 ÷ 3200Three-phase motors starting fromkW/Hz5 (6) / 50 (60)
Max. sawblade diameter: 400 mm
Max. sawblade projection from table at 90°/45°: 138/98 mm
Cutting widh on parallel fence: 1270 mm
Squaring stroke: 2600 ÷ 3200
Three-phase motors starting from: 5 (6) / 50 (60) kW/Hz
