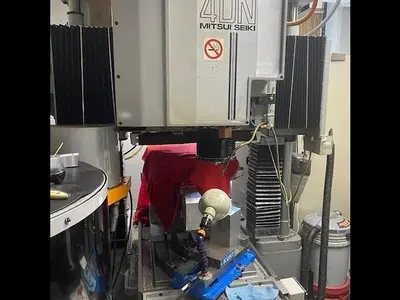

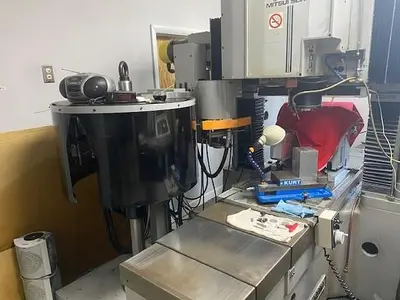

USED MITSUI SEIKI 4DN 4-AXIS CNC JIG BORER

Mitsui Seiki 4DN 4-axis Cnc Jig Borer

MITSUI SEIKI 4DN SUPER PRECISION 4-AXIS CNC JIG BORER( AND MILLING) WITH TOOL CHANGER

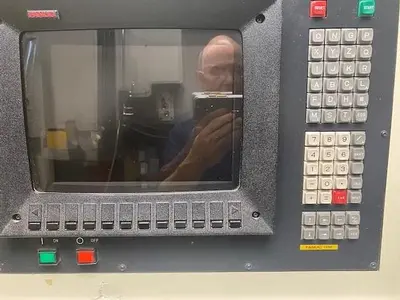

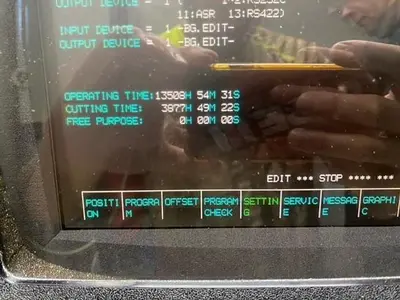

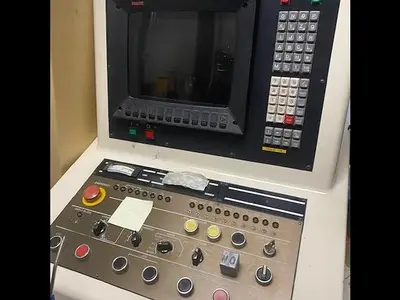

Fanuc 11M
Table travel (longitudinal) X 24"
Spindle head travel (traverse) Y 16"
Cross-rail vertical travel 18"
Distance max. from table top to spindle nose 24"
Tee slot (distance x No. of slots) 100 x 4
Rapid traverse speed X 5000 mm/min.
Maximum permissible load on table 750 kg
Rapid traverse speed Y 5000mm/min.
Vertical traveling speed 500 mm/min.
Spindle speed range 40 - 500 RPM
Rapid traverse speed Z 3000 mm/min.
Milling speed 1 - 2000 mm/min.
Maximum drilling capacity on diameter 1-1/4"mm
Maximum boring capacity on diameter 130mm
Maximum diameter of milling cutter used 100mm
Min. Resolution Positioning Accuracy:
Machine Dimensions: Length 2566mm, Width 1919mm, Height 2356mm
16 Position automatic tool changer
12" 4th Axis rotary table
