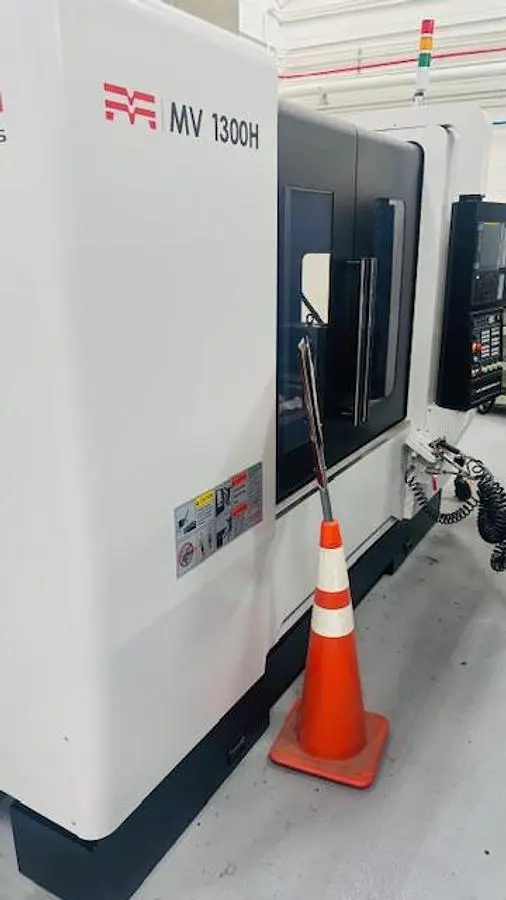

USED 2022 METHODS MV1300H

The 2022 Methods MV1300H is a Vertical Machining Center that features a Fanuc 0i-MF PLUS Control system with a 10.4-inch display. Despite being classified as used, the machine has never been utilized, keeping it in pristine condition. This high-performance unit is equipped with a 15,000 RPM oil-air lubricated direct drive spindle, featuring a Big Plus CAT40 taper. The spindle is powered by a Fanuc Alpha series 30HP motor, with prepped coolant through capability, spindle oil chiller, and thermal compensation.

This machining center boasts a respectable travel range with an X-axis travel of 51.1 inches (1300 mm), Y-axis travel of 24 inches (610 mm), and Z-axis travel of 23.6 inches (600 mm). It comes with a robust 32-tool automatic tool changer with dual swing arm and chain type mechanics, capable of handling heavy tools. The machine is equipped with advanced features including helical interpolation, rigid tapping, and is pre-wired for a 4th axis, enhancing its versatility.

Additional features ensure efficient operation, such as double-anchored pretensioned ballscrews, oil lubrication system, and dual chip augers. The machine has full enclosure splash guards, work lights, and a dust-proof electrical cabinet for safety and maintenance ease. Moreover, the MV1300H includes Renishaw spindle probing and Tsudakoma rotary options, catering to high precision and complex machining tasks. This unit is suitable for industries requiring precise and reliable operations with the support of comprehensive machine management tools.

2022 Methods MV1300H High Performance Machining Center Fanuc 0i-MF Control
Note: Machine was never used, Like Brand New

Standard Specifications

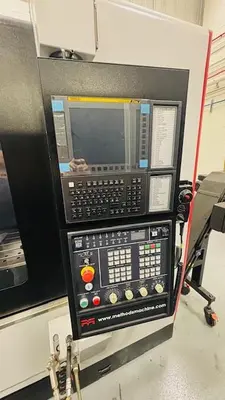

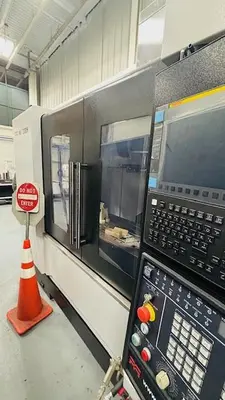

• Fanuc 0i-MF PLUS Control with 10.4’’ Display
• Includes Manual Guide I, AICC II 200 block look ahead, 1MB of Part Program Storage, 400 tool offsets,
Custom Macro B, Helical Interpolation, Rigid tapping, Ethernet port w/ 100Mbps, USB port, PCMCIA card
slot & RS232C port
• 15,000RPM Oil-Air Lubricated Direct Drive Spindle Big Plus CAT40 Taper
• Fanuc Alpha series 30HP Motor w/ 1000pis Coolant Thru Prep & Coupling

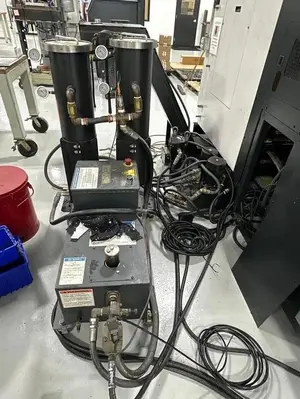

• Spindle Oil Chiller, Spindle Air Dryer & Thermal Compensation
• 32 Tool Dual Swing Arm, Chain Type ATC with Big Tool and Heavy Tool functions
• Pre-wired for 4th axis
• 2MB Memory Standard
• Double anchor pretensioned ballscrews
• X-Axis 1300mm/51.1", Y-Axis 610mm/24", Z-Axis 600mm/23.6"
• Z-Axis Box Way with Turcite B
• X, Y-Axis Linear Roller Guides
• X/Y/Z Rapid Travel at 1890/1890/945 In/Min (48/48/24 M/Min)
• Automatic oil lubrication system with gravity waste-oil recovery tank
• Chain/Hinge type chip conveyor 41”/1050mm discharge height
• Dual chip augers
• 3 Spindle coolant nozzles
• 4 Spindle coolant ring nozzles
• 2 Spindle air blast nozzles
• Coolant chip flush wash down
• Coolant flush gun
• Fully enclosed splash guard
• Dust-proof electrical cabinet with Heat Exchanger
• Remote manual pulse generator (MPG) hand-wheel
• Extra set of 8 M-Code functions (4 on 4 off)
• Auto power off
• Interior work lights
• 3-color signal light
• Air Gun
• Tool Kit
• Methods Safety Spec (CE Mark Modified)
• Machine Operating Manual & Control Manual (CD)

X-AXIS • ROLLER GUIDEWAYS
X-Axis Travel inches (mm) 51.1 (1,300)
X-Axis Rapid Traverse in/min (m)/min 1890 (48)
X-Axis Encoder Resolution - 4 million pulse

Spindle Speed 15,000 RPM
Spindle Type BIG-PLUS CAT-40 Taper
Spindle Power

20HP (15Kw) Cont.
25HP (18.5kW) 30min
30HP (22kW) 15min

Spindle Torque

76 ft-lb (102Nm) Cont.
93 ft-lb (126Nm) 30min
111 ft-lb (150Nm) 15min
Spindle Base Speed 1,400 RPM
Spindle Lube Oil / Air
Spindle Cooling Oil Chiller
Spindle Bearings 70mm Ceramic/Angular (6)

TABLE
Table Dimensions inches (mm) 55.9” x 23.6" (1,420 x 600)
Spindle Nose to Table Surface inches (mm) 3.3” ~ 27” (85 ~ 685)
Spindle Center to Column Surface inches (mm) 25.8” (655)
T-Slot Width inches (mm) .708” (18)
NO. of T-Slots Qty 5
Distance Between T-Slots inches (mm) 3.937” (100)
Maximum Load lbs. (kg) 2,205 (1000)
DIMENSIONS / WEIGHT / CAPACITIES (Subject to change slightly)
Floor Space ~ With Chip Conveyor inches (mm) 178.5” x 102.1” (4535 x 2595)
Weight lbs. (kg) 17,637 (8,000)
Maximum Machine Height inches (mm) 123.62” (3141)
Coolant Tank Capacity gal. (liters) 122 (460)
Power Capacity KVA/AMP 25/100
Air Source PSI (Bar) 87 (6)

X-Axis Motor Fanuc α22i
X-Axis HP HP 5.4 (4)
X-Axis Ball Screw Class - C3
X-Axis Ball Screw Diameter inches (mm) 1.57 (40)
Y-AXIS • ROLLER GUIDEWAYS
Y-Axis Travel inches (mm) 24 (610)
Y-Axis Rapid Traverse in/min (m)/min 1890 (48)
Y-Axis Encoder Resolution - 4 million pulse
Y-Axis Motor Fanuc α22i
Y-Axis HP HP 5.4 (4)
Y-Axis Ball Screw Class - C3
Y-Axis Ball Screw Diameter inches (mm) 1.57 (40)
Z-AXIS • BOXWAYS
Z-Axis Travel inches (mm) 23.6 (600)
Z-Axis Rapid Traverse in/min (m)/min 945 (24)
Z-Axis Encoder Resolution - 4 million pulse
Z-Axis Motor Fanuc α22Bi
Z-Axis HP HP 5.4 (4)
Z-Axis Ball Screw Class - C3
Z-Axis Ball Screw Diameter inches (mm) 1.57 (40)
ATC
Tool Changer - Dual Swing Arm Type
Maximum Number of Tools - 32
Pull Stud - ISO CAT40 A Type
Maximum Tool Weight lbs. (kg) 15.4 (7)
Maximum Tool Length inches (mm) 11.8 (300)
Maximum Tool Diameter inches (mm) 3 (76)
Maximum Tool Dia. - No Adjacent Tool inches (mm) 4.9 (125)
Tool Changing Time - Tool to Tool sec 1.8
Tool Holder - Big Plus/CAT40

Extra Feutures:

Renishaw RMP400 Spindle Probe – 1⁄2 AA RTS Tool Setter Hardware Kit
RMP400 & RTS 1/2 AA Probe Kit, Optical Receiver w/bracket,
50/100mm Styli, CAT 40 Shank, 2” Calibration Ring
Part Program Storage 2MB Included
Tsudakoma RBS-250R Fanuc
Fanuc Motor (A06B-0227-B000) A8i/TS, PVC Cables
Tailstock TS210M, Koma (factory installation)
Tool Holder Certificate
Lubricants Package
