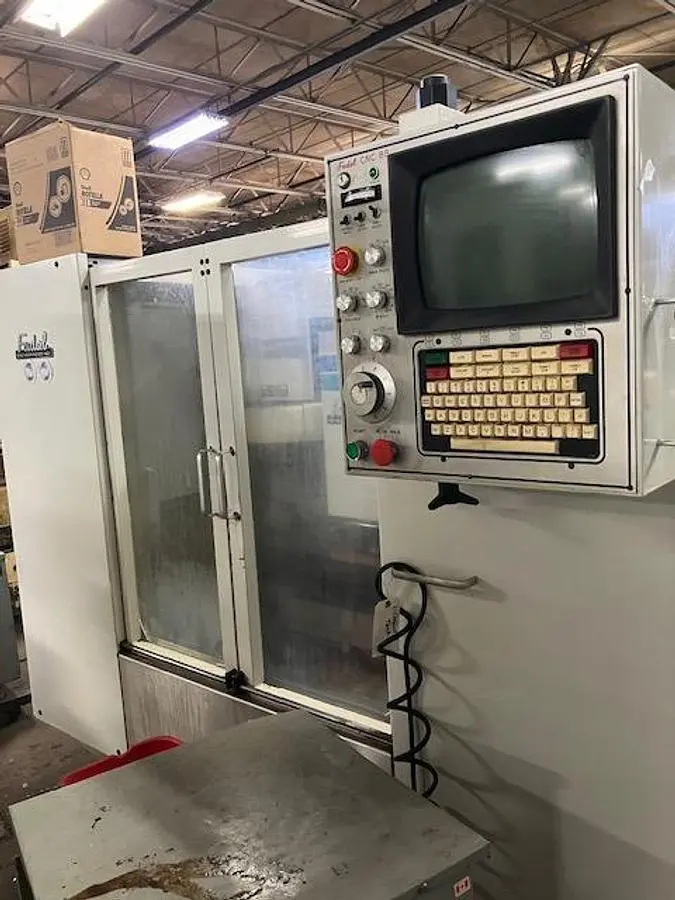

USED 1990 FADAL VM40

FADAL VERTICAL MACHINING CENTER

MODEL: VMC 40 904-1
S/N: 9003031
YEAR: 1990
TRAVELS
22″ LONGITUDINAL (X AXIS)
16″ CROSS (Y AXIS)
20″ VERTICAL (Z AXIS)
400 IPM RAPID FEED RATE (X, Y, Z)
16″ SPINDLE CENTER TO COLUMN
4″ MIN. – 24″ MAX. SPINDLE TO TABLE
21 AUTOMATIC TOOL CHANGER
ATC, TOOL SELECTION – RANDOM
750 LBS. MAX WEIGHT ON TABLE

EQUIPPED WITH

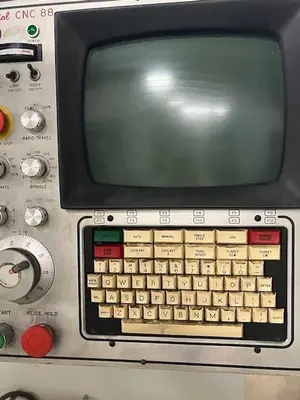

FADAL CNC 88 CONTROL
VOLTAGE 230 V / 3 PHASE / 60HZ / 40 AMP
FULL ENCLOSURE
COOLANT TANK
TOOL STATION: 21
CONTROL: CNC 88
SPINDLE TAPER: CAT 40
MOTOR: 230 VAC / 3 PHASE, 60 HZ
FULL LOAD CURRENT: 40 AMP
AMPERAGE RATING OF LARGEST AC MOTOR: 25 AMP
SHORT CIRCUIT INTERRUPTING CAPACITY: 200 KA
