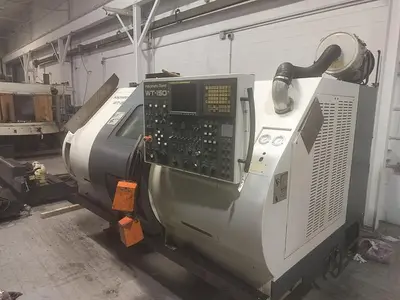

USED 2003 NAKAMURA-TOME WT-150S

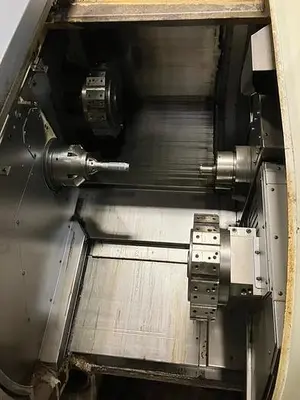

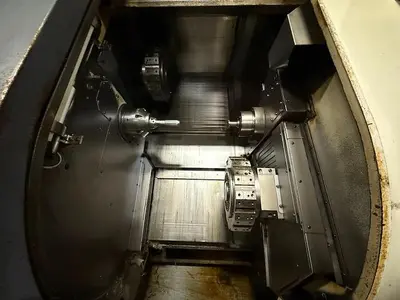

The 2003 Nakamura-Tome WT-150S CNC lathe is a robust and reliable choice for precision machining tasks. Operated through the advanced Fanuc 18i-TB CNC control system, it ensures high accuracy and productivity. The machine is equipped with dual spindles featuring a spindle nose of A2-5, spindle bores of 2.48 inches, and a maximum RPM of 5,000, supported by a spindle drive of 20 HP on the left and 15 HP on the right. The machine has a maximum bar capacity of 2.047 inches and can handle workpiece swing diameters up to 7.488 inches.

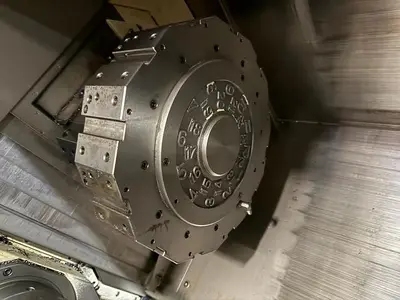

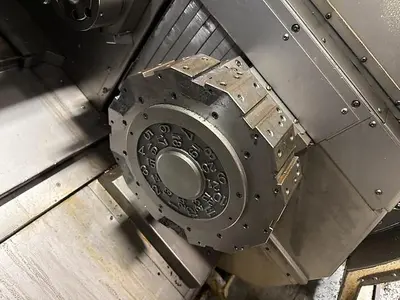

It offers a substantial turning capacity with a maximum turning length of 19.8 inches. There are two turrets, each accommodating 12 stations, with travel dimensions of 6.201 inches (X) and 18.30 inches (Z) for the upper turret and 6.59 inches (X) and 18.3 inches (Z) for the lower. Additionally, the upper turret supports Y-axis movements of +/- 1.375 inches, while rapid traverse rates can reach 629.9 IPM in X and 1,574 IPM in Z directions, contributing to efficient part production.

Accessories include a chip conveyor and a complete coolant system with a tank and pumps. This used machine is in good condition, offering excellent functionality for your machining needs. Available for purchase at $12,000 each or $29,000 for all three units, it represents a valuable investment for businesses requiring high-precision, high-capacity machinery

2003 Nakamura Tome WT-150S 3 Machines available……..


Condition
Used
Year
2003
Machine control

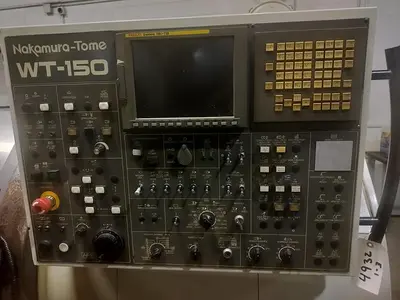

Fanuc 18i-TB CNC Control
Distance between spindle centers
29.528" Max
Spindle nose(s)
A2-5
Spindle bores
2.48"
Max bar capacity
2.047"
Spindle speeds
5,000 Max RPM
Spindle drive(s)
20 HP Left / 15 HP Right

Max workpiece swing diameter
7.488" Max Turning Diameter
Max turning diameter
7.488"
Max turning length
19.8"
Number of turrets
2 - Upper and Lower
Turret capacity
(2) 12 Station Turrets
Turret 1 travels (x/z)
6.201" / 18.30"
Slide travel y (upper turret)
+/- 1.375"
Turret 2 travels (x/z)
6.59" X / 18.3" Z

Rapid traverse rates
629.9 IPM X / 1,574 IPM Z
B-axis travel (right spindle)
21.65"
Fanuc Series 18i-TB CNC Control,   Chip Conveyor, Complete Coolant System with Tank and Pumps.
sub spindle
