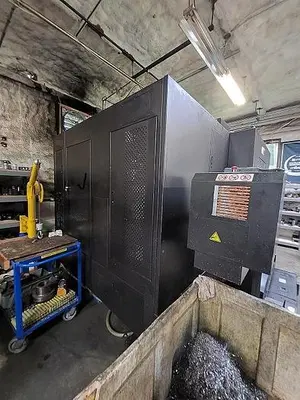

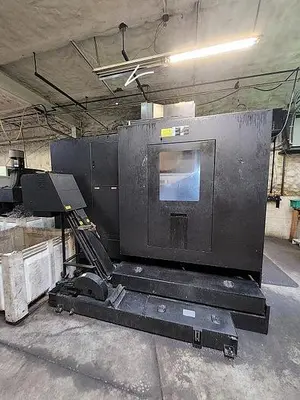

USED 2017 YCM NSA 102A

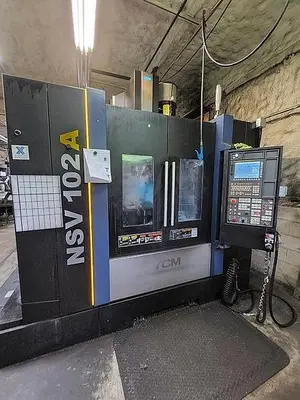

YCM NSV 102A 4th5th Axis VMC 2017


STANDARD FEATURES
POWERFUL 40 HP (30KW) BBT-40 TAPER SPINDLE
HIGH SPEED 30 TOOL SWING-ARM ATC SYSTEM
HIGH PRECISION CERAMIC SPINDLE BEARINGS
RANDOM ACCESS & BI-DIRECTIONAL ATC MAGAZINE
IDD SPINDLE DESIGN WITH 15,000 RPM MAXIMUM
200 BLOCKS LOOK AHEAD, 2MS PROCESSING SPEED
40” X 23.6” X 23.6” TRAVELS
AI NANO CONTOUR CONTROL WITH ANTI JERK FUNCTION
2,363 IPM RAPIDS ON X,Y / 1G ACC/DEC IN ALL AXES
AC DIGITAL SERVO & SPINDLE DRIVES VECTOR HRV3
PRE-TENSIONED DOUBLE NUT BALLSCREWS
ABSOLUTE ENCODERS W/ 1 MILLIONTHS PLUS RESOLUTION
ULTRA RIGID ROLLER LINEAR GUIDES WAY ON X,Y,Z
1280 METER OF MEMORY W/ 100MPS ETHERNET FUNCTION
AUTOMATIC LUBRICATION SYSTEM
PCMCIA SLOT FOR MEMORY EXPANSION & MODEM
99 GAL COOLANT SYSTEM
10.4” LCD MONITOR W/ DYNAMIC GRAPHIC DISPLAY
(2) Y AXIS AND (1) X- AXIS CHIP EVACUATION AUGERS
MANUAL GUIDE I CONVERSATIONAL SOFTWARE
SPINDLE AIR CURTAIN & CUTTING AIR BLAST
MACRO B & SKIP FUNCTION
SPINDLE COOLING SYSTEM / CHILLER
HIGH SPEED RIGID TAPPING & HELICAL INTERPOLATION
COOLANT GUN
3-D DYNAMIC TOOL PATH GRAPHICS
HIGH QUALITY & RUGGED MEEHANITEÒ CASTINGS


BASIC SPECIFICATIONS
HEADSTOCK
     Motor                                                                       αiIT15/15000 +αiSP37 AC Digital Spindle Motor
     Horsepower                                    40HP (205NM) Fanuc Motor
     Maximum Speed                                                      15,000 rpm
     Spindle Drive                                                           IDD-Isolated Direct Drive Motor
     Spindle Nose to Table                                         3.94” ~ 27.56”
     Spindle Center to Z-axis Way Cover                  26.3”

TABLE
     Size                                                                        44.16” x 25.59”
     T-Slots                                                                   6 x 0.71” x 3.94”
     Maximum Load                                                     2,205 lbs

DETAILED SPECIFICATIONS
HEADSTOCK
            Spindle Motor                                               αiIT15/15000 +αiSP37 Digital Spindle Motor
            Optional Horsepower                       (40 HP 205NM) αiIT15/15000 +αiSP37 Motor
            Spindle Drive                                                 Isolated Direct Drive Motor
            RPM Range                                                    100 ~ 15,000 rpm
            Spindle Bearing Type                                  Angular Contact Ceramic Bearings
       Bearing Class                                                     ABEC Class 7 (P4A)
            Spindle Taper Hardness / Material             HRC62 ± 1.5° / SCM21
            Spindle Draw Bar Type                                Collet Style
            Retention System                                         Helical Disc Spring
            Holding Force                                               2,100 ~ 2,700 lbs.
            Counter Balance                                           G1
            Spindle Orientation                                      Built-in Positioning Encoder
            Spindle Nose to Table                                  3.94” ~ 27.56”
            Spindle Center to Z-axis Way Cover          35.43”

TABLE
            Dimensions:
                        Length                                                44”
                        Width                                                  25.59”
                        T-Slots                                               6 x 0.71” x 3.93”
            Maximum Table Load                                   2,205 lbs.
            Height from Floor                                         35.43”


AUTOMATIC TOOL CHANGER
            Changer                                                         Dual Swing Arm Type
            Tool Change Time                                        1.2 Seconds (tool to tool)
                                                                                    3.4 seconds (chip to chip)
            Maximum Tool Weight                                 13.2 lbs.
            Maximum ATC Weight                                 330 lbs.
            Maximum Tool Length                                 11.8”
            Magazine Tool Selection                              Bi-directional, Random Access
            Maximum Diameter of Tools
                                    Adjacent Pocket Tooled       2.99”
                                    Adjacent Pocket Empty       4.9”
            Maximum Number of Tools                         30 (48/60 optional)
            Tool Shank                                                    BBT-40 (CAT-40 optional)
            Air Requirements                                          85 psi Minimum

X AXIS
            Ballscrew:      Diameter                                1.77”
                                    Class                                      JIS C3
                                    Pitch                                       0.787” (20mm)
            Feed Rate:     Rapid Traverse                     2,363 ipm
                                    Cutting Feed Rate                 0.04 ~ 787 ipm
            Travel:                                                            40.16”
            Accuracy:      Linear Positioning                ± 0.00012”      (JIS 6338)
                                    Repeatability                         ± 0.00008”      (JIS 6338)
            Horse Power                                                 6.03 HP
            Thrust Force:              Rated                        1,740 lbf.
            Thrust Force:              Max                           6,026 lbf.




Y AXIS
            Ballscrew:      Diameter                                1.77”
                                    Class                                      JIS C3
                                    Pitch                                       0.787” (20mm)
            Feed Rate:     Rapid Traverse                     2,363 ipm
                                    Cutting Feed Rate                 0.04 ~ 787 ipm
            Travel:                                                            23.6”
            Accuracy:      Linear Positioning                ± 0.00012”      (JIS 6338)
                                    Repeatability                         ± 0.00008”      (JIS 6338)
            Horse Power                                                 5.4 HP
            Thrust Force:              Rated                        1,740 lbf.
            Thrust Force:              Max                           6,026 lbf.
Z AXIS
            Ballscrew:      Diameter                                1.77”
                                    Class                                      JIS C3
                                    Pitch                                       0.787” (20mm)
            Feed Rate:     Rapid Traverse                     1,890 ipm
                                    Cutting Feed Rate                 0.04 ~ 787 ipm
            Travel:                                                            23.6”
            Accuracy:      Linear Positioning                ± 0.00012”      (JIS 6338)
                                    Repeatability                         ± 0.00008”      (JIS 6338)
            Horse Power                                                 7.4 HP
            Thrust Force: Rated                                      2,378 lbs.
                                    Maximum                               7,766 lbs.
General
     Machine Net Weight                                                               15,4342 lbs.
   Coolant Tank Capacity                                       99 US/Gallons
     Shipping Weight                           (17,306 lbs.) + (639 lbs., Side Cover) + (573 lbs., Coolant Tank)
     Power Consumption                                                               36kVA (40kVA)
   Breaker Size                                                    150 A
  Air Requirements                                                85 psi


ACCESSORIES
Standard
Option
l   TSC Prep No Union
l   Automatic Door
l   Tool Kit
l   Linear Scale
l   Pilot Lamp, Work Lamp
l   STC Plus
l   Coolant Gun /Air Gun
l   Chip Conveyor
l   Oil skimmer
l   Chips Flush Coolant System
l   Guide way Cover on X/Y/Z
l   Oil-mist Coolant System
l   (2) Y and (1) X-Axis Chip Augers
l   Oil-mist Collector
l   Spindle Air Blast
l   Shower Coolant System
l   Cutting Air Blast
l   A/C Cooler for Electrical Cabinet
l   Spindle Air Seal
l   Coolant Through Spindle System
l   Spindle Cooling System
l   4th Axis Rotary Table
l   Full Chip Enclosure
l   Heavy Duty Coolant Pump
l   Leveling Blocks and Bolts
l   Work piece Measurement System
l   Heat Exchanger for Electrical Cabinet
l   Auto Tool Length Measurement System
l   Mechanical, Electrical & Operating Manuals (CD)
l   HEIDENHAIN iTNC-530 Control

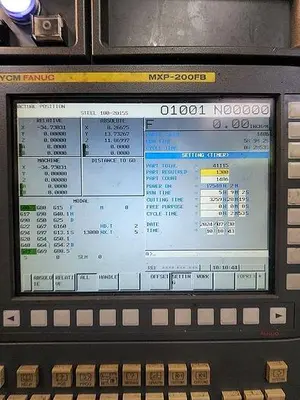

MXP-200FB SPECIFICATIONS
I OPERATION PLUS SOFTWARE ENHANCEMENT EXCLUSIVELY FROM YCM
HIGH PERFORMANCE AC DIGITAL SERVO & SPINDLE DRIVES
HIGH RESPONSIVE VECTOR DRIVES with ABSOLUTE POSITIONING ENCODERS
HIGH RESOLUTION 10.4" LCD MONITOR
AI CONTOUR CONTROL II WITH ANTI JERK FUNCTION, 200 BLOCK LOOK AHEAD, 2MS PROCESSING SPEED
CUSTOM MACRO B & SKIP FUNCTION
BIG & DOUBLE SCREEN DISPLAY ANIMATION FOR MANUAL GUIDE i SOFTWARE
USB MEMORY INPUT/OUTPUT with 1,280 METERS (512K BYTE) MEMORY
RS 232C INTERFACE & ETHERNET CONNECTION
HIGH SPEED RIGID TAPPING
ADDITIONAL WORK & TOOL OFFSETS
PCMCIA EXPANSION SLOT
POWER FAILURE MODULE
