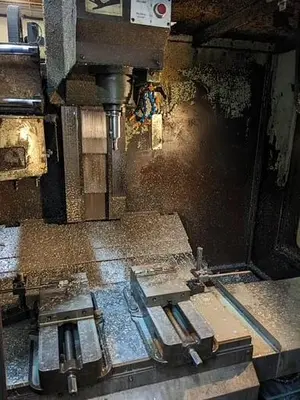

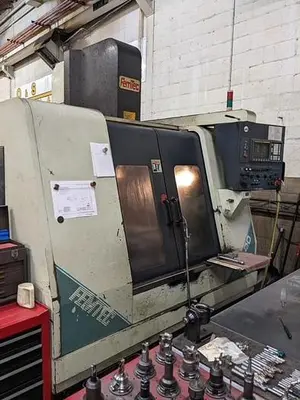

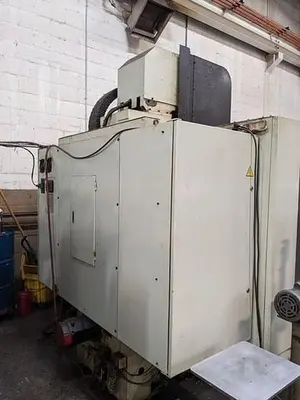

USED 1999 FEMCO FV-20

Femco Vertical Machining Center Femtec FV 20 1999
S/N V9901011

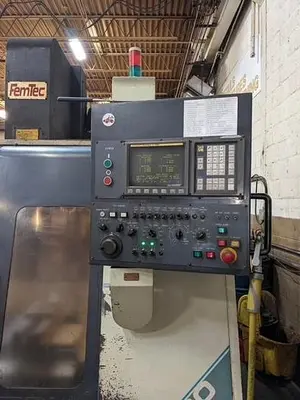

Fanuc OM Control


Femco Vertical Machining Center Femtec FV 20 Features:
RS-232 Port.
cat40 Spindle Taper.
20-Station Automatic Tool Changer.
Coolant System.
Coolant tank
Centralized Lubrication System.
Femco Vertical Machining Center Femtec FV 20 Specifications:
Travels:
X-Axis: 25″
Y-Axis: 20″
Z-Axis: 20″
Table:
Table Dimensions: 31-1/2″ x 18″
T-Slots (number x width x distance between centers): 5 x 0.71″ x 3″
Spindle:
Taper: CAT40
Speed: 6,000 RPM (approx.)
Spindle Center to Column: 20″
Automatic Tool Changer:
Tool Capacity: 20
General:
Machine Weight: 9,000 lbs.
Electrical: 220 Volt, Three Phase
Overall Dimensions: 90″ x 105″ x 105″ tall
