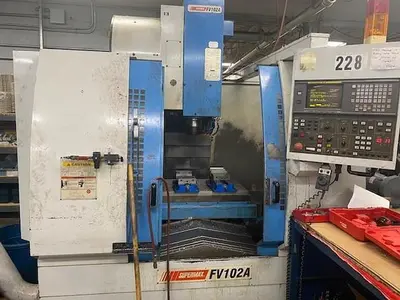

USED 2001 YCM SUPERMAX FV 102A

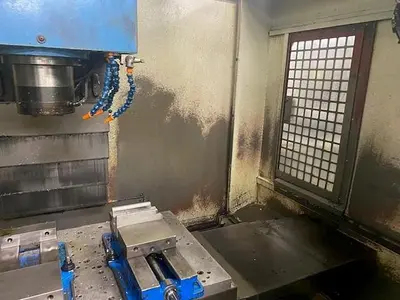

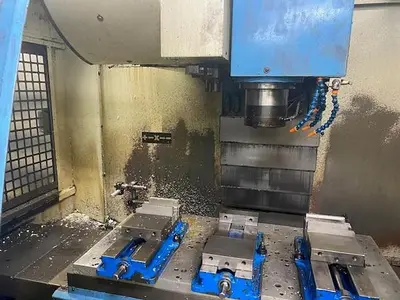

The YCM Supermax FV 102A is a reliable vertical machining center designed for precision and efficiency. This used model, manufactured in 2001, remains in good condition. It features a sturdy table with dimensions of 20.4″ x 44″, offering a generous space for various machining tasks and a weight capacity of 1,100 lbs. The machine provides X, Y, and Z-axis travels of 40″, 20.4″, and 21.2″, respectively, allowing for versatile processing capabilities.

Equipped with a Fanuc 18M CNC control, the FV 102A enables precise machining operations and ease of use. It features a spindle with a CAT 40 taper that operates at speeds ranging from 45 to 10,000 rpm, powered by a 10/20hp motor. This model supports high-speed rigid tapping and is enhanced with heavy-duty ceramic spindle bearings for durability and optimal performance.

Additional features include a spindle chiller, an oil skimmer, and a comprehensive coolant system with a 63-gallon capacity, ensuring sustained operations and reduced thermal expansion. The machine also has a swing-arm tool changer with 24-tool capacity for convenient tool management. Coupled with rugged Meehanite castings and THK linear guides, the YCM Supermax FV 102A is a robust option for industries requiring precision machining capabilities.

YCM Supermax-FV 102A
YCI Supermax YCM FV 102A Vertical Machining Center

Manufacturer: YCI
Model: FV-102A
Year: 2001
Condition: Good

Specifications:
Table size                                                                  20.4″x44″
Table capacity                                                           1,100lbs
Traveles:
X-axis                                                                     40″
Y-axis                                                                     20.4″
Z-axis                                                                      21.2″
Spindle nose to table top                                           4.7″ – 25.9″
Spindle center to column front                                  22.8″
Spindle taper                                                             CAT 40
Spindle speeds                                                          45 – 10,000rpm
Main Motor                                                               10/20hp
Electrics                                                                    220v/3/60
LxDxH                                                                      114″x136″x115″
machine weight; approximate                                   11,800lbs.


Equipped With:

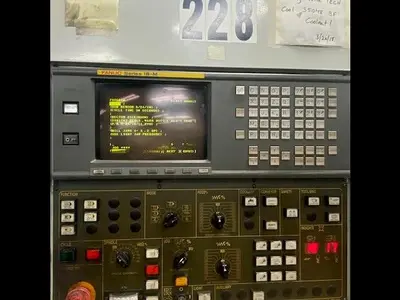

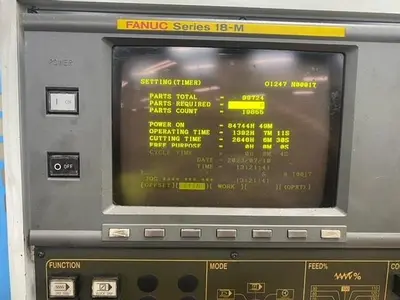

Fanuc 18M CNC control
Powerful 20HP Spindle output
Heavy Duty Ceramic Spindle Bearings
10,000Rpm Max Spindle Speed
High Speed Rigid Tapping
Absolute Positioning Encoder Servo Motor
Full Alphanumeric Keyboard
Cutting Air Blast
Spindle Air Curtain
Hand-Held Coolant Gun

High Speed 24 Tool Swing-Arm
Random Access & Bi-DirecLionalTool Mag
RS 232C Interface
63 Gal High Efficient Coolant System
THK®  New NR Type Linear Guide on XYZ
Rugged Meehanite Castings
Full Chip  Coolant Guards
Spindle Chiller
Oil Skimmer
