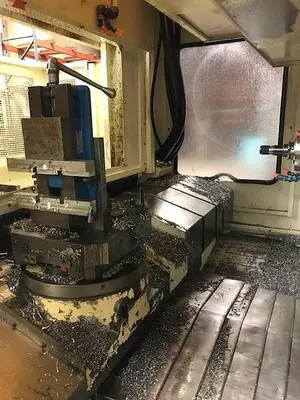

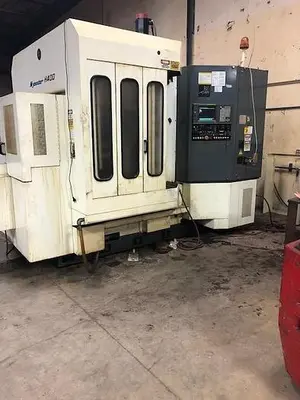

USED 1999 KITAMURA H400

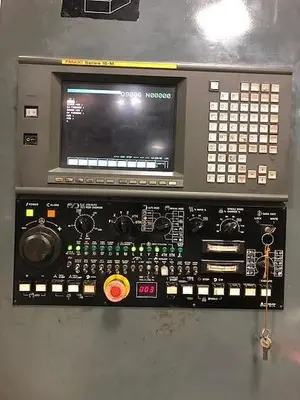

1999 Kitamura H400 Fanuc 15M

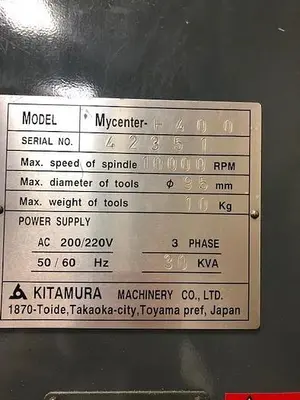

S/N 42351
Pallet Size / Number of Pallets  15.7" x15.7" / 2 plt
X-Axis Travel     24.02"
Y-Axis Travel     20.08"
Z-Axis Travel     20.08"
Pallet Indexing .001 Degree Index
Maximum Pallet Load   880 lbs.
Spindle Taper   BT # 40
Spindle Speed  20 to 10,000 RPM
Spindle Motor  20 HP
Spindle Nose to Table Top          2" - 21.8"
Number of Tool Positions            100 Position ATC
Pallet Change Time        10 seconds
Rapid Traverse Rates     949 IPM
Tool Change Time           1.7 seconds
Machine Dimensions L x W x H  15' x 8' x 10'
Machine Weight              22,000 lbs.

Equiped with
100 Position Toolchanger
1 degree indexing
Coolant Through Spindle
9.5" Color Monitor
Rigid Tapping
RS 232 Port Interface

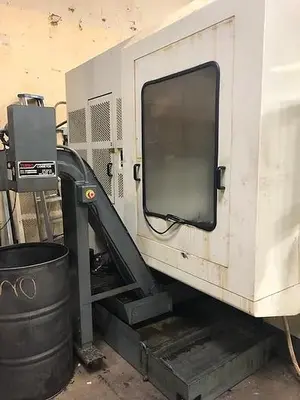

Chip Conveyor
All Available Manuals
