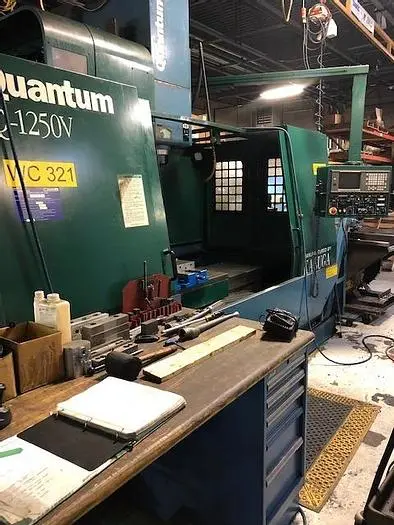

USED 1998 KASUGA QUANTUM 1250

Kasuga Quantum 1250 VMC 1998

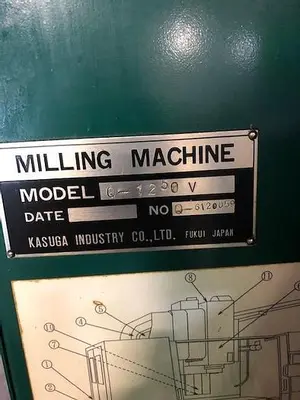

S/N Q6120059

TRAVELS
X - AXIS: 50"
Y - AXIS: 25"
Z - AXIS: 24.5"

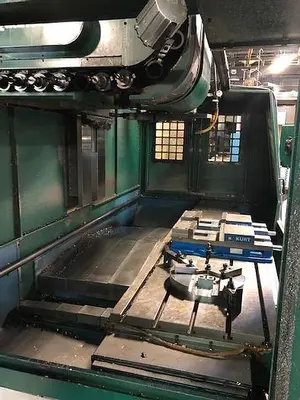

TABLE DIMENSIONS: 63" x 23.6"
TABLE LOAD CAPACITY: 3,300 lbs
SPINDLE CENTER TO COLUMN: 27.5"
SPINDLE NOSE TO TABLE: 6.3" - 31.9"
SPINDLE SPEED: 6,000 RPM 2 range gear drive
SPINDLE MOTOR: 25 HP,
SPINDLE TAPER: CT50
RAPID TRAVERSE: 787 IPM (X,Y) 590 IPM Z
CUTTING FEEDRATE: 393 IPM
TOOL CHANGER CAPACITY: 30 ATC
MAX. TOOL WEIGHT: 33 LBS.
MAX. TOOL LENGTH: 11.8"
MAX. TOOL DIAMETER: 4.9"/full
MACHINE WEIGHT: 20,000 LBS.
MACHINE SIZE: 190" x 127” x 113"
Equipped With

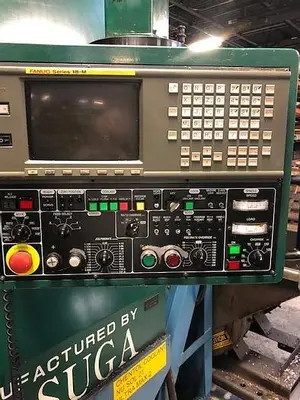

·         FANUC 18M CNC CONTROL
·         RIGID TAPPING

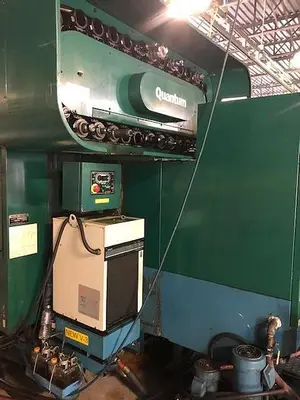

·         SIDE MOUNT TOOL CHANGER, 30 TOOLS. CT-50

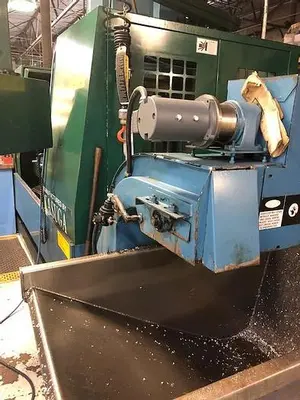

·         CHIP CONVEYOR
·         ALL AVAILABLE MANUALS
