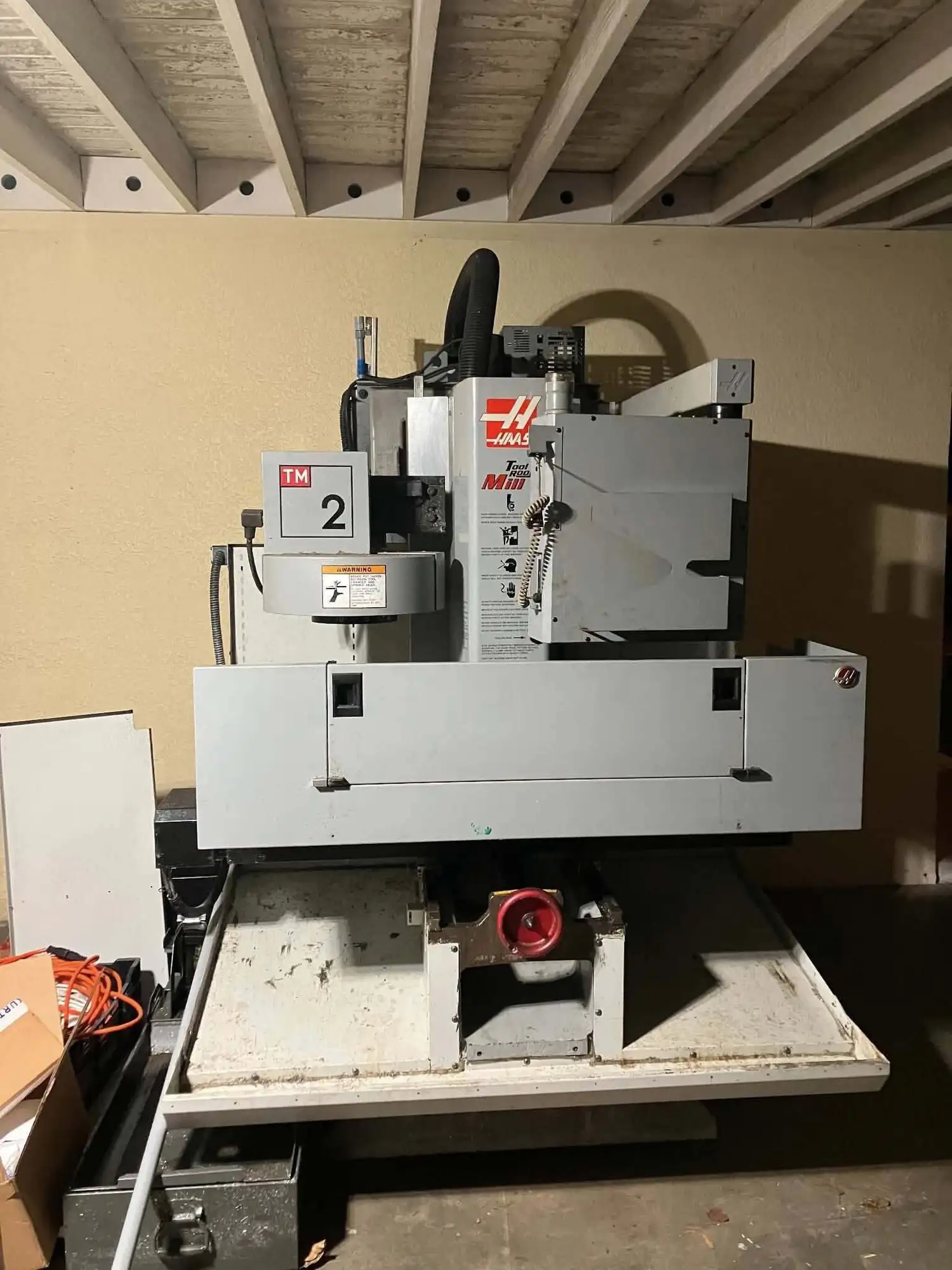

Used Vertical Machining Center in used condition. Specs: X 40", Y 16", Z 16", 7.5 hp, 6,000 RPM, 10 ATC, CAT-40 taper. Features include 1,784 low hours feed cut, rigid tap, single/3 phase power, and coolant tank.
| X | 40" | 1,016 mm |
| Y | 16" | 406.4 mm |
| Z | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 10 | 10 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 10.5" | 266.7 mm |
| Table-L | 57.75" | 1,466.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 85″ x 75″ x 100″ | 85″ x 75″ x 100″ |
| Weight | 4,000lbs | 4,000lbs |
Low Hours 1,784 Feed Cut
Rigid Tap
Single or 3 Phase Power
Coolant Tank
