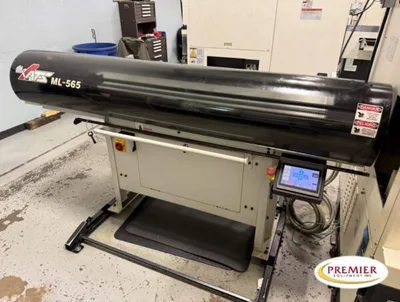

ATS ML565 Auto Barfeed

Scope of application:  Bar dimension
Bar round cross section:  6 to 67mm  /  2.6”
Bar hexagonal cross section:  8 to 58mm
Bar square cross section:  8 to 47mm
Bar weight
Maximum weight of the loaded bar 60 kg
Bar length
Maximum length of the bar handled by the barfeeder 1525 mm  /  60”
Actual max. length of the bar is limited by the length of the
spindle (with clamping cylinder and clamping device).
Magazine capacity depending on the bar diameter
8 bars  80 mm
The number of bars limited by the table capacity  6 mm
Total weight of all bars on the table must not exceed: 250 kg.
Pusher stroke
Design stroke 1665 mm
Working stroke 1660 mm
Maximum distance of the clamping device face from the pusher point in back position: 1655 mm
Technology of bar handling
The bar is cantered in the lathe spindle by spindle inserts, and shifted by the pusher to a stopper in the tool head.
Bar straightness
Bar must freely go into the user selected spindle insert.
Bar loading cycle
approx. 30 s
Setting time at change of bar diameter
Max. 1 minute at change to other diameter + time of lathe spindle insert replacement
Weight:  826 lbs
Packaging
Transport dimensions: L 88” x W 45.2” x H 48”
