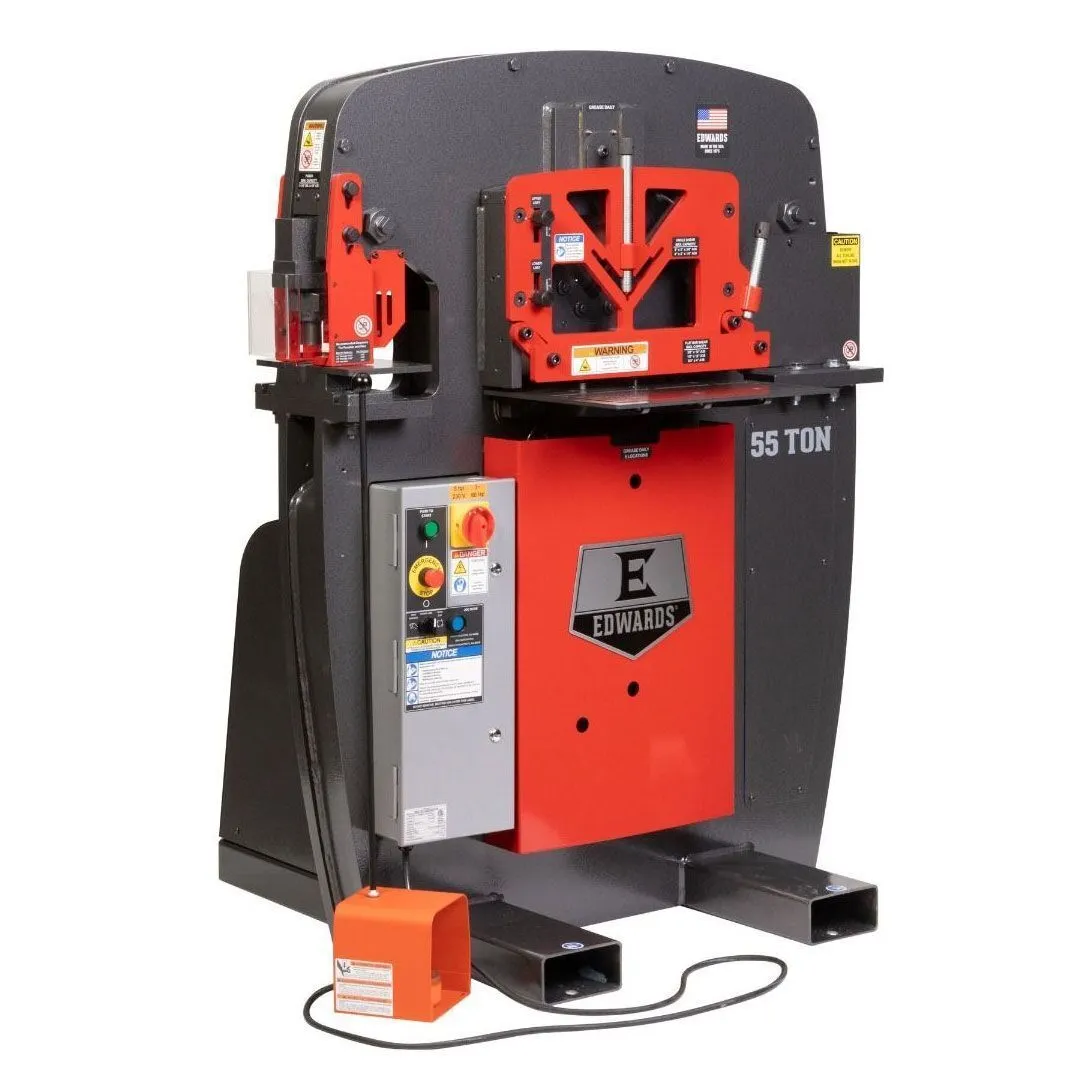

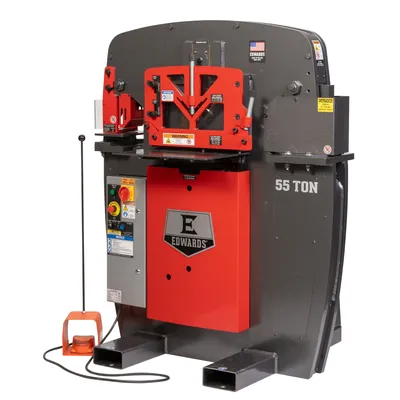

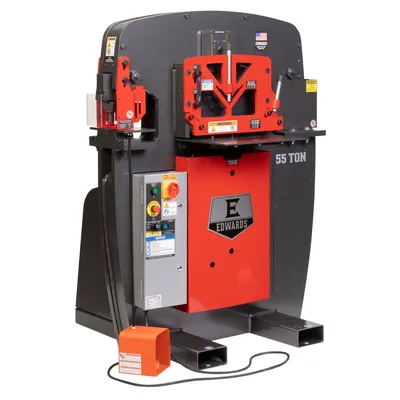

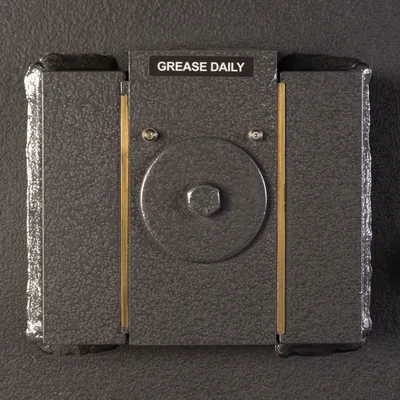

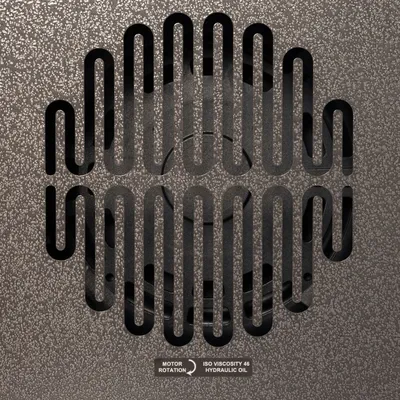

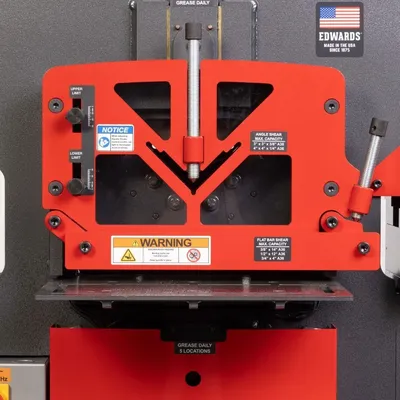

The 55 Ton Ironworker delivers the power and versatility needed for demanding fabrication and maintenance applications. With four workstations and 11 interchangeable attachments, it allows for easy customization to suit various metalworking needs.
| Punch Tonnage | 55 T | 49,895.2 kg |
| Punch - Work Height | 36.563" | 928.69 mm |
| Punch - Throat Depth | 7.5" | 190.5 mm |
| Punch - Open Height | 8-1/8 in. | 8-1/8 in. |
| Punch - Shut Height | 6-7/8 in. | 6-7/8 in. |
| Punch - Stroke | 1-1/4 in. | 1-1/4 in. |
| Flat Bar Shear - Max. Capacity | 3/8 x 14, 1/2 x 12, 3/4 x 4 in. | 3/8 x 14, 1/2 x 12, 3/4 x 4 in. |
| Flat Bar Shear - Max. Round Capacity | 7/8 in. | 7/8 in. |
| Flat Bar Shear - Max. Square Capacity | 7/8 in. | 7/8 in. |
| Flat Bar Shear - Work Height | 34-1/2 in. | 34-1/2 in. |
| Open Station - Work Height | 34-1/2 in. | 34-1/2 in. |
| Open Station - Throat Depth | 11-3/16 in. | 11-3/16 in. |
| Open Station - Open Height | 8.125" | 206.37 mm |
| Open Station - Shut Height | 6.875" | 174.62 mm |
| Open Station - Stroke | 1.25" | 31.75 mm |
| Angle Shear - Maximum Capacity | Max. Size: 4 x 4 x 1/4 in. or 3 x 3 x 3/8 in. | Max. Size: 4 x 4 x 1/4 in. or 3 x 3 x 3/8 in. |
| Angle Shear - Work Height | 39-7/8 in. | 39-7/8 in. |
| Coper Notcher - Max. Capacity | * | * |
| Coper Notcher - Work Height | 39-1/2 in. * | 39-1/2 in. * |
| Motor | 5 HP | 5 HP |
| Electrics | 230v, 3-Phase | 230v, 3-Phase |
| Power | 5 hp | 5 hp |
| Amperage | 14 | 14 |
| Hydraulic Pump Size (GPM) | 3-1/2 - single stage | 3-1/2 - single stage |
| Oil Capacity/Reservoir | 7 gal | 26.5 L |
| Cylinder | 2-1/2 ram | 2-1/2 ram |
| Valve Pressure | 2750 psi | |
| Net Weight | 2,430 lb | 1,102.2 kg |
| Gross Weight | 2,480 lb | 1,124.9 kg |
| Shipping Dimensions | 45 x 51 x 62 | 45 x 51 x 62 |
| Dimensions | 44-3/8 x 36-1/8 x 55-1/4 in. | 44-3/8 x 36-1/8 x 55-1/4 in. |
| Weight | 2,480 lbs. | 2,480 lbs. |
* Optional
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Models:
ED9-IW55-1P230: 55 Ton Ironworker 1 Phase, 230 Volt
ED9-IW55-3P208: 55 Ton Ironworker 3 Phase, 208 Volt
ED9-IW55-3P230: 55 Ton Ironworker 3 Phase, 230 Volt
ED9-IW55-3P460: 55 Ton Ironworker 3 Phase, 460 Volt
ED9-IW55-3P230-A: 55 Ton Ironworker 3 Phase, 230 Volt with PowerLink
ED9-IW55-3P208-A: 55 Ton Ironworker 3 Phase, 208 Volt with PowerLink
ED9-IW55-1P230-A: 55 Ton Ironworker 1 Phase, 230 Volt with PowerLink
ED9-IW55-3P460-A: 55 Ton Ironworker 3 Phase, 460 Volt with PowerLink
ED9-IW55-3P575-A: 55 Ton Ironworker 3 Phase, 575 Volt with PowerLink
ED9-55231512: 55 Ton Ironworker 1 Phase, 230 Volt, PowerLink, Coper Notcher
ED9-55233512: 55 Ton Ironworker 3 Phase, 230 Volt, PowerLink, Coper Notcher
ED9-55203512: 55 Ton Ironworker 3 Phase, 208 Volt, PowerLink, Coper Notcher
ED9-55231522: 55 Ton Ironworker 1 Phase, 230 Volt, PowerLink, 10" Brake
ED9-55203522: 55 Ton Ironworker 3 Phase, 208 Volt, PowerLink, 10" Brake
ED9-55233522: 55 Ton Ironworker 3 Phase, 230 Volt, PowerLink, 10" Brake
OPTIONAL ITEMS - CALL FOR PRICE:
Contact us for a list of Accessories and Available Punch and Die sets
Optional Attachments:
ED9-PRB12: Press Brake Tooling 12" Press Brake
ED9-HAT1000: 10 Ton Tube/Pipe Bender
ED9-HAT5000: Radius Roller
General Productivity Pack:
* Increase your Punching Efficiency and Accuracy
* AC2200 General Productivity Pack for 40TC - 100 IW
* AC2250 General Productivity Pack for 100T DLX & 120T IW
* FLEXIBILITY
- Contains Punches and Dies to produce the following size round holes: 3/16". 5/16", 7/16", 1/2", 9/16", 5/8", 11/16", 13/16", 15/16", and 1-1/16"
- The Back Gauge utilizes a positive stop attachment that is fitted to the back of the Ironworker ensuing accurate shearing out to 48"
* PRODUCTIVITY
- Punch and Die Storage Tray easily mounts to either side of the output shoot
- The 48" Back Gauge speeds up production on repeatable cuts by providing an adjustable stop for the flat bar shear and angle shear.
- The Fabricator’s protractor increase accuracy on the punch and flat bar shear workstations by guiding your work piece and is gauged at 15° increments through 180° featuring a straight edge and reversible design
- A Gauging table kit includes adjustable fences and handles quickly and easily guide your material for perfect repeatable actions
* SAFETY
- Punch diameter must meet or exceed the thickness of your material
- Super bright LED light with M12 connections has a powerful magnetic base allowing users to attach the light to any Ironworker surface and move as needed.
* PERFORMANCE
- Made of durable steel for long life
- Long lasting averages between 3,000 and 5,000 impacts
