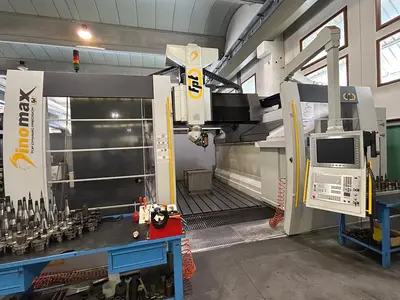

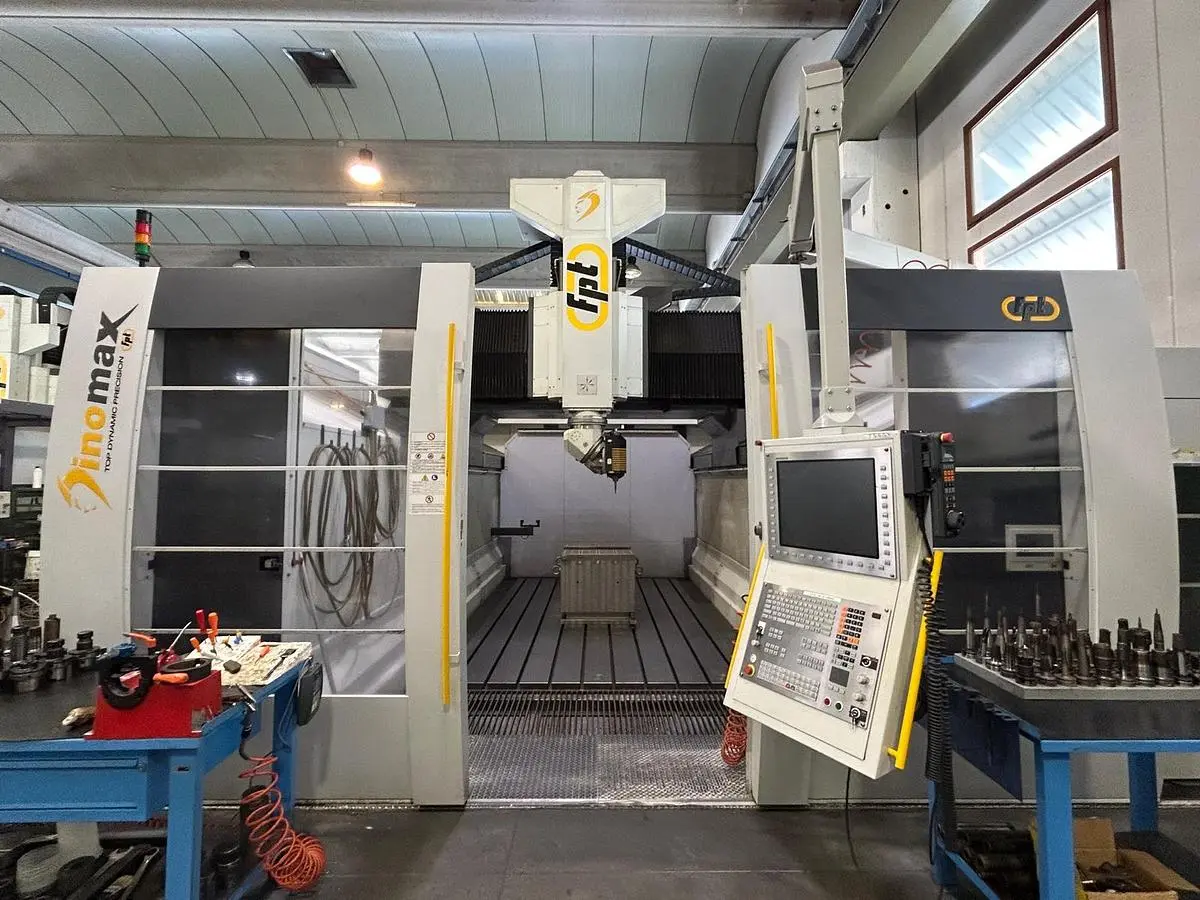

USED 2016 FPT DINOMAX

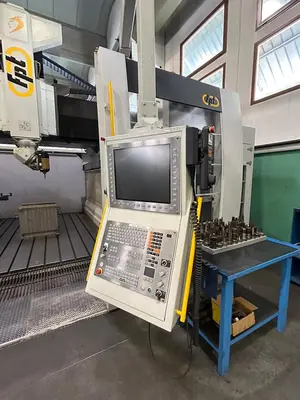

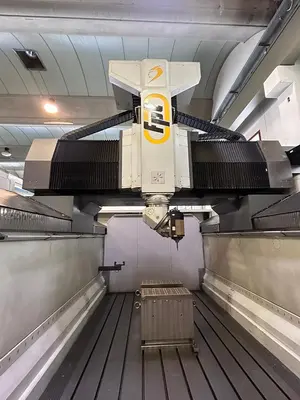

Heidenhain iTNC 640 CNC ControlHeidenhain HR550 remote electronic handwheelHigh-pressure water and air through the spindleSemi-automatic electrospindle change, with HSK-A63 and HSK-A100 interfacesVarious tooling included with the machineRenishaw probeBLUM laser presetting systemAUTOCAL automatic head calibration systemVisormax subscription for remote monitoringElectrical cabinet air conditioning unitCooling system for all axes and the electrospindleUser and maintenance manual and CE declaration of conformityCONTINUOUS POSITIONING UNIVERSAL HEAD WITH ELECTROSPINDLE:Automatic universal head indexed to 360,000 positions (every 0.001°). Rotation is driven by direct drive motors and controlled by the CNC as a positioning axis. Automatic tool clamping. Allows 10° undercut machining. Internal cooling system for bearings and axis motors.C-axis rotation range: ± 270° A-axis rotation range: ± 185° Maximum axis rotation speed: rpm 30 Maximum torque available on A/C axes: Nm 450 Axis clamping torque: Nm 1.400 Spindle power (S1/S6): kW 22/33 Spindle torque (S1/S6): Nm 84/128 Maximum spindle speed: rpm 22.000 Constant power range: rpm 3.000 to 18.000 Constant torque range: rpm 10 to 3.000 Tool interface: HSK-A63 DIN 69893ELECTROSPINDLE HSK-A100 WITH SEMI-AUTOMATIC CHANGE SYSTEMSpindle power (S1/S6): kW 37/43 Spindle torque (S1/S6): Nm 140/165 Maximum spindle speed: rpm 15.000 Constant power range: rpm 2.500 to 12.000 Constant torque range: rpm 10 to 2.500 Tool interface: HSK-A100 DIN 69893CHAIN TOOL MAGAZINE – 55 POSITIONS, HSK-A100 / HSK-A63Floor-mounted fixed chain magazine located at the rear of the machine, fully enclosed for operator protection, equipped with a vertical tool change arm and automatic tool pre-selection. Fixed-pocket management system.Hydraulic axis lockingTotal tools: No. 55HSK-A63 tools (DIN 69893): Number of tools: No. 30 Max tool diameter: mm 90 Max tool diameter (with adjacent pockets free): mm 160 Max tool length: mm 300 Max tool weight: kg 10HSK-A100 tools (DIN 69893): Number of tools: No. 25 Max tool diameter: mm 100 Max tool diameter (with adjacent pockets free): mm 160 Max tool length: mm 450 Max tool weight: kg 20

Manufacturer: FPT
Model: DINOMAX
Year: 2016
Condition: Used
Stock Number: 5654358
Spindle speeds: 18,000 rpm (up to)
X axis travel: 4,000 mm
Y axis travel: 2,200 mm
Z axis travel: 1,100 mm
Table dimensions: 4,500 x 2,500 mm
Table capacity: 15 T/m²
Table height: 300 mm
Rapid Feed X/Y/Z: 50 m/min
Tool taper: HSK-A63 DIN 69893
Installed power: 177 kVA
Max current required: 235 A
