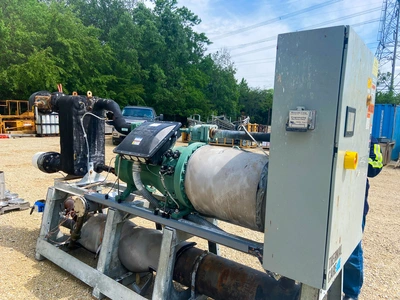

USED 2012 THERMAL CARE MXW100

### Water Cooled 100 Ton Water Cooled Chiller ###

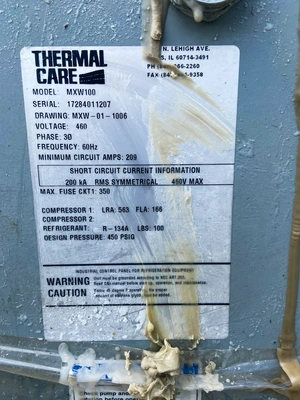

- 100 Ton water cooled chiller by Thermal Care. Model MXW100. Built in 2012. Has cooling capacity of 100 tons (352 kw) with a set point range of 20 to 75 Fahrenheit. MCA @ 460v / 3phase / 60Hz -209 amps. MOP @ 460v / 3phase / 60Hz-350 amps.

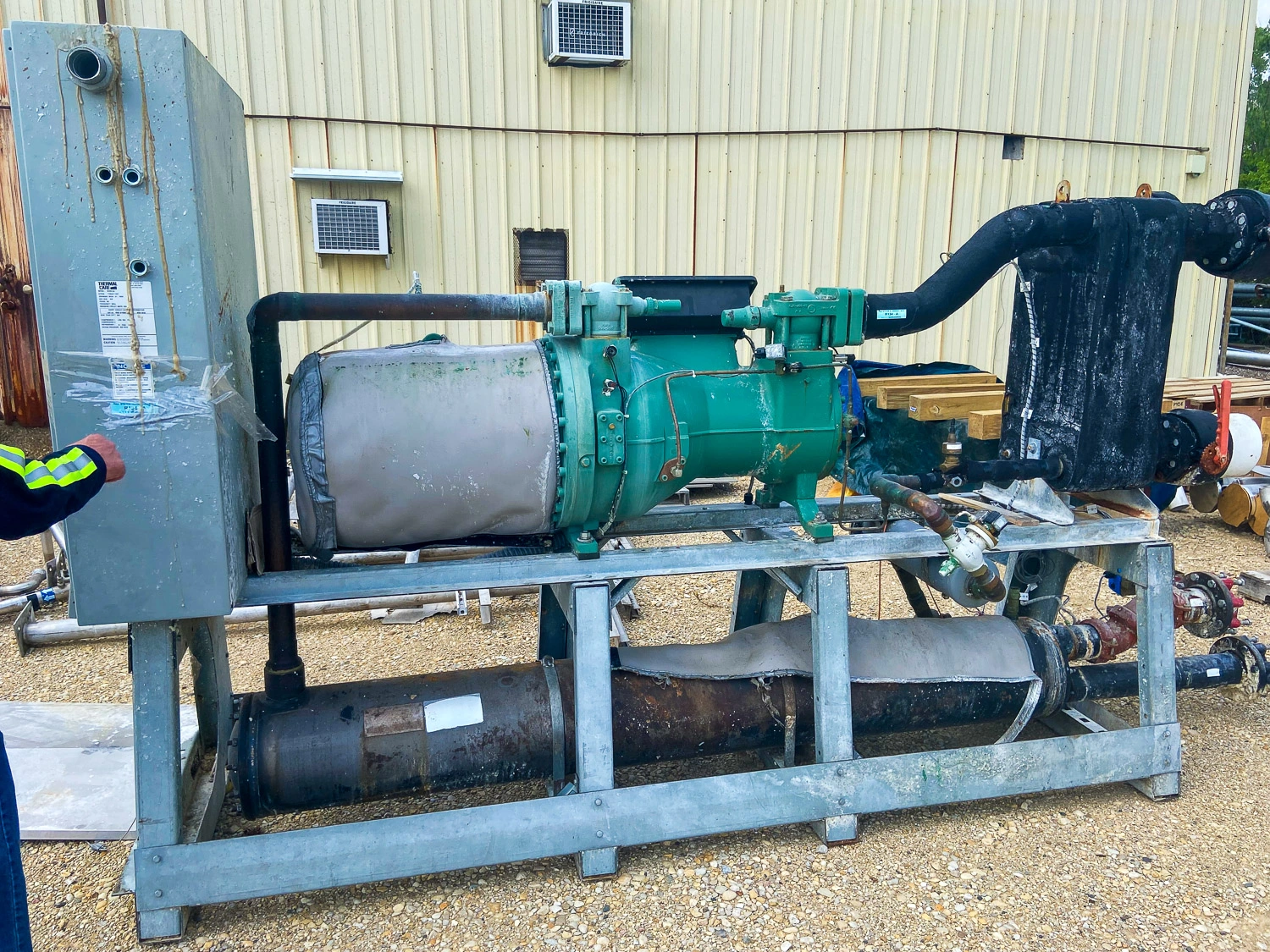

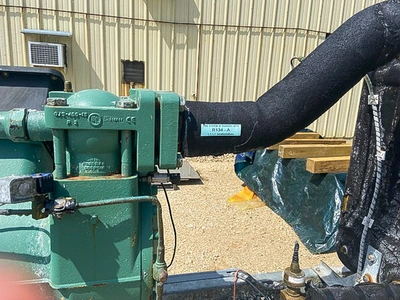

- Rotary screw compressor with integral oil separator and filter. Direct drive at 166 FLA 460v 3/60 = approx 132 KW rated. Motor is probably 200 HP.
- Chiller set points from -20F to 75F
- Runs on R134a refrigerant.

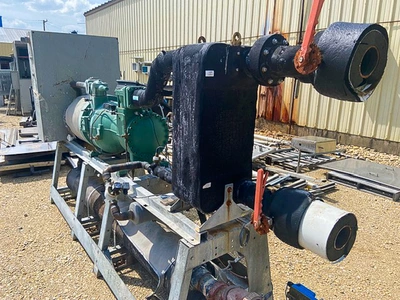

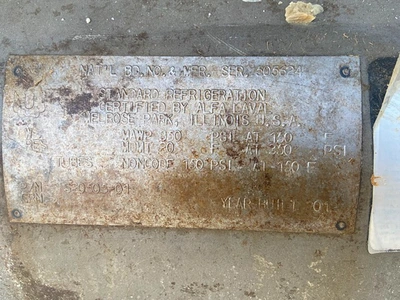

- Stainless steel brazed plate evaporator

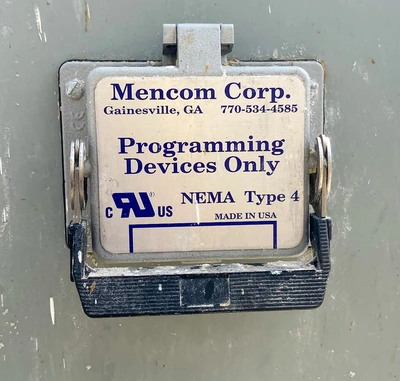

- PLC Control panel with high resolution 12\" screen operator interface. NEMA-12 C-UL 508A listed and labeled control panel. Compact size with easy access to controls and components. Shipping weight is 4,315 lbs.

Quantity: 1
Capacity: 100 ton
Width/Dia: 3 Feet
Length: 12.25 Feet
Height: 6.75 Feet
Weight: 4,315 Pounds
Motor HP: 200
