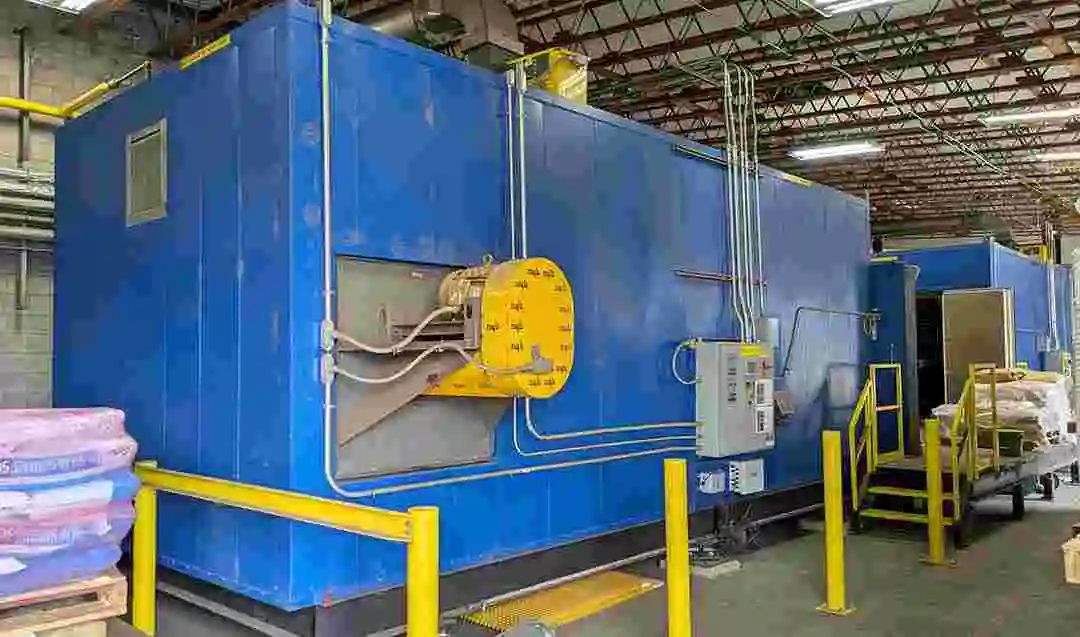

Model: NS-EWR06FD-72-240-84
Serial Number: S10313-004-01
Date of Manufacture: 07-17
NFPA Rating: Class B oven (not for flammable volatiles or combustible materials)
Maximum Temperature: 650 °F
Heat Input: 1,000,000 BTU/hr, 500 CFH @ 2 PSI (fuel-fired)
Electrical: 480 V, 3 phase, 60 Hz, 48 FLA, 5 kA SCCR
Enclosure Rating: NEMA 12 control enclosure
Exhaust Fan Capacity: 1,250 CFM
Purge Time: 8 minutes
840 cubic feet 22,000 CFM
Estimated 72"x241"x84"
Located in Oregon
| Chamber-W | 72" | 1,828.8 mm |
| Chamber-L | 240" | 6,096 mm |
| Chamber-H | 84" | 2,133.6 mm |
| Max Temperature | 650°F | 343.3°C |
Model: NS-EWR06FD-72-240-84
Serial Number: S10313-004-01
Date of Manufacture: 07-17
NFPA Rating: Class B oven (not for flammable volatiles or combustible materials)
Maximum Temperature: 650 °F
Heat Input: 1,000,000 BTU/hr, 1000 CFH @ 2 PSI (fuel-fired)
Electrical: 480 V, 3 phase, 60 Hz, 48 FLA, 5 kA SCCR
Enclosure Rating: NEMA 12 control enclosure
Exhaust Fan Capacity: 1,250 CFM
Purge Time: 8 minutes
840 cubic feet 22,000 CFM
Estimated 72"x241"x84"
Located in Oregon
