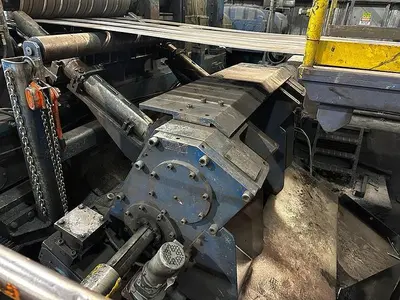

72" x .500" x 60,000# Delta Brands Dual Injector Head Slitting Line

This Delta slitting line is ideal for heavy-duty industrial applications, boasting significant capabilities with its dual injector head design. It can handle coil capacities up to 60,000 pounds with a thickness range from 0.060" to 0.500", supporting materials with a yield strength of 60,000 PSI and a tensile strength of 75,000 PSI. The line accommodates coil widths between 20" and 74", and diameters from 36" to 84". Its advanced features include new ABB digital drives installed in 2014 and rebuilt slitter heads in 2019, ensuring reliable performance.
The line is equipped with an 11" arbor diameter, with line speeds reaching 150 to 300 feet per minute. Key components include entry and exit coil cars, a double cone uncoiler, powered flatteners, dual rotary tension rolls, and a dual Wichita water-cooled brake system. The hydraulic systems are floor-standing and self-contained, making the operation streamlining with powered V-deck rolls and 720 HP DC drive in the recoiler.
For enhanced operational control, the line integrates touch screen controls with digital readouts, supported by the ABB DCS 800 digital drives and Allen-Bradley CompactLogix PLCs. With comprehensive tooling and spare parts, this slitting line offers maximum functionality, making it a valuable addition to your production line. The machine can be inspected under power and operating conditions to ensure it meets your operational needs.
Entry Coil Storage Conveyor
L-Type Entry Coil Car
Floor Standing Self-Contained Hydraulic System

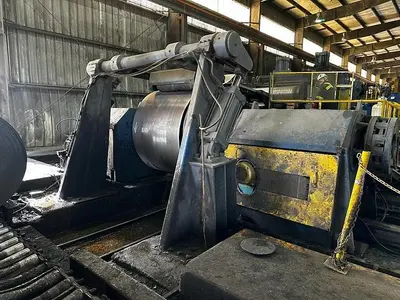

Double Cone Uncoiler
Hydraulic Sliding Base
Dual Wichita Water-Cooled Brakes
Feed-Up Drive
Double Roll Powered Hold Down Roll
Peeler Table

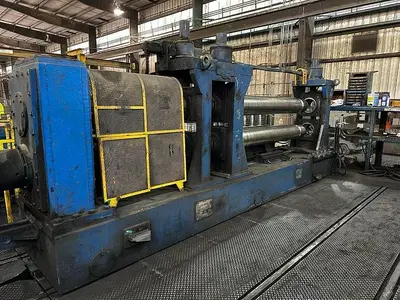

4 Roll Powered Flattener
Powered Pinch Rolls
Entry Crop Shear
Double Row Edge Guides with Hydraulic Adjustment

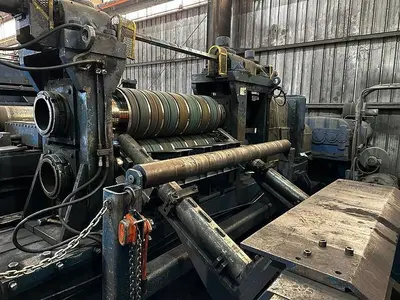

(2) Dual Injector Slitter Heads
11" Diameter Arbors
60" & 72" Slitter Heads
Hydraulic Arbor Adjustment
Hydraulic Sliding Outboard
Hydraulic Locking Slitter Heads
250 HP DC Drive
Cross Over Table
Butech Scrap Chopper
- Year: 1998
- Model: SC626-1
- Line Speed: 500 FPM
- Maximum Strip Width: 4"
- Arbor Diameter: 16"
- 100 HP DC Drive
Motorized Exit Goose Neck Scrap Conveyor
Tension Device
Entry Tooling Separator Shaft with Sliding Cartridge
Dual Rotary Tension Rolls with Dual Water-Cooled Brakes
Neutralizing Roll with 300 HP DC Drive for Back Tension
Exit Crop Shear
Pass Line Roll

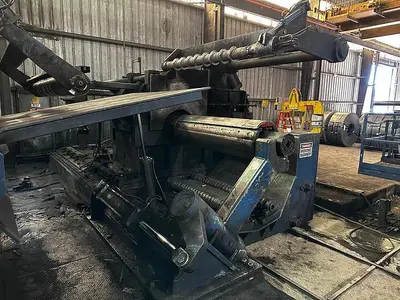

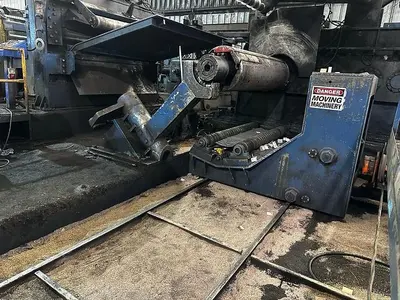

Recoiler
24" Diameter Drum
Full Hydraulic Drum
Hydraulic Push-Off
Hydraulic Sliding Base
Double Overarm Separator
2-Speed Gearbox
720 HP DC Drive
Outboard Bearing Support
Overarm Separator Changing Cart
Exit L-Type Coil Car
Floor Standing Self-Contained Hydraulic System
Powered V-Deck Rolls

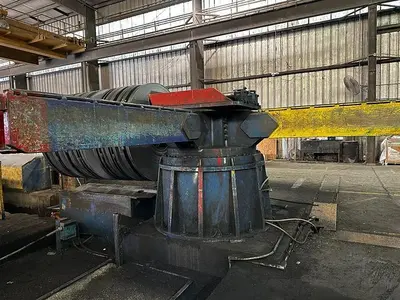

4 Arm Exit Turnstile
Exit Coil Car

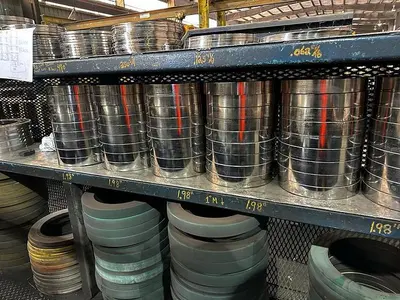

Tooling Knives
Rubbers
Spacers
Spare Parts
Box of New Micarta Separators
New & Used Slitter Knives
100 - 1" Knives
50 - 1.5" Knives
Touch Screen Controls with Digital Readouts

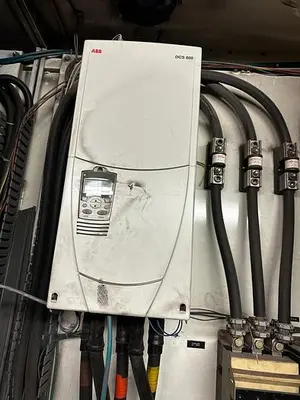

ABB DCS 800 Digital Drives
Dual Cycle Drives (50 / 60 Hz)
Allen-Bradley CompactLogix PLC
Allen-Bradley 1606-XLS Power Supply
