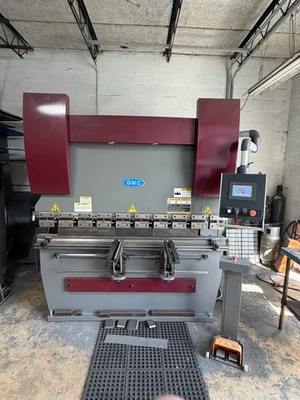

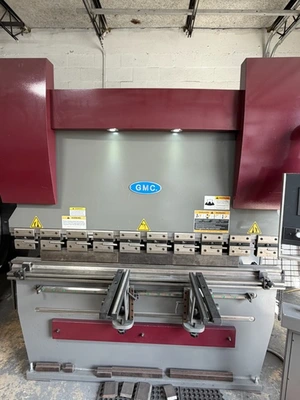

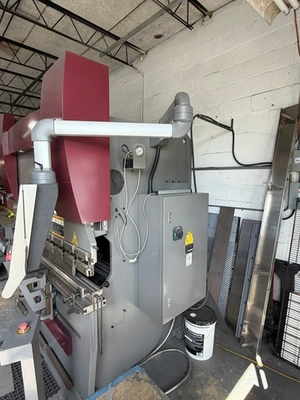

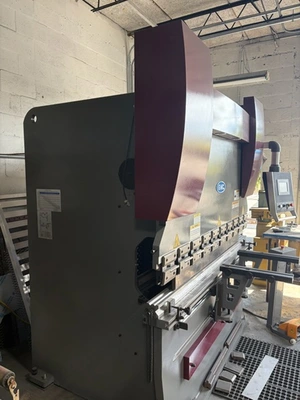

USED 2022 GMC HPB-7006

Capacity: 70 Ton x 6‘

2022 capacity and 6′ bending length. Equipped with CNC controls, back gauge, and safety light curtains, this unit is designed for precision forming with high repeatability and reliable hydraulic performance. Ideal for fabrication shops and general metal forming applications.
Type: Hydraulic Press Brake
Capacity: 70 Ton
Bending Length: 80″ (6’8″)
Distance Between Uprights: 63″
Stroke: 6″
Throat Depth: 10″
Back Gauge Distance: 24″
Back Gauge Repeatability: .0039″
Y-Axis Repeatability: .0039″
Main Motor: 7.5 HP
Hydraulic Oil Capacity: 52 Gallon
Machine Weight: 8,650 LBS
Equipped With:

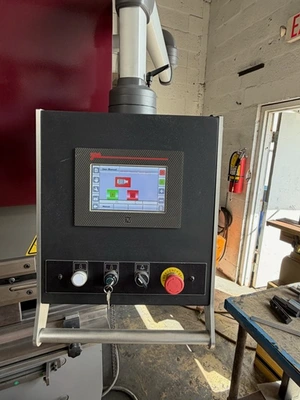

ESA Model 625 2 Axis CNC Controller
(2) 24″ Front Support Arms Quick Release
Quick Release Segmented American Style Tooling Punch Holder
Full Length Vee Die
Light Curtain Safety System
Back Gauge System
Hydraulic Crowning
Foot Pedal Control With E-Stop
Side And Rear Safety Guarding
