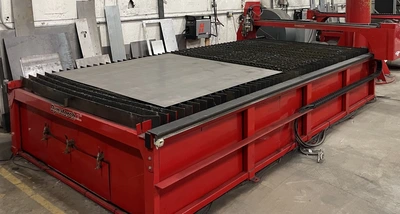

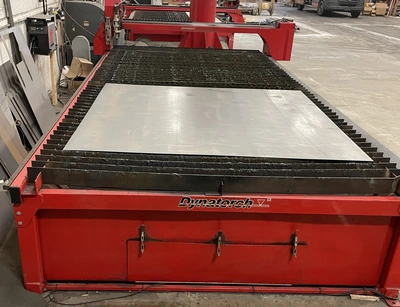

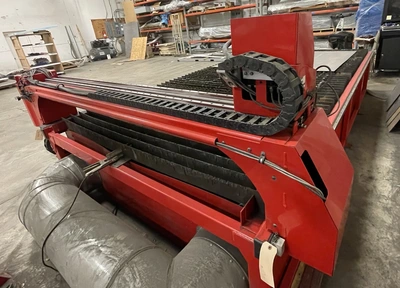

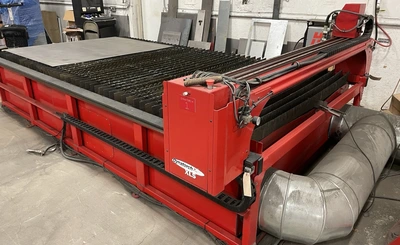

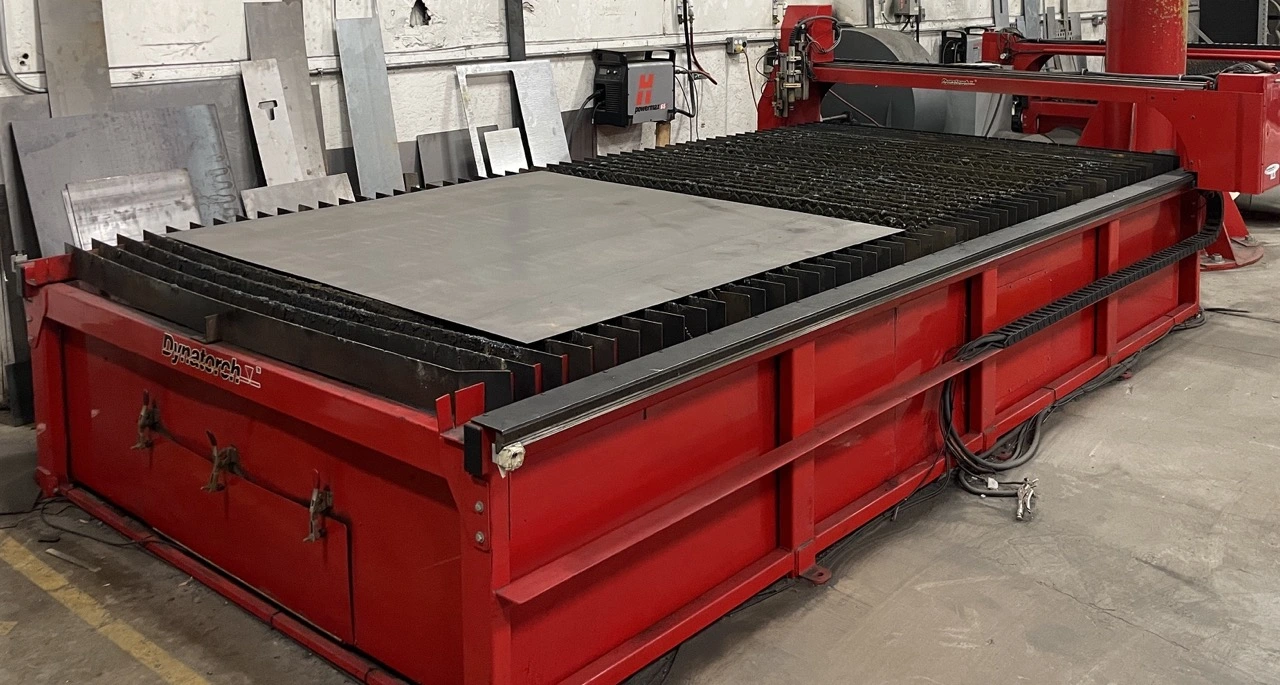

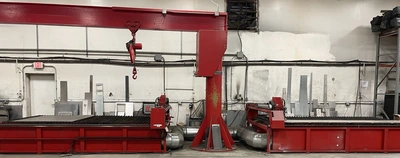

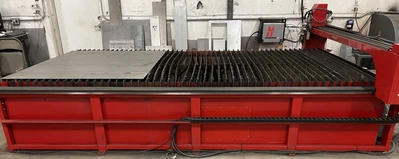

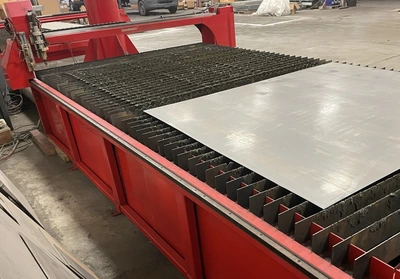

USED 2016 DYNATORCH XLS

Capacity: 5‘ x 10‘

Cutting Area: 5′ x 10′
Table Type: Downdraft Table
Machine Type: CNC Plasma Cutting Table
Plasma Power Source: Hypertherm Powermax65
Plasma Amperage: 65 Amp
Recommended Cut Capacity: 3/4″
Severance Capacity: 1-1/4″
Pierce Capacity: 5/8″
Cutting Speed: Up To 20 IPM At 3/4″
Output Current: 20–65 Amp
Input Voltage: 200–600V
Phase: Single Or Three Phase
Duty Cycle: 50% At 65 Amp
Gas Requirement: Clean Dry Air Or Nitrogen
Air Consumption: 6.7 SCFM At 85 PSI
Drive System: CNC Servo Driven Gantry
Torch Height Control: Automatic THC
Control Type: PC Based CNC Control
Equipped With:
Hypertherm Powermax65 Plasma Power Supply
CNC Control System
Automatic Torch Height Control
Downdraft Cutting Table
Gantry Drive System
Plasma Torch And Leads
Air Filtration System
