USED 2015 DYNATORCH XLS

Capacity: 5‘ x 10‘

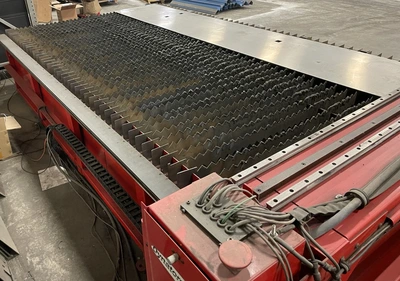

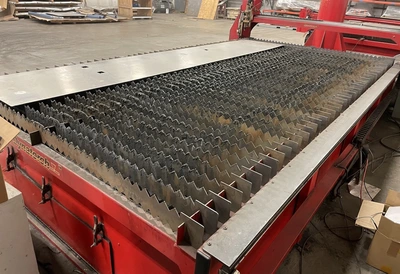

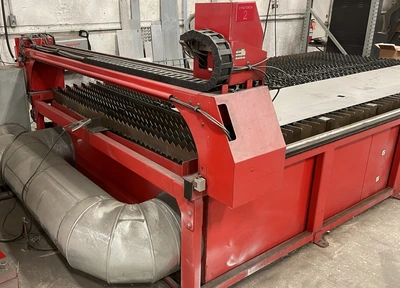

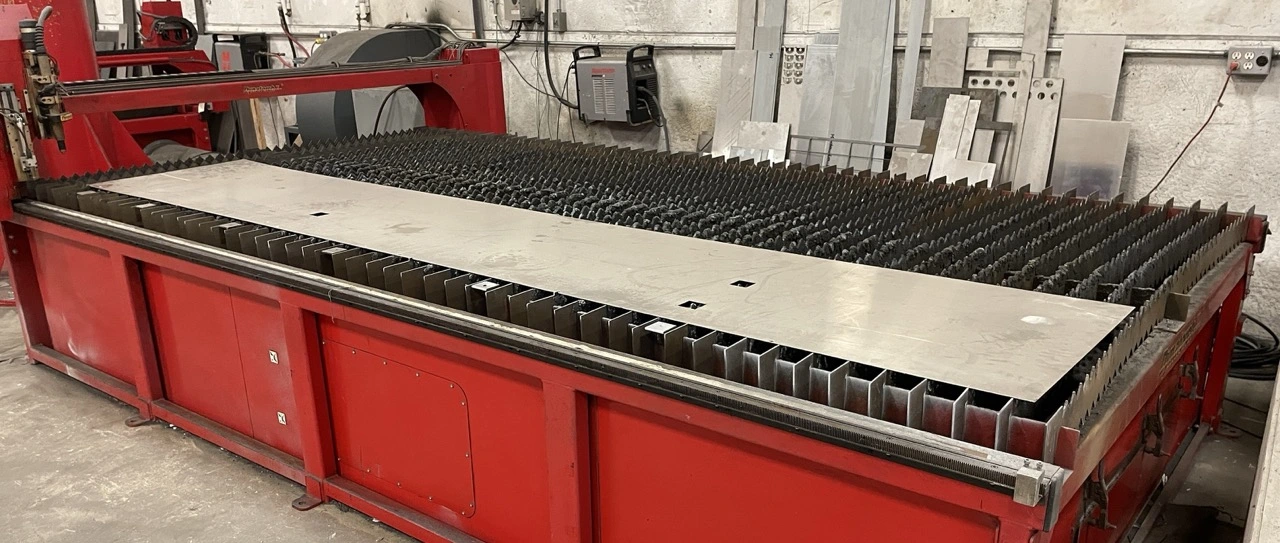

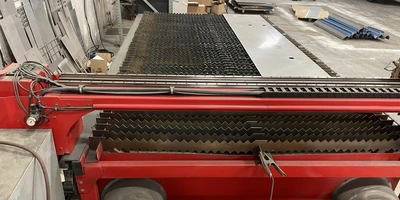

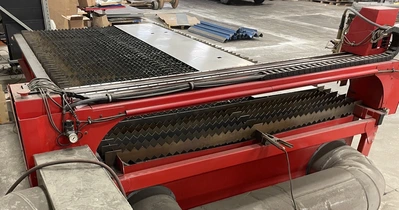

This 5′ x 10′ DynaTorch XLS CNC plasma cutting table is equipped with a Hypertherm Powermax65 65 amp plasma system, offering reliable precision cutting for a wide range of metal fabrication applications. Ideal for shops cutting mild steel, stainless, and aluminum, this system delivers strong performance with CNC control and efficient material handling. Built for durability and accuracy, it is well-suited for production and custom fabrication environments.
Cutting Area: 5′ x 10′
Table Type: Downdraft Table
Machine Type: CNC Plasma Cutting Table
Plasma Power Source: Hypertherm Powermax65
Plasma Amperage: 65 Amp
Recommended Cut Capacity: 3/4″
Severance Capacity: 1-1/4″
Pierce Capacity: 5/8″
Cutting Speed: Up To 20 IPM At 3/4″
Output Current: 20–65 Amp
Input Voltage: 200–600V
Phase: Single Or Three Phase
Duty Cycle: 50% At 65 Amp
Gas Requirement: Clean Dry Air Or Nitrogen
Air Consumption: 6.7 SCFM At 85 PSI
Drive System: CNC Servo Driven Gantry
Torch Height Control: Automatic THC
Control Type: PC Based CNC Control
Equipped With:
Hypertherm Powermax65 Plasma Power Supply
CNC Control System
Automatic Torch Height Control
Downdraft Cutting Table
Gantry Drive System
Plasma Torch And Leads
Air Filtration System
