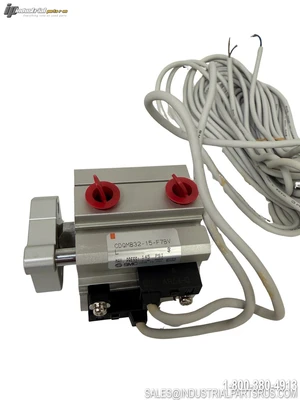

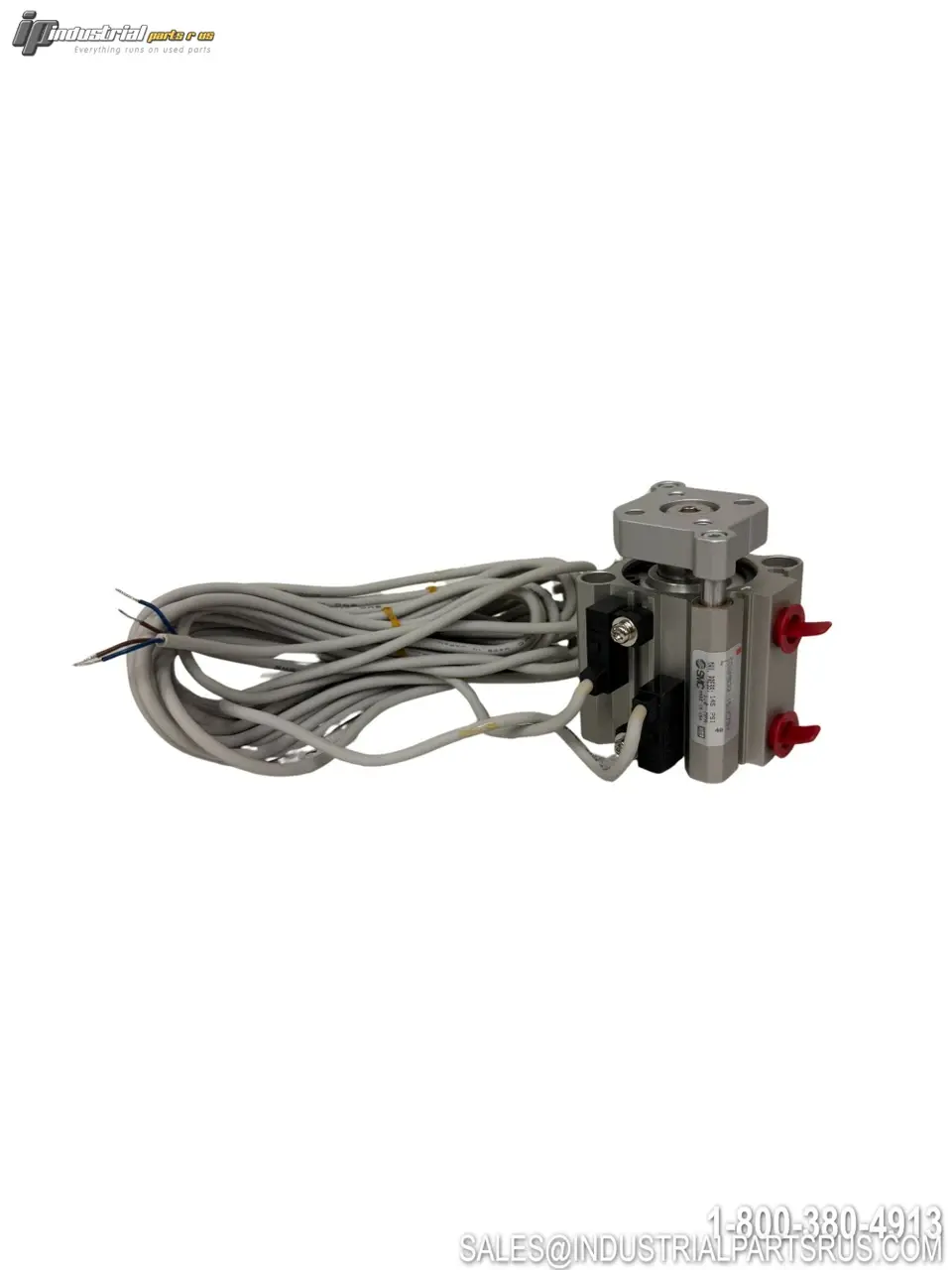

NEW SMC CDQMB32-15-F7BVL
Overview
Description
The SMC CDQMB32-15-F7BVL is a compact pneumatic cylinder from SMC's CQM series featuring an integrated guide rod design. This cylinder combines a 32mm bore with 15mm stroke length and includes the F7BVL solid state auto switch for position sensing. The guide rod construction provides excellent non-rotating accuracy for precise linear motion applications.
Specification
Value
Brand
SMC
Model/Part Number
CDQMB32-15-F7BVL
Product Type
Compact Guide Rod Cylinder
Series
CQM
Bore Diameter
32mm
Stroke Length
15mm
Cylinder Action
Double Acting
Auto Switch
F7BVL Solid State
Switch Voltage
DC24V (DC10~28V)
Switch Type
2-Wire, Perpendicular Mount
Mounting Type
Through-hole
Construction
Guide Rod Type
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1343
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDQMB32-15-F7BVL
Shelf: K-65 tub-2
Bore Diameter: 32 mm
Model: CDQMB32-15-F7BVL
MPN: CDQMB32-15-F7BVL
Type: Pneumatic Cylinder
