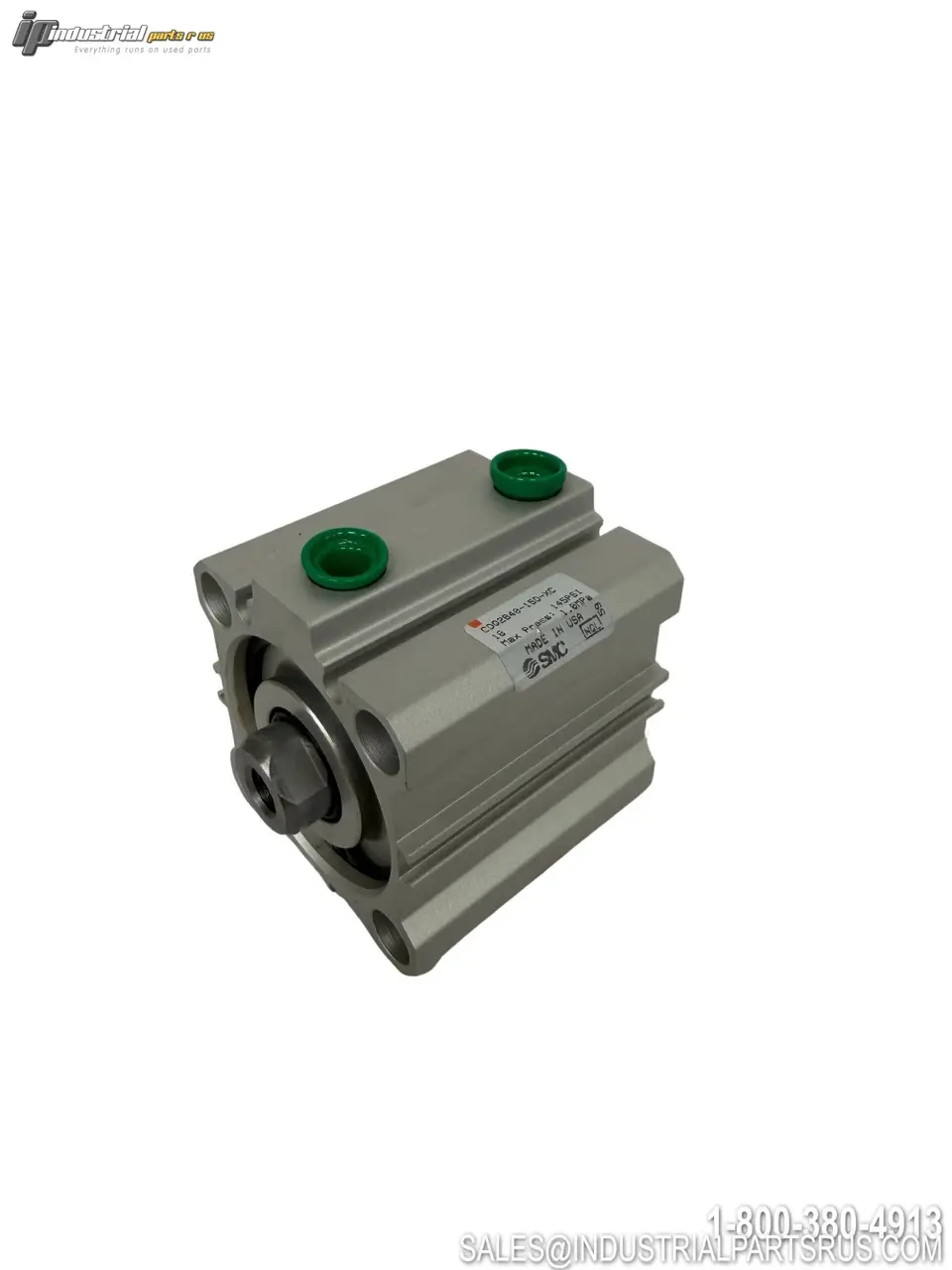

NEW SMC CDQ2B40-15D-XC18

The SMC CDQ2B40-15D-XC18 is a compact pneumatic cylinder from SMC's CQ2 series, featuring a 40mm bore diameter and 15mm stroke length. This double-acting cylinder operates at pressures up to 145 PSI (1.0 MPa) maximum operating pressure, with through-hole mounting capability and built-in magnet for auto switch mounting grooves. The compact design is optimized for efficient operation in tight spaces while maintaining smooth and reliable performance.
Specification
Value
Brand
SMC
Model/Part Number
CDQ2B40-15D-XC18
Series
CQ2
Bore Diameter
40mm
Stroke Length
15mm
Cylinder Type
Compact Double-Acting
Maximum Operating Pressure
145 PSI (1.0 MPa)
Minimum Operating Pressure
7.3 PSI (0.05 MPa)
Mounting Type
Through-hole mounting
Port Size
Rc3/8" threaded ports
Piston Speed
50-500mm/s
Auto Switch Compatible
Yes (Built-in magnet)
Construction
Single rod, compact design
We warranty all items for 30 days from date of purchase.

SKU: AI1345
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDQ2B40-15D-XC18
Shelf: K-65 tub-2
Bore Diameter: 40 mm
Model: CDQ2B40-15D-XC18
MPN: CDQ2B40-15D-XC18
Type: Compact Cylinder
