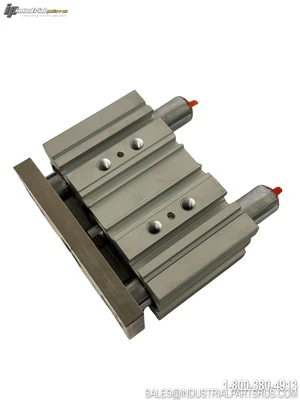

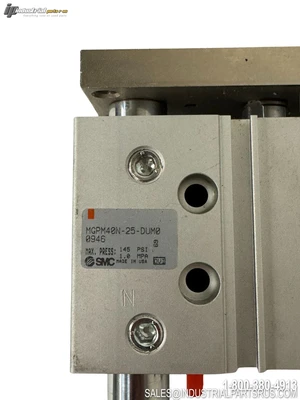

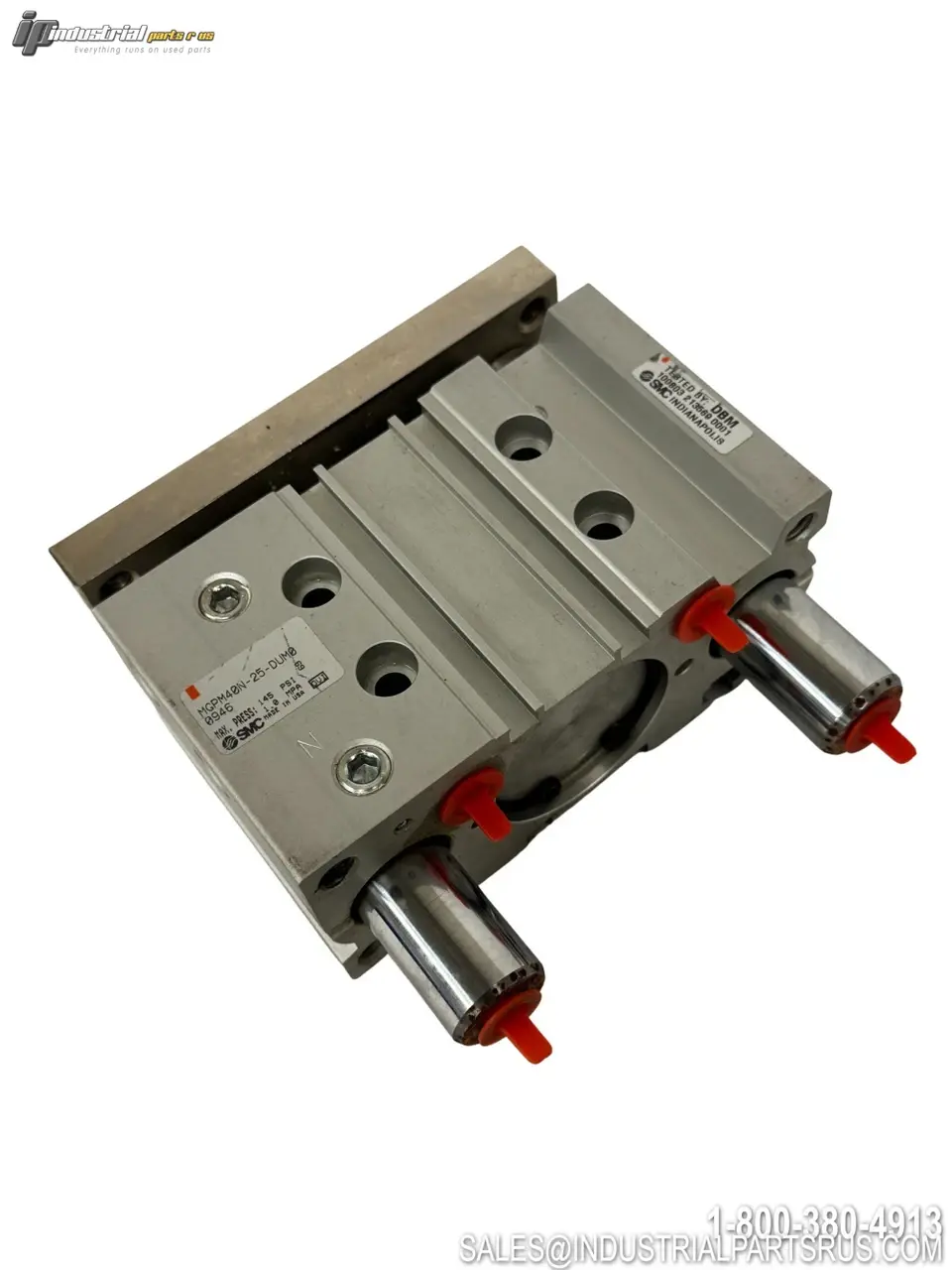

USED SMC MGPM40N-25-DUM00946
Overview
Description
The SMC MGPM40N-25-DUM00946 is a compact guide cylinder from SMC's MGP series, featuring a 40mm bore diameter and 25mm stroke length. This pneumatic actuator integrates internal guide shafts to isolate load bearing from the movement of the actuator's rod and seals, making it suitable for high side load applications in material handling, lifting, and stopping operations.
Specification
Value
Brand
SMC
Model/Part Number
MGPM40N-25-DUM00946
Product Type
Compact Guide Cylinder
Series
MGPM (MGP Compact Guide)
Bore Diameter
40mm
Stroke Length
25mm
Bearing Type
Slide Bearing (Carbon Steel Alloy)
Cylinder Type
Double Acting
Non-Rotating Accuracy
±0.06° (32 & 40mm bore)
Application
Material Handling, Lifting, Stopping
Guide Shaft Type
Internal Guide Shafts
Switch Mounting
Auto Switch Capable
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: AI1362
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: Japan
Manufacturer: SMC
Part Number: MGPM40N-25-DUM00946
Shelf: B-10
Bore Diameter: 40 mm
Model: MGPM40N-25-DUM00946
MPN: MGPM40N-25-DUM00946
Type: Pneumatic Cylinder
