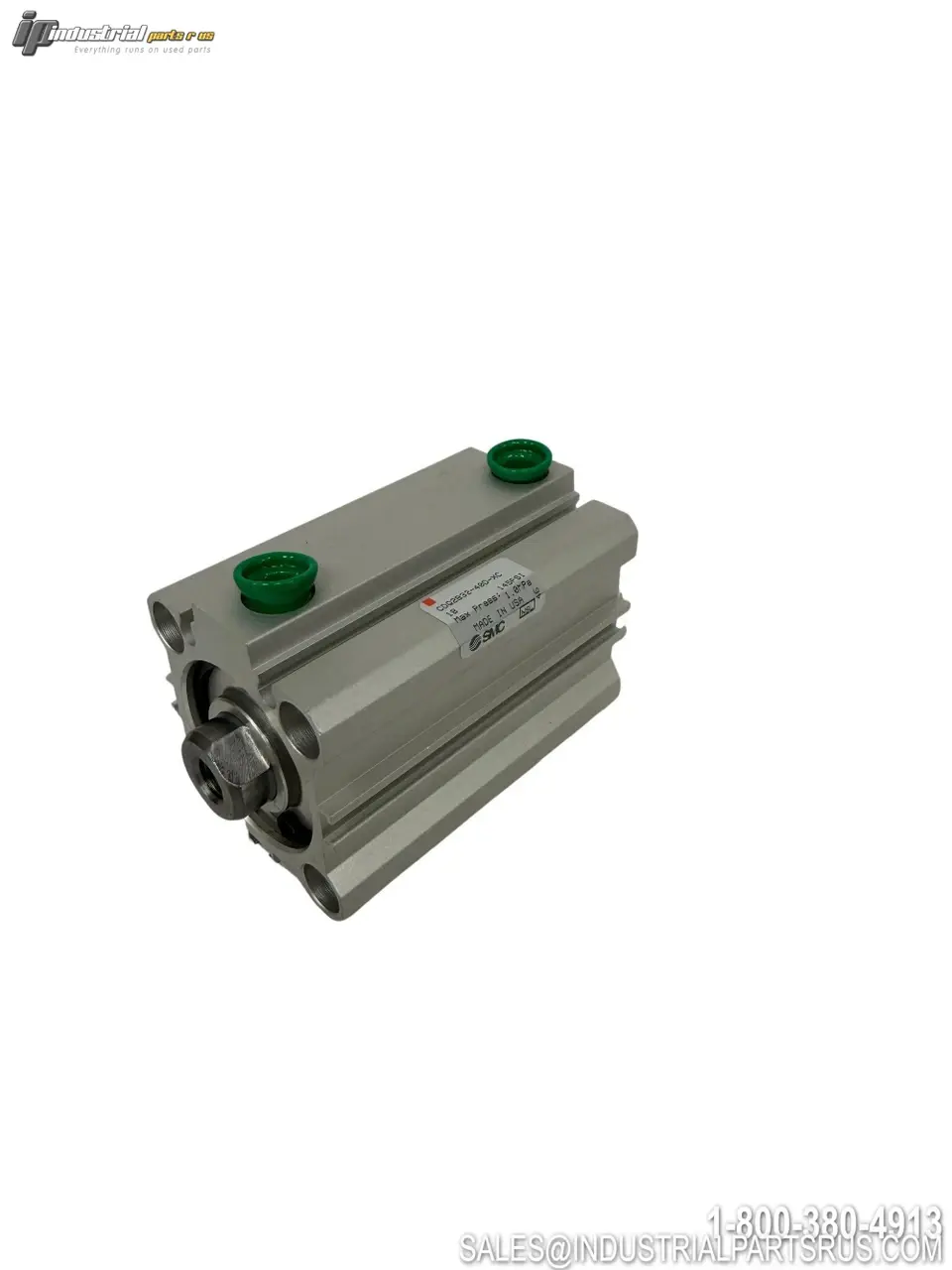

NEW SMC CDQ2B32-40D-XC18
Overview
Description
The SMC CDQ2B32-40D is a compact double-acting pneumatic cylinder from the CQ2 series. This cylinder features a 32mm bore diameter and 40mm stroke length, making it suitable for industrial automation applications requiring precise linear motion. The CQ2 series is designed with a compact body for space-saving installations and supports auto switch mounting on multiple surfaces.
Specification
Value
Brand
SMC
Model/Part Number
Cdq2b32-40d-xc18
Series
CQ2
Bore Diameter
32mm
Stroke Length
40mm
Cylinder Type
Double Acting, Single Rod
Port Thread Type
M Thread
Mounting Type
Through Hole Mount
Maximum Operating Pressure
145 PSI (1.0 MPa)
Minimum Operating Pressure
7.3 PSI (0.05 MPa)
Proof Pressure
218 PSI (1.5 MPa)
Operating Temperature
-10°C to +70°C
Auto Switch Mounting
4 surfaces (32-100mm bore)
Rod End Thread
Male or Female (Standard)
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1344
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDQ2B32-40D-XC18
Shelf: K-65 tub-2
Bore Diameter: 32 mm
Model: CDQ2B32-40D-XC18
MPN: CDQ2B32-40D-XC18
Type: Pneumatic Cylinder
