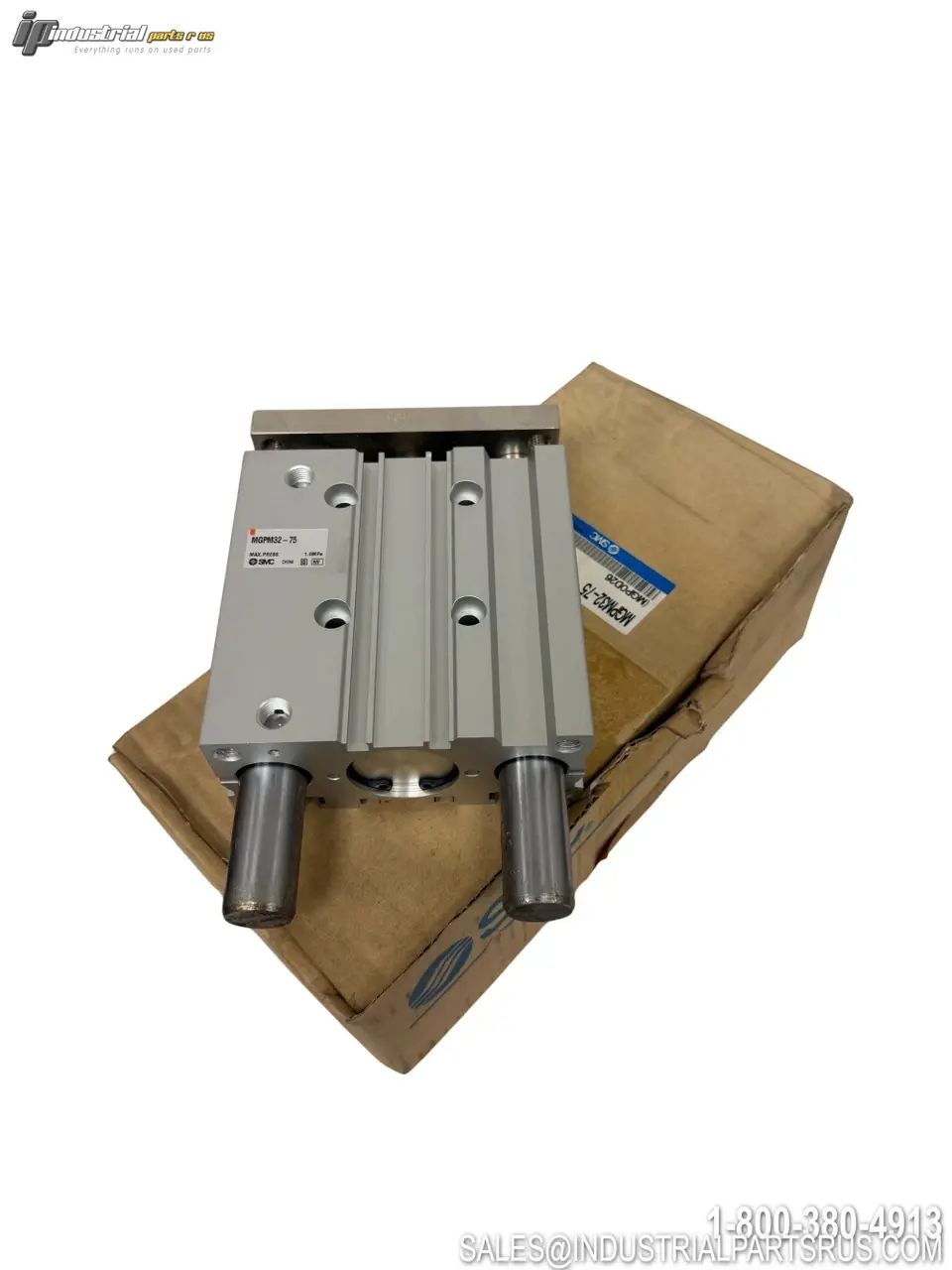

NEW SMC MGPM32-75
Overview
Description
The SMC MGPM32-75 is a compact guided pneumatic cylinder from the MGP series, designed for high side load applications in material handling, lifting and stopping operations. This cylinder utilizes an ultra-compact design by incorporating the cylinder body as part of the guide body, enhancing load bearing capacity as stroke length increases.
Specification
Value
Brand
SMC
Model/Part Number
MGPM32-75
Series
MGP
Cylinder Type
Compact Guide Cylinder
Bore Diameter
32 mm
Stroke Length
75 mm
Bearing Type
Slide Bearing
Action
Double-acting
Port Thread Type
Rc1/8"
Maximum Operating Pressure
145 psi (1.0 MPa)
Minimum Operating Pressure
17 psi (0.12 MPa)
Proof Pressure
218 psi (1.5 MPa)
Piston Speed
50-500 mm/s
Seal Material
NBR
Cushion Type
Rubber Bumper
Built-in Magnet
Yes
Switch Mounting
Magnetic field resistant auto switches compatible
Weight (approximate)
2.47 kg
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 4.00 LBS | 4.00 LBS |
|---|
SKU: AI1364
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 4.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: MGPM32-75
Shelf: B-15
Bore Diameter: 32 mm
Model: MGPM32-75
MPN: MGPM32-75
Type: Compact Cylinder
