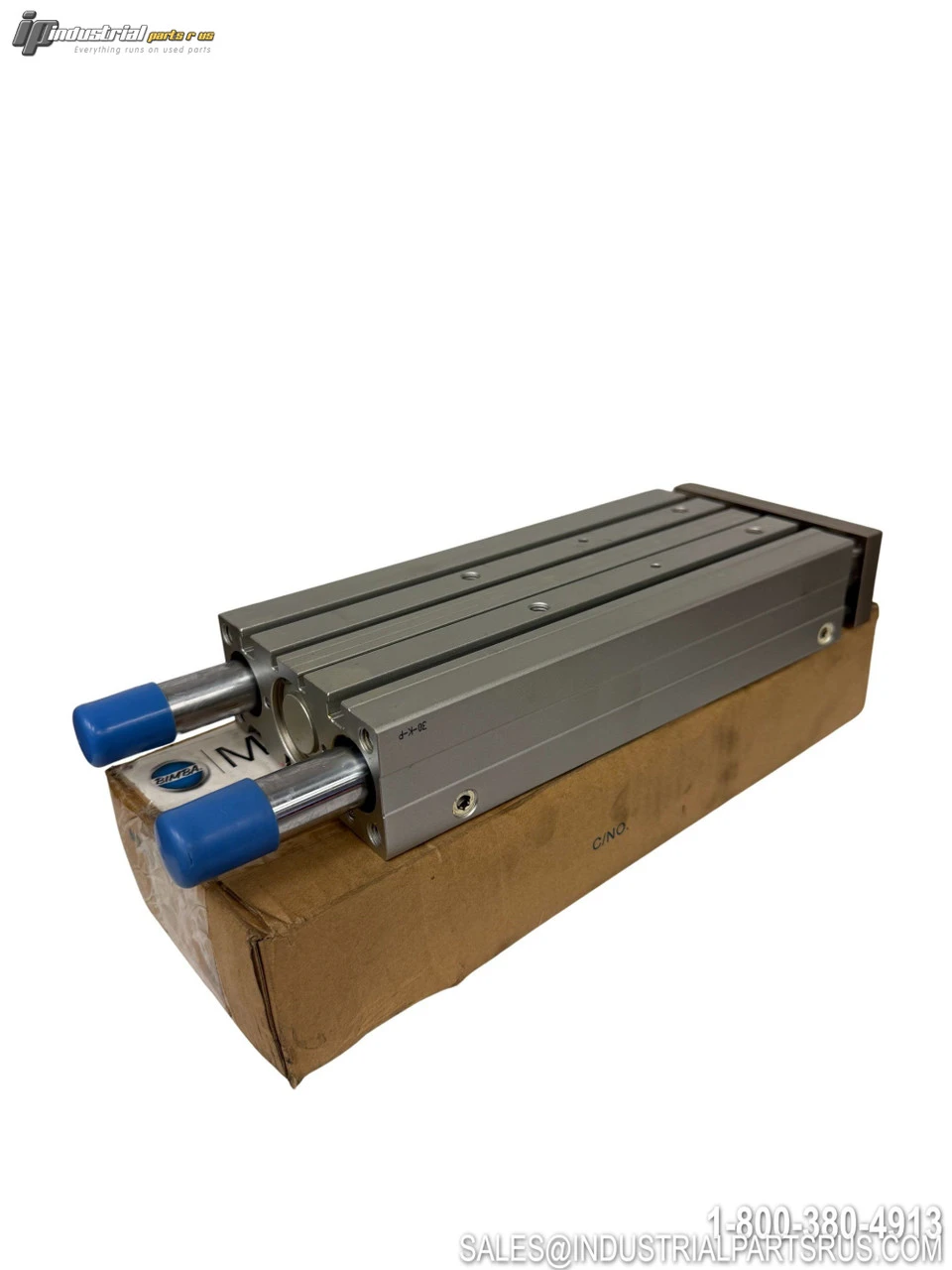

NEW BIMBA MTCM-32X200-S-T

The Bimba MTCM-32X200-S-T is a double-acting extruded thruster pneumatic cylinder from the MTCM series featuring a 32mm bore diameter and 200mm stroke length. This precision linear actuator incorporates a bronze bushing for smooth operation, built-in magnets for position sensing compatibility, and bumper cushioning for reliable performance in industrial automation applications.
Specification
Value
Brand
Bimba
Model/Part Number
MTCM-32X200-S-T
Series
MTCM Extruded Thruster
Bore Diameter
32mm
Stroke Length
200mm
Action Type
Double Acting
Bushing Type
Bronze Bushing
Port Size
1/8" NPT
Port Quantity
2
Pressure Range
18-142 psi
Proof Pressure
213 psi
Temperature Range
23-158°F (-5 to +70°C)
Cushion Type
Bumper
Built-in Magnet
Yes
Lubrication Required
No
Fluid Type
Air (Clean/Dry)
Non-Rotate Tolerance
0.08°
We warranty all items for 30 days from date of purchase.

SKU: AI1384
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 16.00 LBS
Width: 12.00
(in)
Height: 10.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Bimba
Part Number: MTCM-32X200-S-T
Shelf: K-61
Bore Diameter: 32 mm
Model: MTCM-32X200-S-T
MPN: MTCM-32X200-S-T
Type: Pneumatic Cylinder
