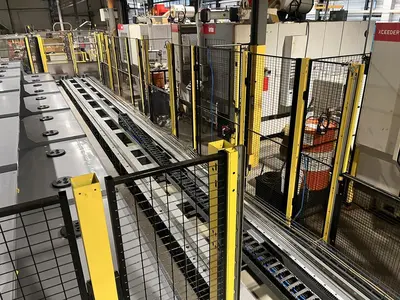

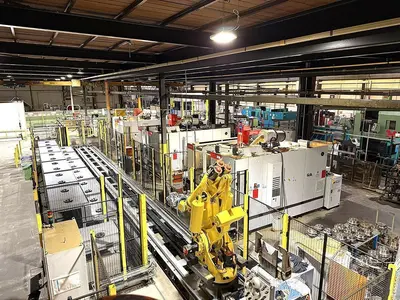

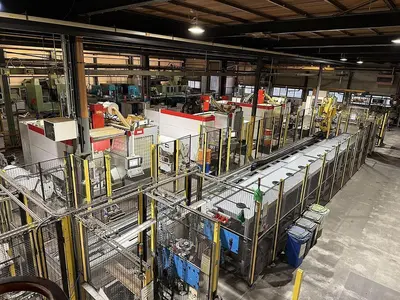

3x Breten 5-Axis Machining Centers with Fanuc Robot Loader

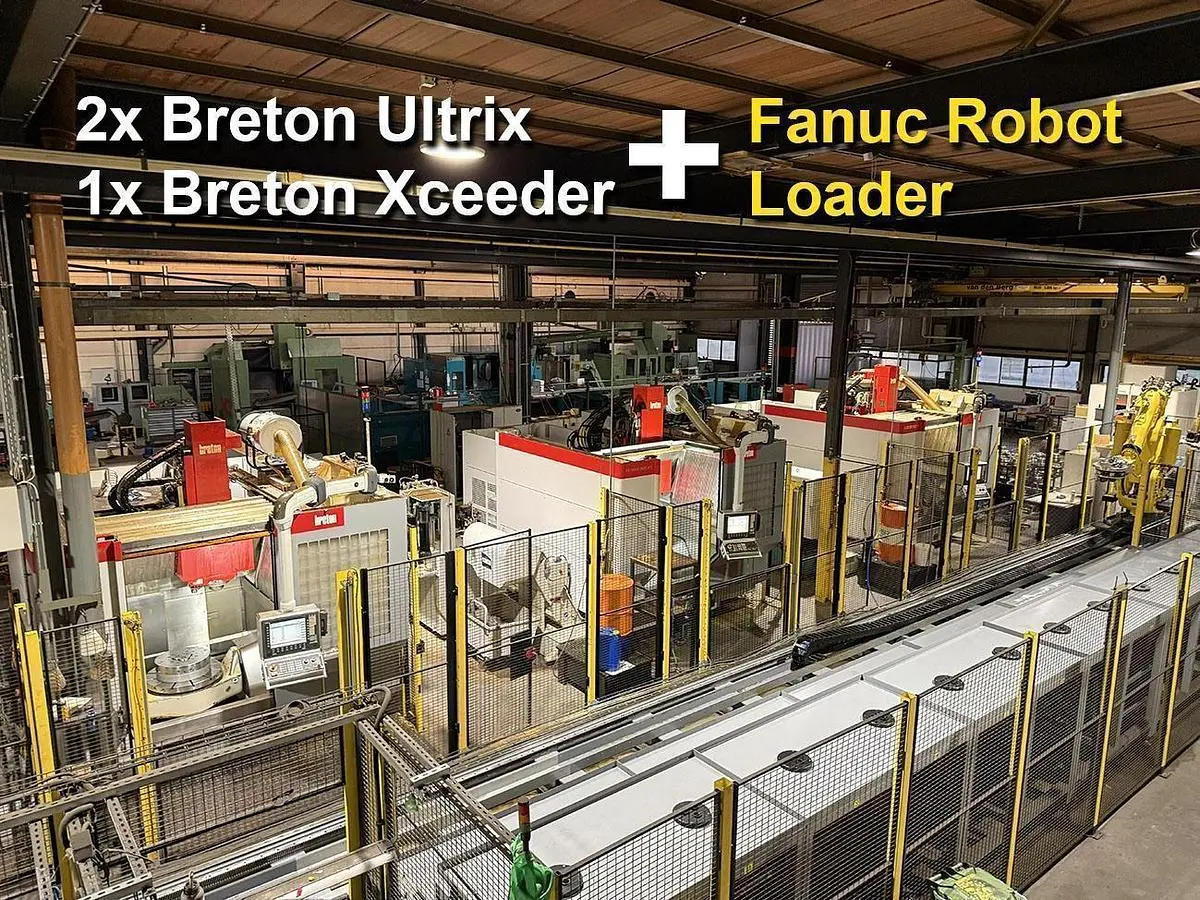

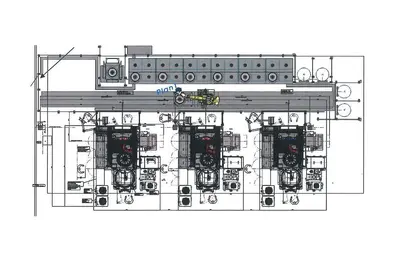

3 x Breton CNC 5-Axis Machining Centers + Fanuc Robot Loader

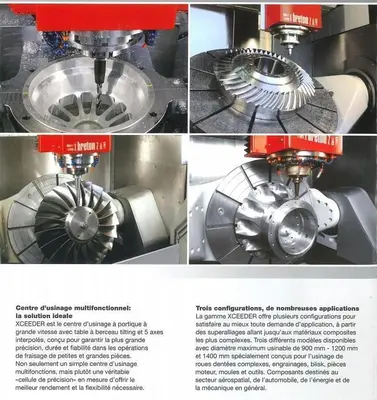

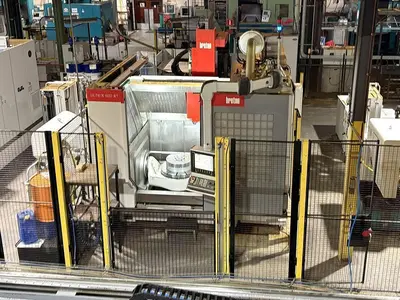

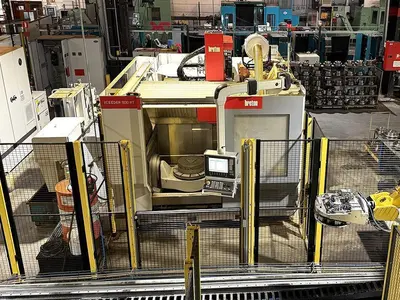

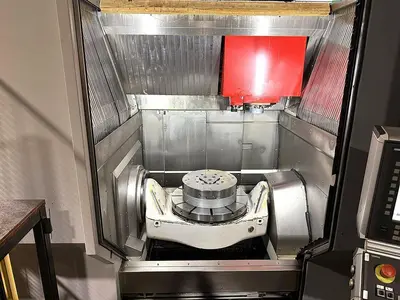

Breton Xceeder CNC 5-Axis Vertical Machining Center:
XCEEDER is a 5-axis interpolated moving machining center for high-speed milling. Specifically designed for applications ranging from complex gears and impellers to molds, dies, and tools, for projects in the aerospace, automotive, and power generation industries.

Options fitted to this machine:
1 - 40,000 rpm high-speed spindle
2 - table dia 700 mm with hydraulic clamping

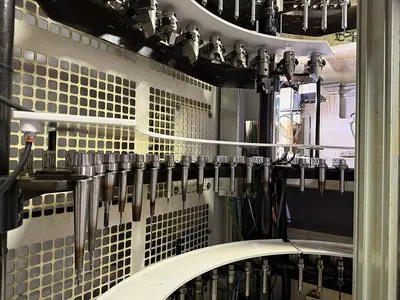

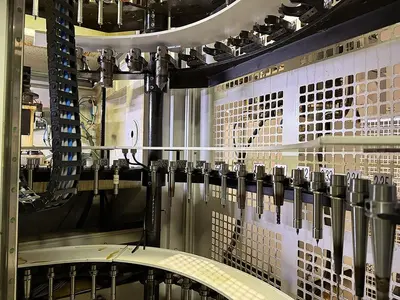

3 - Tool changer with 3-150 positions
4 - chip conveyor belt
5 - cooling system with recovery
6 - Coolant temperature control
7 - high pressure cooling (40 to 70 bar) by spindle
8 - smoke extraction system
9 - chip collection box
10 - Presetting system and tool integrity: laser and mechanical probe for measuring tools
11 - Renishaw measuring head

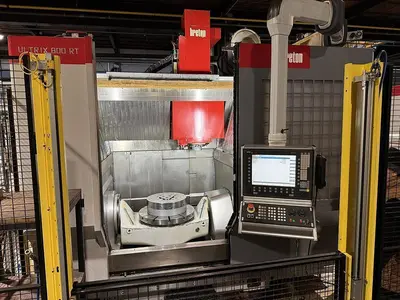

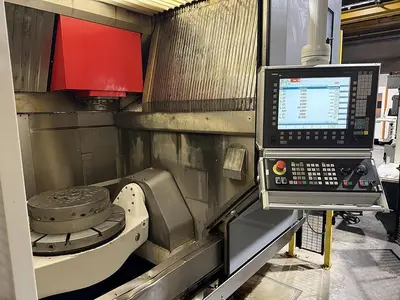

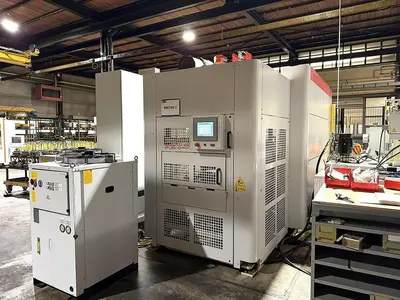

Breton Ultrix CNC 5-Axis Vertical Machining Center:
The Ultrix 800 RT is a multifunction machining center with 5 interpolated axes and a moving gantry design for high-speed milling, turning, grinding, drilling, tapping, finishing, deburring and roughing of complex parts.

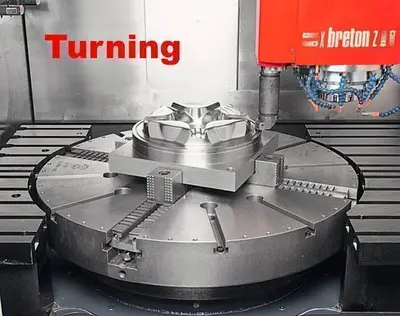

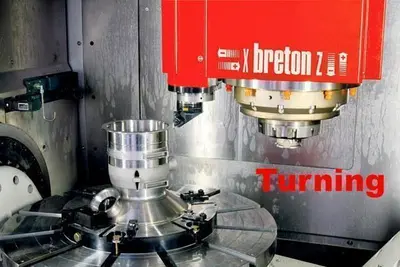

When used for turning > vertical lathe:
- Swivel range: 1100 mm
- maximum weight of the workpiece: 700 kg
- 40/30 kW on the table
- maximum torque on the table: 1500 Nm
- Maximum speed of the table: 1000 rpm!!
- hydraulic clamping on table

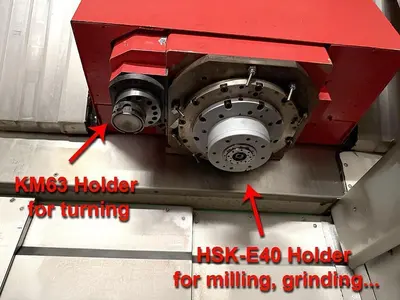

- tool taper for turning: KM63

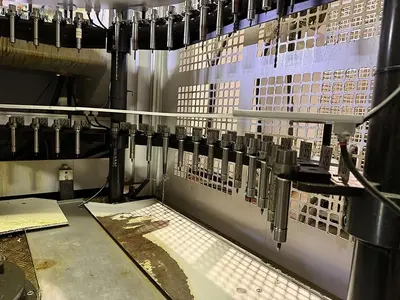

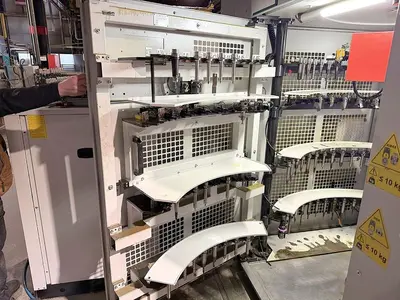

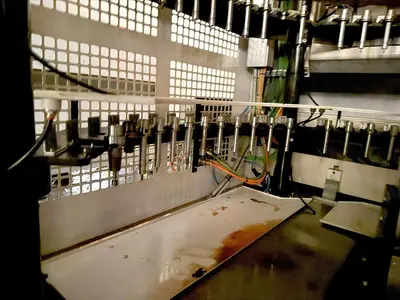

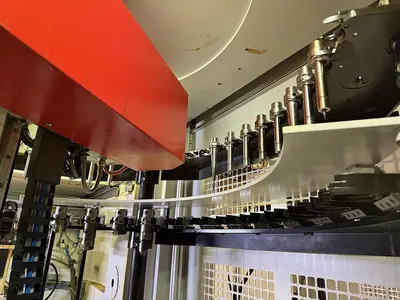

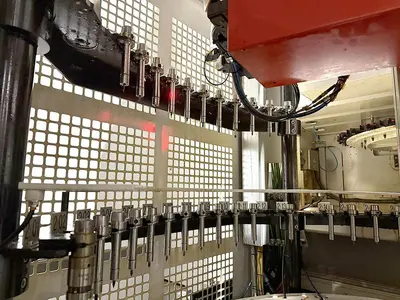

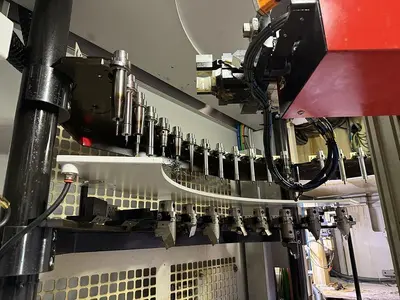

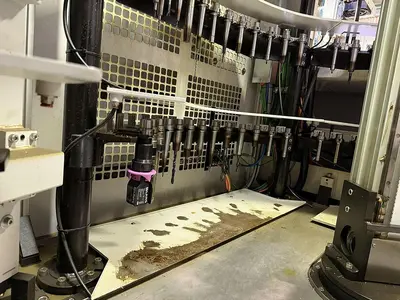

- Tool changer with 150 positions, of which 24 for turning.

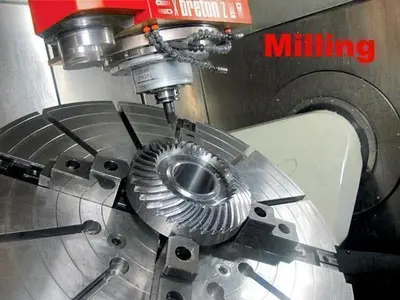

When used for milling, grinding, drilling, ... > machining center:
- X-axis: 800 mm
- Y-axis: 900 mm
- Z-axis: 600 mm
- A-axis: -30° / 110°
- C-axis: continuous
- maximum weight of the workpiece: 700 kg
- 55/40 kW on the spindle
- maximum torque on the spindle: 137/100 Nm
- maximum 18,000 revolutions per minute
- tool taper for milling: HSK-63

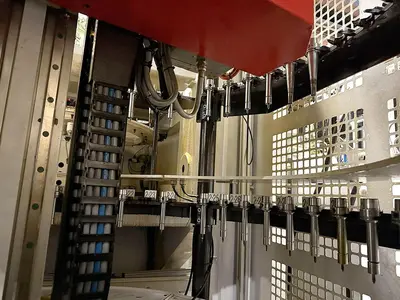

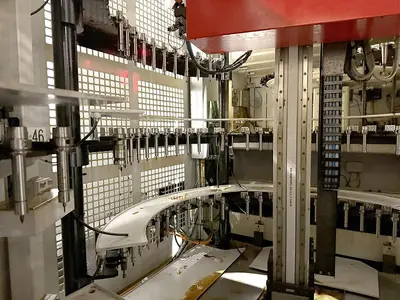

- Tool changer with 150 positions and 126 tool positions for milling, grinding and drilling

List of options mounted on the machine:

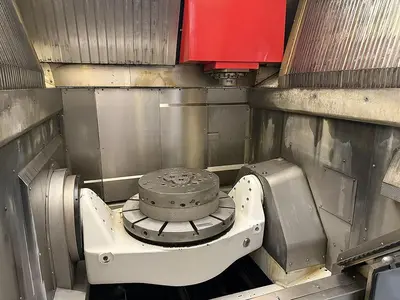

1 - table diameter 700 mm with hydraulic clamping

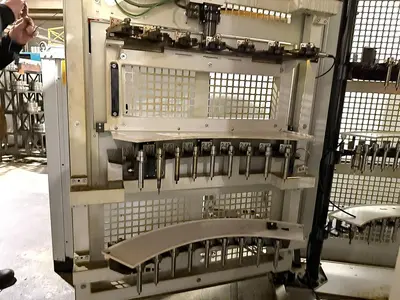

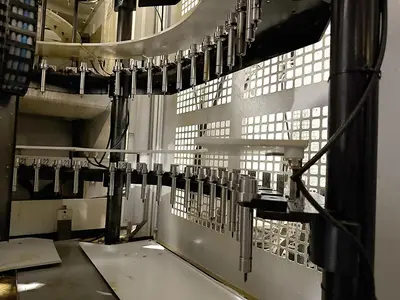

2- Tool changer with 150 positions
3 - chip conveyor belt
4 - cooling system with recovery
5 - Coolant temperature control
6 - high pressure cooling (40 to 70 bar) through spindle
7 - smoke extraction system
8 - Chip collection box
9 - Presetting System and Tool Integrity: Laser and Mechanical Probe for Measuring Instruments
10 - Renishaw probe

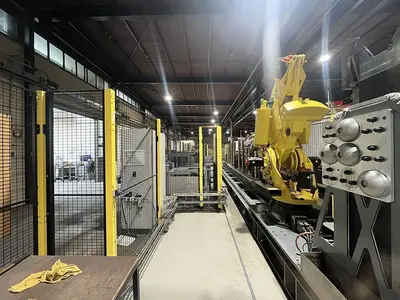

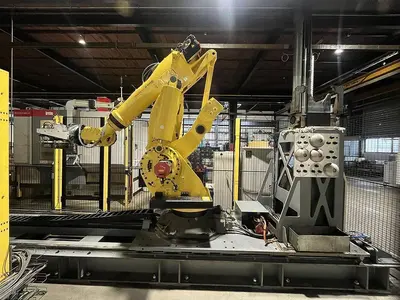

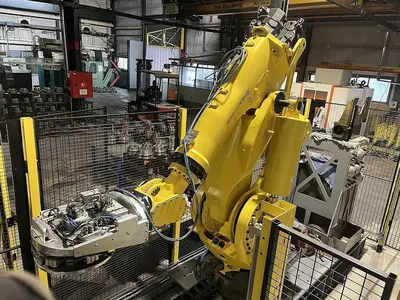

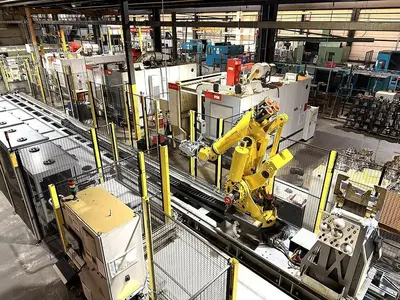

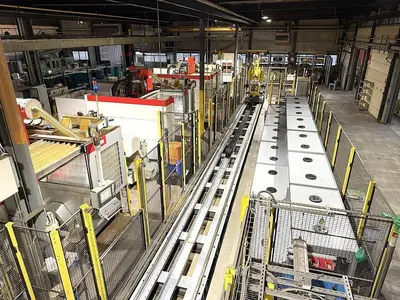

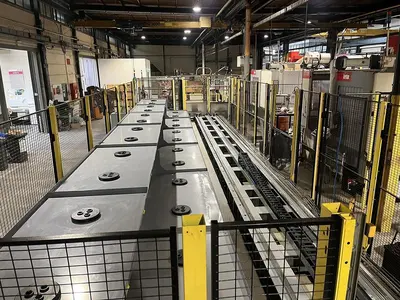

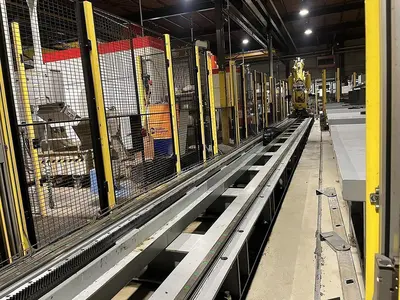

Fanuc M-900iB 700 kg Loading Robot:
