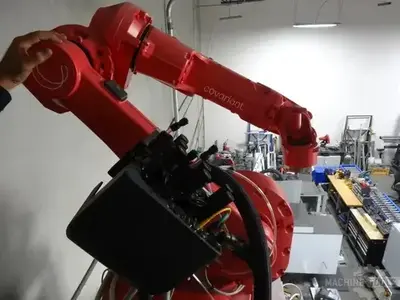

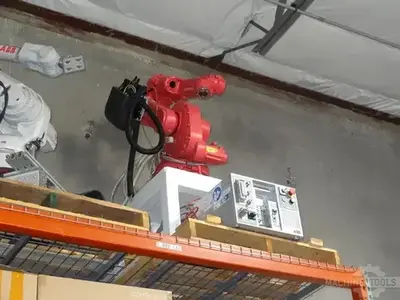

6-Axis Articulated Industrial Robot with Integrated Dressing (ID)
| # Axis | 6 | 6 |
| Payload | 12 kg | 26.5 lb |
| Horizontal Reach | 1.8 m | 72.835" |
Request a Quote
Add to Cart
Payload: 6 Kg
Reach: 1550 mm
Repeatability: +/-0.02 mm
Path Repeatability: 0.05 mm
Robot Weight: 257 Kg
Robot Height: 1392 mm
Robot Base: 484 mm x 648 mm
Protection: IP67 (Axis 4: IP40)
Mounting: Floor / Tilted / Inverted
Control: IRC5 Single Cabinet/Panel Mounted/Compact or OmniCore C30/C90XT/V250XT/V400XT
Axis 1: +180°/-180° @180°
Axis 2: +150°/-90° @180°
Axis 3: +79°/-238° @180°
Axis 4: +/-175° @320°
Axis 5: +/-120° @360°
Axis 6: +/-400° (default) @500°
Arm Load: 15+15 Kg
Applications: Arc Welding / Machine Tending / High-Density Cell Production
