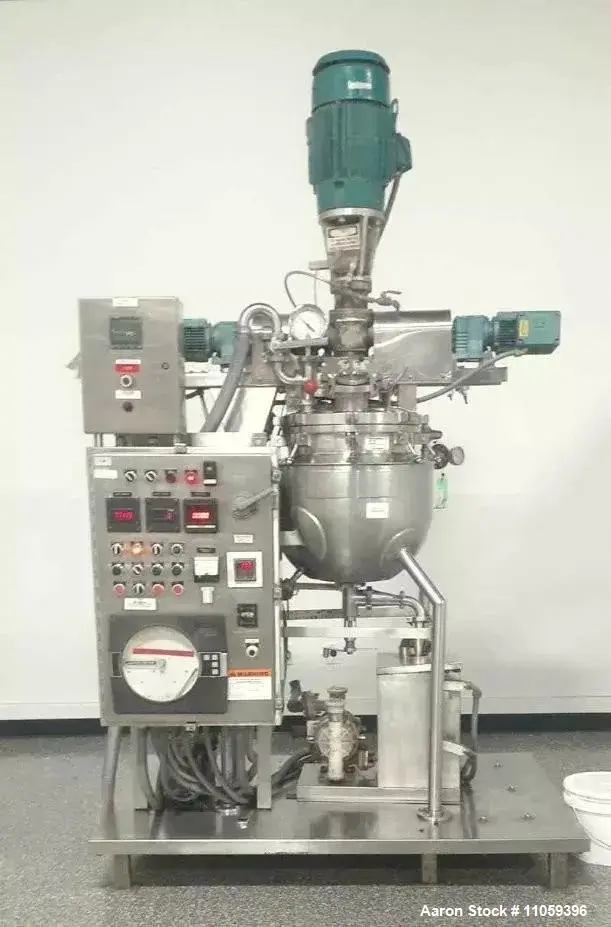

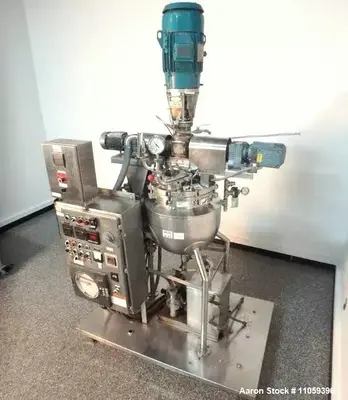

USED J C PARDO & SONS 50 LITER

13 Gallon (50 Liter) Agi-Mixer Triple Motion Greerco Jacketed Vacuum Kettle. 316 Stainless Steel. Has counter rotating sweep mixer with scrapers and high shear mixer. Internal rated Full Vacuum. Jacket rated 40 PSI @ 300 Deg.F..Top Drive motor Disconnected for removal. Test results: The previous owner reports that all components of the homogenizer are fully functional. Fully tested with H2O. The homogenizer and inner and outer paddles work as do their RPM meters. The cover lifting hydraulics is fully functional. The cover lift mechanism is functional as well as the homogenizer and the two blades. The jacket was pressure tested and vessel was vacuum tested - no leaks. The chart recorder is out of service as well as the hour meter. The light bulb that gave me trouble in the video was replaced.Note: The outer paddles must be jogged to index, (amber light), before the cover will open. The limit switch with long arm to contact tank, must be in the correct position for lifting and for paddle operation. Last used in sanitary cosmetics facility. Video of unit running available.

Used Equipment Facts About This Machine
Manufacturer: J.C. Pardo
Equipment Type: Jacketed Vacuum Kettle / Mixer
Capacity: 13 Gallons (50 Liters)
Material: 316 Stainless Steel
Condition: Used
Previous Use: Sanitary Cosmetics Facility

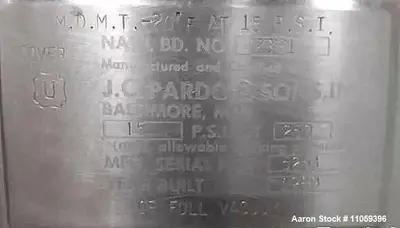

Certification: National Board Rated

Description
Used J.C. Pardo 13 gallon (50 liter) jacketed and vacuum-rated kettle designed for high-performance mixing, homogenization, and thermal processing in sanitary environments. Constructed from 316 stainless steel, this unit is ideal for cosmetics, pharmaceutical, and specialty chemical applications.

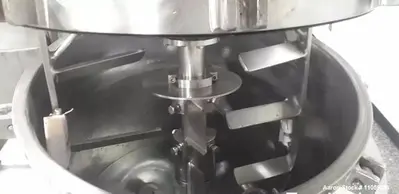

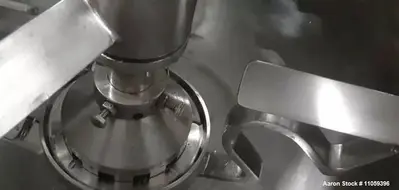

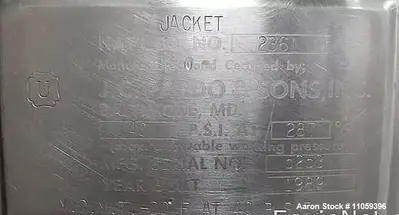

Equipped with a Greerco Agi-Mixer triple motion system, the kettle features a counter-rotating sweep mixer with scrapers and an integrated high shear homogenizer for superior mixing efficiency and product uniformity. The vessel is rated for full vacuum internally, with a jacket rated to 40 PSI at 300°F, enabling precise heating and cooling control.
The system has been fully tested with water—jacket pressure tested and vessel vacuum tested—with no leaks observed. The homogenizer, inner and outer paddles, RPM meters, and hydraulic cover lifting system are all functional. The top drive motor has been disconnected for removal.
Notes:

Chart recorder and hour meter are not operational
Outer paddles must be jogged (amber light) to index before opening cover
Limit switch must be properly positioned for operation and lifting

Specifications

Manufacturer: J.C. Pardo
Capacity: 13 gallons (50 liters)
Type: Jacketed vacuum kettle with triple motion mixing
Material: 316 stainless steel
Internal Rating: Full vacuum
Jacket Rating: 40 PSI @ 300°F
Agitation System:

Counter-rotating sweep mixer with scrapers
High shear homogenizer (Greerco)
Inner and outer paddles

Cover: Hydraulic lift system (functional)
Controls: RPM meters operational
Certification: National Board rated
Condition Notes:

Top drive motor disconnected
Chart recorder not functional
Hour meter not functional

Applications
Ideal for vacuum mixing, emulsification, and heating processes in sanitary and high-purity production environments.

Products This Equipment Would Be Used For

Cosmetic creams and lotions
Emulsions
Ointments
Gels
Pharmaceutical formulations
Personal care products
Specialty chemicals
Adhesives
Pastes
High-viscosity liquids
