USED SOUTHBEND/JOHNSON #60 BG AC

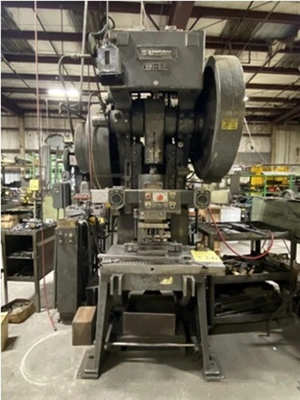

USED "SOUTHBEND/JOHNSON" SINGLE CRANK O.B.I. BACKGEARED PUNCH PRESS
EQUIPPED WITH AIR CLUTCH & AIR BRAKE
MODEL #60 BG AC
SERIAL #76011
CAPACITY NEAR BOTTOM OF STROKE 60 TONS
AREA OF BED 32" x 21"
WIDTH OF OPENING THROUGH BACK 16"
DEPTH OF THROAT CENTER OF SLIDE TO FRAME 12"
WIDTH OF SLIDE ACROSS EARS 11"
SHUT HEIGHT BED TO SLIDE (STROKE DOWN, ADJ. UP) 12-1/2"
STROKE 4"
ADJUSTMENT OF SLIDE 3-1/2"
SPEED UP TO 46 STROKES PER MINUTE
MOTOR 5 HP/220-440/3/60cy
WEIGHT 9,900 LBS. (APPROX.)

EQUIPPED WITH:
3" BOLSTER PLATE
CENTRAL LUBRICATION
AIR CLUTCH, AIR BRAKE
ELECTRICAL CONTROLS
AIR COUNTER BALANCE
FLYWHEEL GUARD
