| Weight | 12,500 LBS. APPROX. | 12,500 LBS. APPROX. |

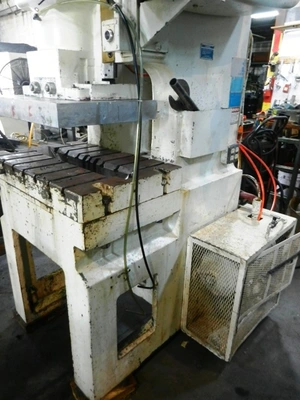

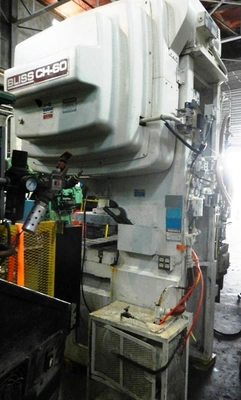

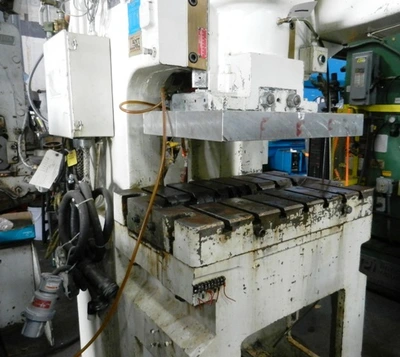

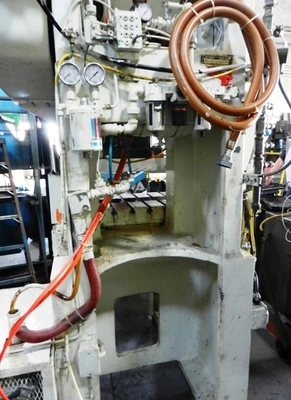

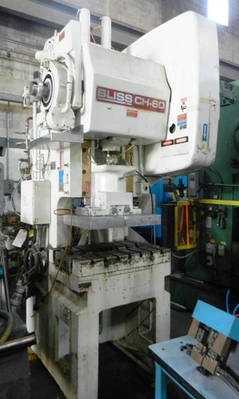

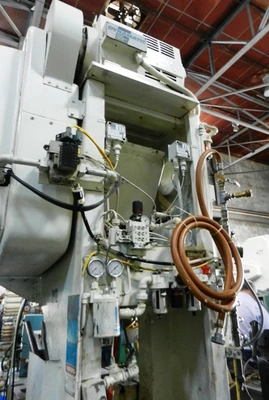

USED "BLISS" MECHANICAL C FRAME POWER PUNCH PRESS, HIGH SPEED
MODEL CH60
SERIAL # H71688
YEAR OF MANUF. 1998
CAPACITY 60 TONS
STROKE 2"
SPEED 250 – 500 STROKES PER MINUTE
SHUT HEIGHT, BED TO SLIDE (STROKE UP, ADJ. DOWN) 15" ON BED
ADJUSTMENT OF SLIDE 3"
SLIDE AREA 17" (L-R) x 12" (F-B)
BED AREA 32" x 21"
OPENING THRU THE BED 7" x 12"
OPENING THRU FRAME 15"
THROAT DEPTH, CENTER OF SLIDE TO FRAME 12"
MOTOR 15 H.P. /440/3PH/60cy (VARIABLE SPEED)
WEIGHT 12,500 LBS. APPROX.
EQUIPPED WITH:
AIR CLUTCH/AIR BRAKE/AIR COUNTER BALANCE
BOLSTER PLATE 4"
CENTRAL LUBE
FLYWHEEL GUARDS
ELECTRICAL/PNEUMATIC CONTROLS
