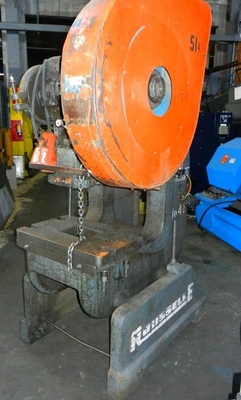

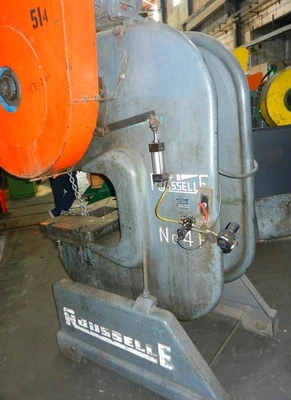

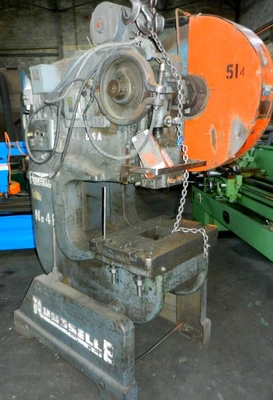

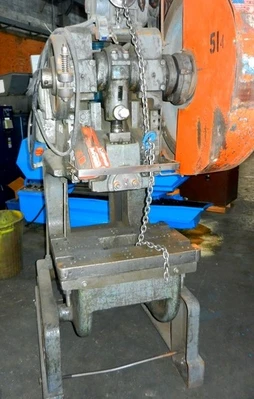

USED "ROUSSELLE" DEEP THROAT MECHANICAL POWER PUNCH
PRESS AIR ACTUATED O.B.I. TYPE
MODEL 4F
SERIAL # EF 8476
CAPACITY 40 TONS
STROKE 3"
SHUT HEIGHT, BED TO SLIDE (STROKE UP, ADJ. DOWN) 12"
ADJUSTMENT OF SLIDE 3"
BED AREA 16" x 26"
OPENING THRU THE BED 10" x 14"
OPENING THRU FRAME 15"
THROAT DEPTH, CENTER OF SLIDE TO FRAME 18"
STROKES PER MINUTE 105
MOTOR 3 H.P./220-460/3PH/60cy
WEIGHT 4,350 LBS. (APPROX.)
EQUIPPED WITH:
AIR ACTUATED CLUTCH
REMOTE PEDAL
2-1/2" BOLSTER PLATE
FLYWHEEL GUARDS
ELECTRICAL CONTROLS
