USED FEDERAL #44

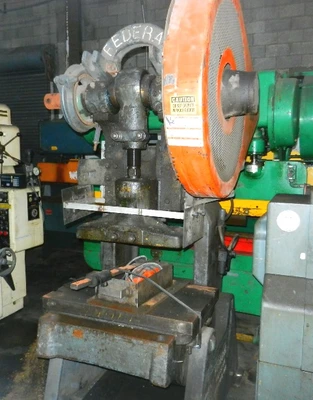

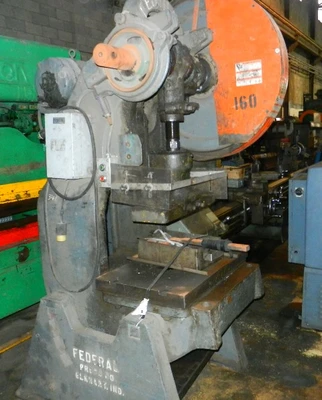

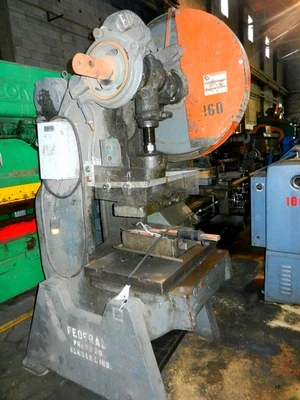

USED "FEDERAL" O.B.I. MECHANICAL POWER PUNCH PRESS
CAPACITY 46 TONS
MODEL #44
SERIAL # 44-554
STROKE 6"
SHUT HEIGHT, BED TO SLIDE (STROKE UP, ADJ. DOWN) 10"
ADJUSTMENT OF SLIDE 3"
ROUND PUNCH SHANK HOLE 1-9/16"
BED AREA 21-1/2" x 34"
OPENING THRU THE BED 7" x 12", ROUND 10"
OPENING THRU THE FRAME 21"
THROAT DEPTH, CENTER OF SLIDE TO FRAME 12"
STROKES PER MINUTE 60
MOTOR 5 H.P./220-440/3/60cy
WEIGHT 7,500 LBS. (APPROX.)

EQUIPPED WITH:
2-1/2" BOLSTER PLATE
AIR ACTUATED CLUTCH
ELECTRICAL CONTROLS
FLYWHEEL GUARD
