| Weight | 3,750 LBS. (APPROX.) | 3,750 LBS. (APPROX.) |

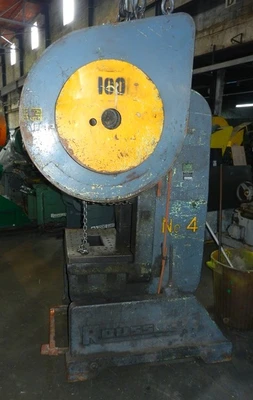

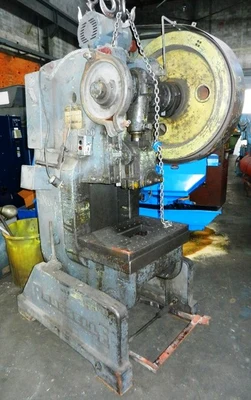

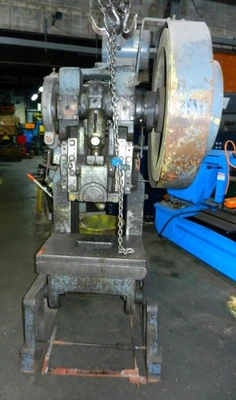

USED "ROUSSELLE" MECHANICAL POWER PUNCH PRESS O.B.I. TYPE
MODEL 4
SERIAL # EAS 9563
CAPACITY 40 TONS
STROKE 3"
SHUT HEIGHT, BED TO SLIDE (STROKE UP, ADJ. DOWN) 12"
ADJUSTMENT OF SLIDE 3"
BED AREA 16" x 26"
OPENING THRU THE BED 10" x 14"
OPENING THRU FRAME 15"
THROAT DEPTH, CENTER OF SLIDE TO FRAME 9"
STROKES PER MINUTE 105
MOTOR 3 H.P./220-460/3PH/60cy
WEIGHT 3,750 LBS. (APPROX.)
EQUIPPED WITH:
1-3/4" BOLSTER PLATE
FLYWHEEL GUARDS
ELECTRICAL CONTROLS
