USED BRUDERER BSTA-30

Florida, United States

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

598Listings|6Followers
Overview
Specs
Weight
7,000 LBS. (APPROX.)

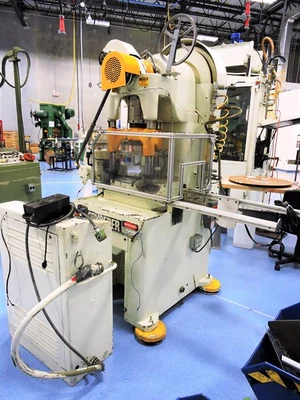

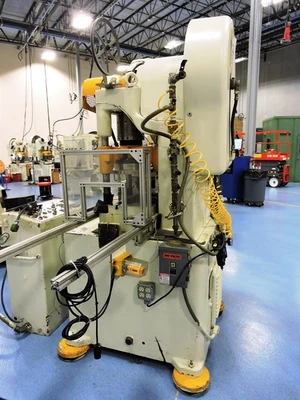

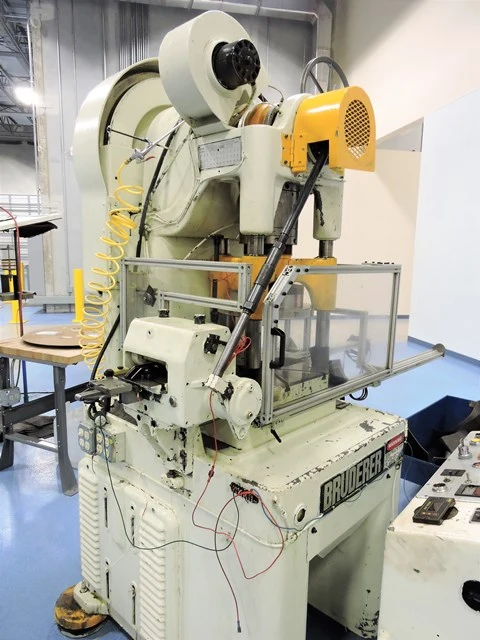

USED "BRUDERER" PRECISION HIGH SPEED POWER PUNCH PRESS
MODEL BSTA-30
30 METRIC TONS
ADJUSTABLE STROKE 5/8" to 1-9/16" (16mm – 40mm)
MAX. SHUT HEIGHT 9.25"
RAM ADJUSTMENT 1-5/8"

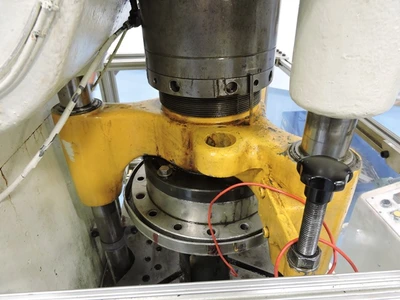

RAM AREA 12" DIAMETER
DISTANCE BETWEEN POST 12" x 13"
OPENING THRU FRAME 12"
BED AREA 21-1/2" x 12"
HOLE THRU BED 12-1/2" x 4"
SPEED (VARIABLE) 100 to 600 S.P.M.
AIR CLUTCH & BOLSTER PLATE 2-3/8"
MOTOR 6 HP/230-460/3PH/60
WEIGHT 7,000 LBS. (APPROX.)
DIMENSIONS 42" x 52" x 86"

EQUIPPED WITH:

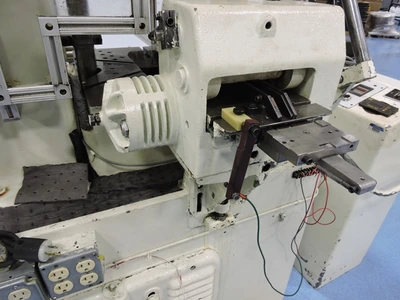

AUTOMATIC FEEDER
CENTRAL LUBRICATION

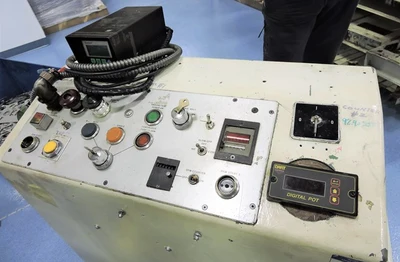

ELECTRIC CONTROLS
