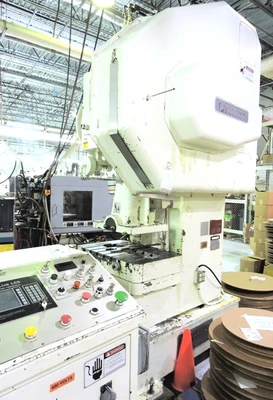

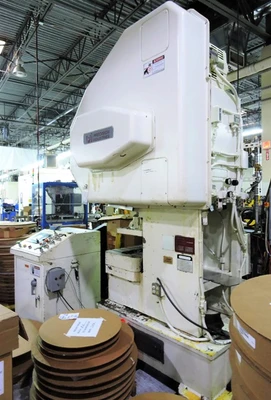

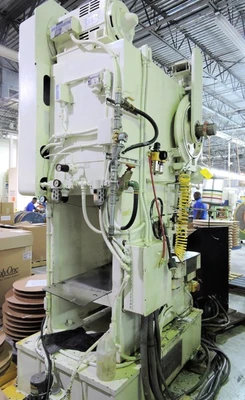

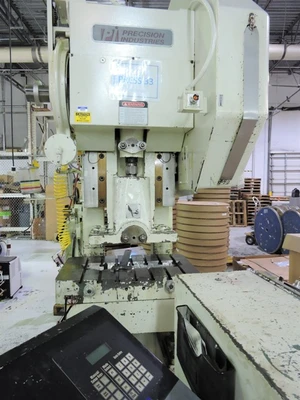

USED PRECISION IND. 60 PHS

USED "PRECISION IND." MECHANICAL POWER PUNCH PRESS
O.B. TYPE HIGH PRECISION, HIGH SPEED GAP TYPE
MODEL 60 PHS
SERIAL # 60 PHS-PN0156
CAPACITY 60 TONS
STROKE 2"
SHUT HEIGHT, BED TO SLIDE (STROKE UP, ADJ. DOWN) 14"
ADJUSTMENT OF SLIDE 2.5"
SLIDE AREA 21" (L-R) x 16" (F-B)
SLIDE HOLE 2" DIA. x 3.5" DEEP
BED AREA 34" x 21"
OPENING THRU THE BED 7" x 12"
OPENING THRU FRAME 13-1/2"
THROAT DEPTH, CENTER OF SLIDE TO FRAME 11.5"
MOTOR 10 H.P. /440/3PH/60cy
WEIGHT 12,500 LBS. APPROX.

EQUIPPED WITH:

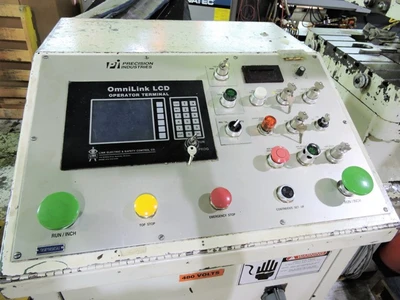

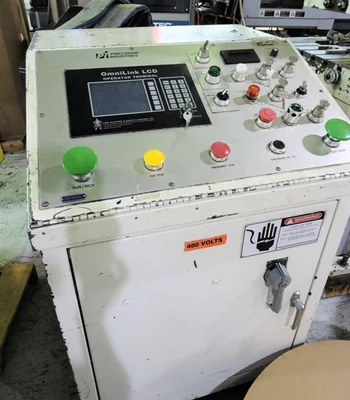

"OMNILINK" CONTROLS
BOLSTER PLATE 2-7/8"

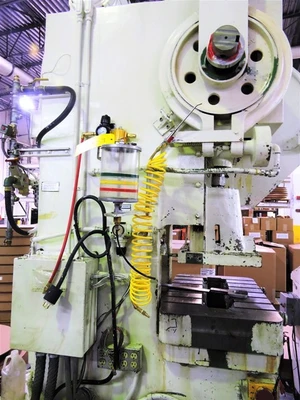

CENTRAL LUBE
FLYWHEEL GUARDS
ELECTRICAL/PNEUMATIC CONTROLS
