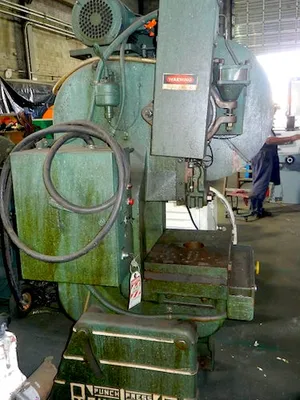

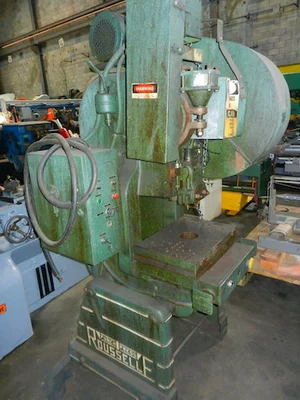

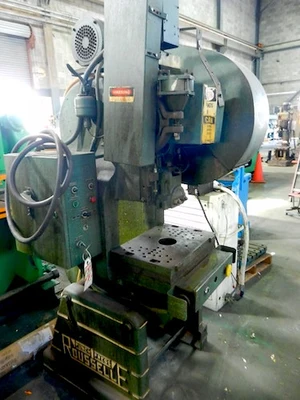

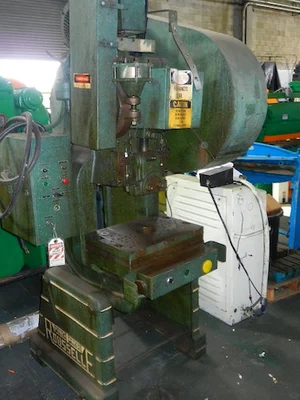

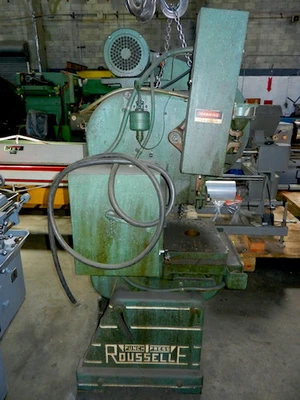

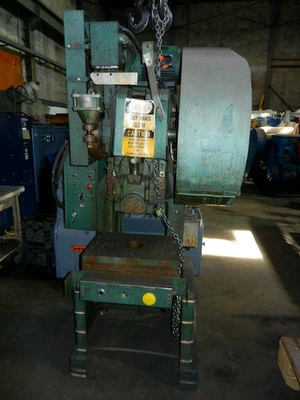

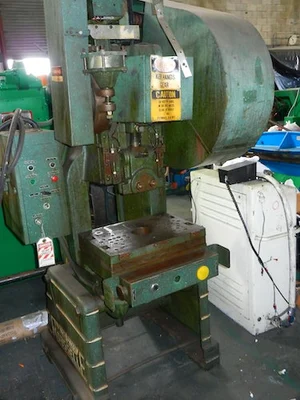

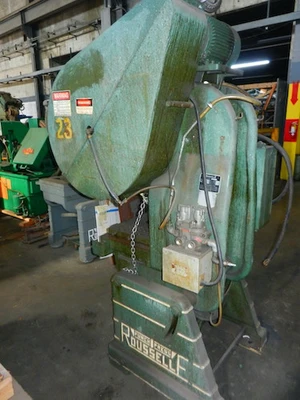

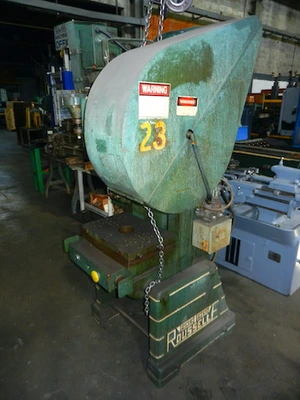

USED "ROUSSELLE" SINGLE CRANK O.B.I. PUNCH PRESS
EQUIPPED WITH AIR CLUTCH & AIR BRAKE
MODEL #3 - SERIAL # 17962
CAPACITY NEAR BOTTOM OF STROKE 25 TONS
AREA OF BED 14" x 20"
OPENING IN BED 7" x 12" RECTANGULAR
-----------------------10" ROUND
WIDTH OF OPENING THROUGH BACK 13"
DEPTH OF THROAT CENTER OF SLIDE TO FRAME 7-1/2"
WIDTH OF SLIDE ACROSS EARS 8-1/4"
SHUT HEIGHT BED TO SLIDE (STROKE DOWN, ADJ. UP) 10-3/4"
STROKE 2"
ADJUSTMENT OF SLIDE 2"
SPEED UP TO 135 STROKES PER MINUTE
MOTOR 2 HP/230-460/3/60cy
EQUIPPED WITH:
3" BOLSTER PLATE
CENTRAL LUBRICATION
AIR CLUTCH
AIR BRAKE
ELECTRICAL CONTROLS
FLYWHEEL GUARD
