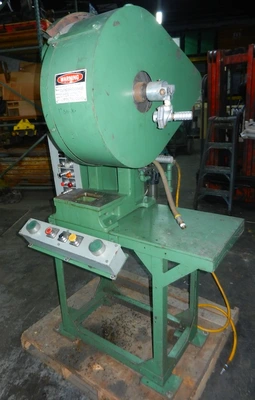

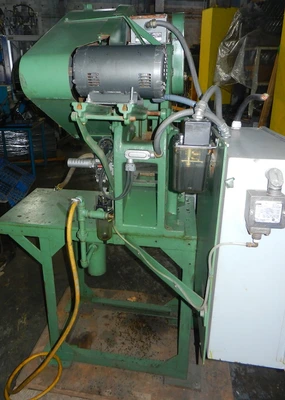

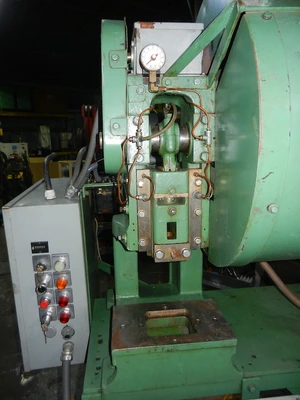

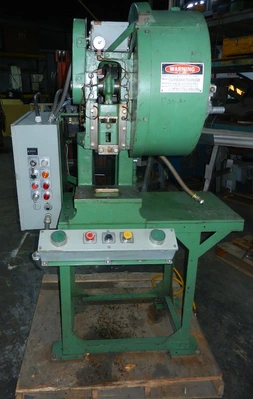

USED "PERKINS" SINGLE CRANK O.B.I. PUNCH PRESS
EQUIPPED WITH AIR CLUTCH & AIR BRAKE
MODEL #2-A-7
SERIAL # 37054
CAPACITY NEAR BOTTOM OF STROKE 10 TONS
AREA OF BED 8" x 12-1/2"
OPENING IN BED 5" x 7" RECTANGULAR
WIDTH OF OPENING THROUGH BACK 5-1/2"
DEPTH OF THROAT CENTER OF SLIDE TO FRAME 7"
SHUT HEIGHT BED TO SLIDE (STROKE DOWN, ADJ. UP) 7-1/2"
STROKE 1-1/2"
ADJUSTMENT OF SLIDE 3/4"
SHANK SIZE 1"
SPEED UP TO 185 STROKES PER MINUTE
MOTOR 3 HP/208-220-440/3/60cy
EQUIPPED WITH:
3/4†BOLSTER PLATE
ELECTRIC CENTRAL LUBRICATION
AIR CLUTCH & AIR BRAKE

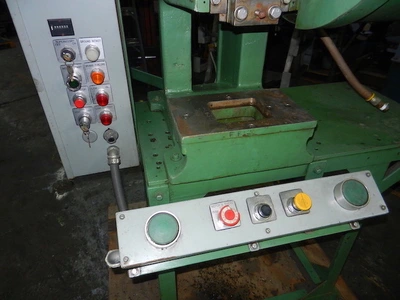

ELECTRICAL CONTROLS
FLYWHEEL GUARD
