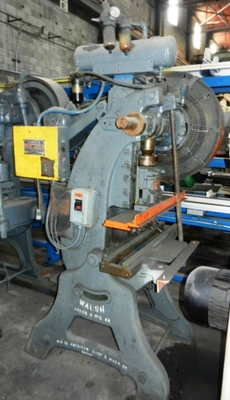

USED "WALSH" POWER PUNCH PRESS
O.B.I. TYPE, AIR CLUTCH, AIR BRAKE
MODEL 24
S/N: 9902
CAPACITY 24 TONS
STROKE 1-1/4"
SHUT HEIGHT, BED TO SLIDE (STROKE DOWN, ADJ. UP) 10"
ADJUSTMENT OF SLIDE 2"
BED AREA 11" x 21"
OPENING THRY THE BED 6" x 9"
OPENING THRU FRAME 9"
THROAT DEPTH, CENTER OF SLIDE TO FRAME 7"
MOTOR 3HP/220-440/3/PH/60cy
EQUIPPED WITH: CENTRAL LUBRICATION,
ELECTRICAL CONTROLS, RUNNING RAILS ALONG SIDE
THE MACHINE & FLYWHEEL GUARD.
