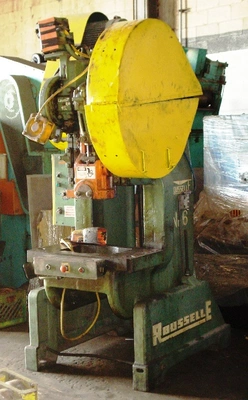

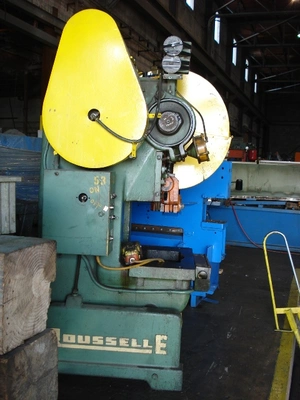

USED "ROUSSELLE" SINGLE CRANK O.B.I. BACKGEARED PUNCH PRESS
EQUIPPED WITH AIR CLUTCH & AIR BRAKE
MODEL #6
SERIAL # 19478
CAPACITY NEAR BOTTOM OF STROKE 60 TONS
AREA OF BED 17" x 30"
OPENING IN BED 10-1/2" x 15-1/2" RECTANGULAR
----------------------------------12-1/2" ROUND
WIDTH OF OPENING THROUGH BACK 16"
DEPTH OF THROAT CENTER OF SLIDE TO FRAME 11"
WIDTH OF SLIDE ACROSS EARS 12"
SHUT HEIGHT BED TO SLIDE (STROKE DOWN, ADJ. UP) 11-1/2"
STROKE 4"
ADJUSTMENT OF SLIDE 3-1/2"
SPEED UP TO 50 STROKES PER MINUTE
MOTOR 5 HP/220-440/3/60cy
WEIGHT 7,500 LBS. (APPROX.)
EQUIPPED WITH: CENTRAL LUBRICATION, AIR CLUTCH,
AIR BRAKE, ELECTRICAL CONTROLS & FLYWHEEL GUARD
